Moore & Wright MWT-3200 Motorised Ultrasonic Hardness Tester
SKU:Code: MWT-3200
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- brand Moore & Wright

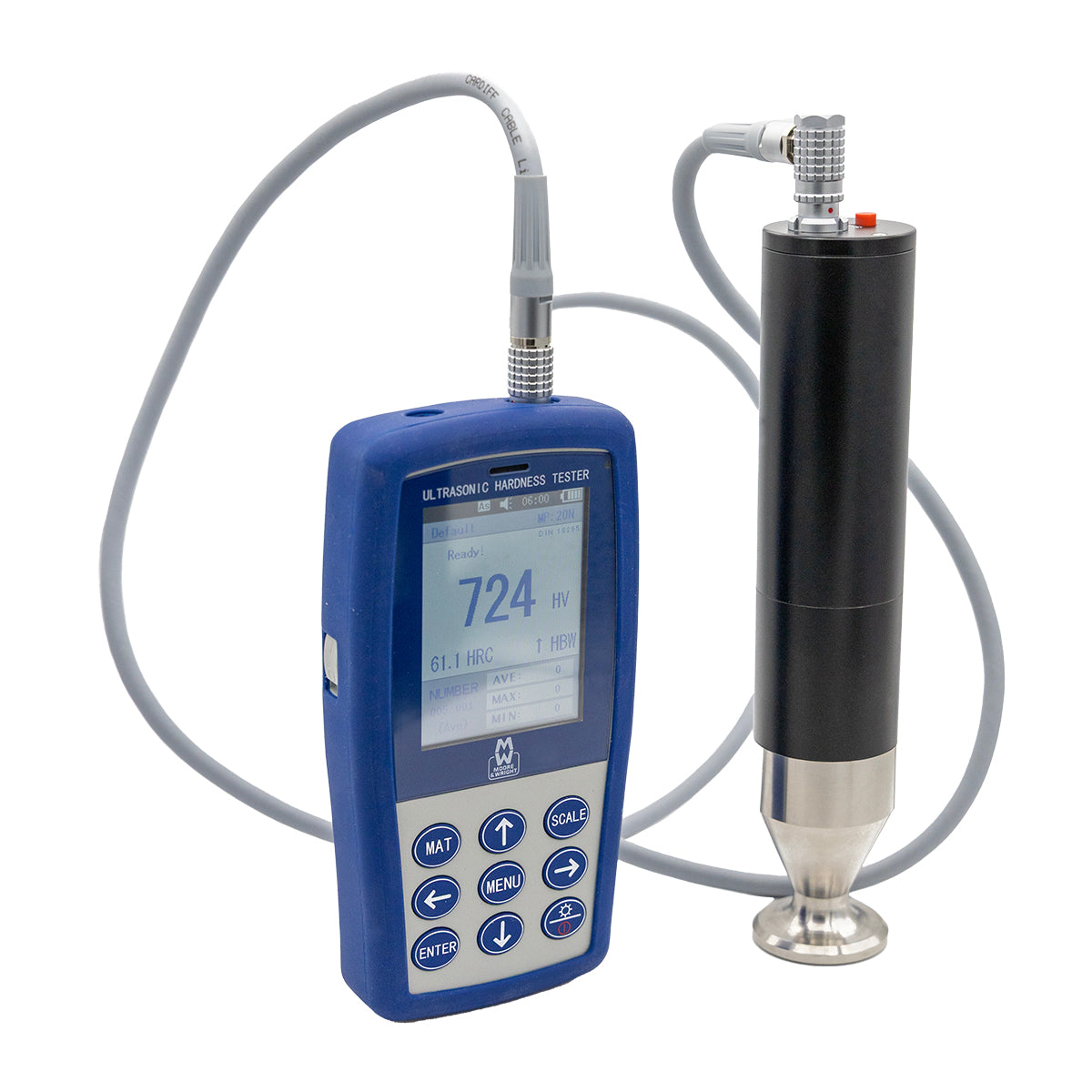

The MWT-3200 is a handheld Hardness Tester which uses the Ultrasonic Contact Impedance method to accurately measure material hardness with no visible indentation mark. Featuring one-touch operation, the motorised probe applies a force of 20N with the diamond Vickers indenter for results in 6 seconds with an accuracy of ±3%HV. Automatic testing with the motorised probe removes operator influence and improves repeatability of results. The magnetic base allows for stable, hands-free measurements eliminating the risk of operator handshake and reducing hand strain from repetitive measurements. A large colour display shows results in (HRC), Vickers (HV), Brinell (HBW), Rockwell A (HRA), Rockwell B (HRB) or Megapascals (MPa) with data storage of up to 1000 values. Choose to report individual results or an average from a set of readings. Selectable languages of English, French, Spanish, German, Italian and Chinese.
- Large 3.2" colour display with configurable brightness control
- Multiple units displayed simultaneously
- Menu for configuration and calibration
- Hardness scales: Rockwell C (HRC), Vickers (HV), Brinell (HBW), Rockwell A (HRA), Rockwell B (HRB), Megapascals (MPa)
- Measuring ranges: HRC: 20-68, HV:100-1500, HBW: 76-650, HRA:60-85, HRB:55-100
- Accuracy: HR: ±1.5%HR, HV: ±3%HV, HBW: ±3%HBW
- Resolution: HR:0.1, HV:1, HBW:1, MPa:1
- Configurable averaging over user defined number of measurements
- Data storage of up to 1000 values
- Magnetic base for stable hand-free measurements
- Languages: English, French, Spanish, German, Italian and Chinese
- Internal battery, rechargeable via cable and adapter supplied, 10 hours between charges
- Standards: ASTM A1038-2017; DIN50159-2009; GB/T 34205-2017
- Supplied with a calibrated test piece in a rigid plastic case
