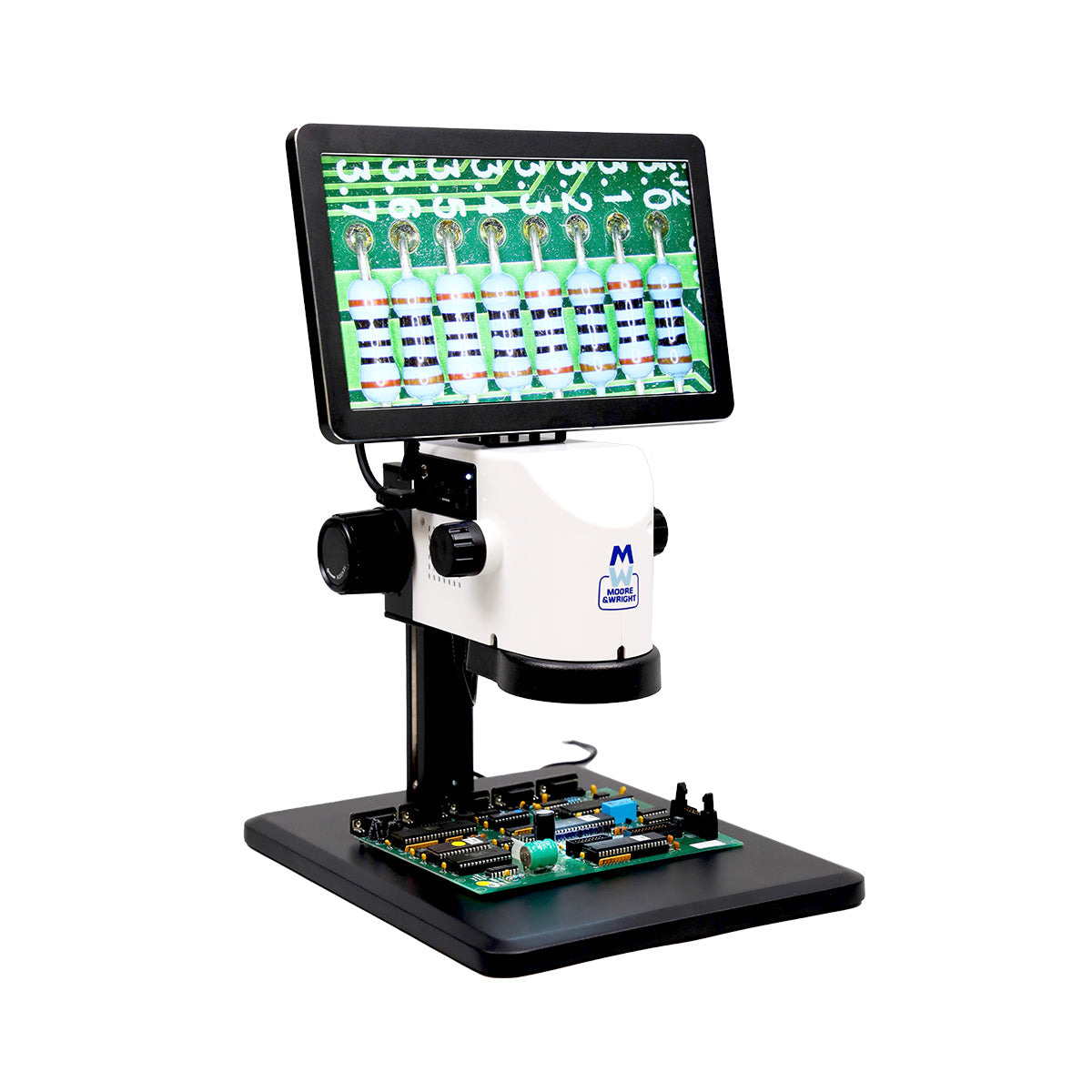

Moore & Wright MWT-7100 Video Microscope 12x-84x, Objective 0.75x - 4.5x continuous zoom, objective zoom ratio 6:4:1
SKU:Code: MWT-7100
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- display type 11.6” or HDMI output to alternate display
- resolution 1920x1080P (2 million) @60fps
- data output HDMI USB Ethernet port
- brand Moore & Wright
Moore and Wright’s digital Video Microscope is a powerful inspection tool, enhanced with measurement capabilities and image capture. The 12-84X magnification range and 2 megapixel camera allow detailed viewing on areas as small as 2mm. The built-in 11.6” LCD display has a frame rate of 60fps for real-time part viewing with no visible lag. The dimmable LED ring light, automatic exposure and adjustable camera settings allow for optimised inspection for every application. Smooth handwheels to adjust focus and magnification, with internal memory for calibration at range of magnifications. Take on-screen measurements from feature tools; create lines, arcs and more in user-defined positions or use the automatic edge finding to snap features to part edges. Convenient internal storage for files with option to export via network port or USB, HDMI port included to connect an additional screen.
- Real time observation on inbuilt monitor, with photo capture and video recording
- Overlay lines and shapes to measure distances, areas and angles, add text to images
- Magnification 12x-84xObjective 0.75x-4.5x continuous zoom, objective zoom ratio 6:4:1
- White balance and automatic exposure, gain, contrast and saturation control
- Sensor ½” CMOS
- Monitor 11.6” or HDMI output to alternate display
- Resolution 1920x1080P (2 million) @60fps
- Outputs HDMI, USB, Ethernet port
- LED light source with brightness control
- Power 100V to 240V, 50/60Hz converted to 12V supply
- An optional attachment enables panning at 45º viewing angle and 360º rotation
