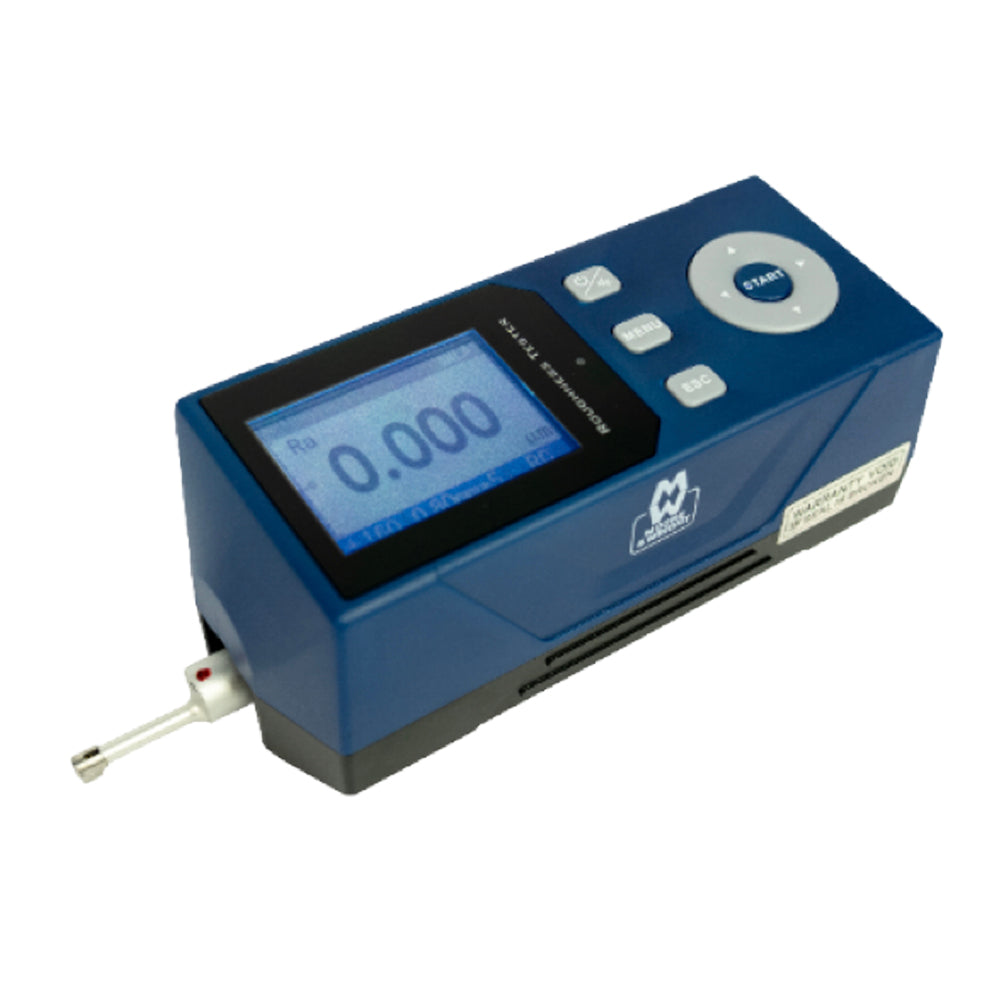

Moore & Wright MWT-1200 Surface Roughness Tester, Measuring Range TBC, Resolution 0.001µm

Code: MWT-1200

Sale Sold out £880.00
Save: 20% Sold out £880.00 £1,100.00
Excl. VAT
The MWT-1200 Surface Roughness Tester is an advanced hand-held, portable roughness tester with an external probe to access tricky internal features. With a high-precision inductive sensor, wide range of roughness parameters and on-screen waveforms for analysis directly on the device. The dedicated application software can be used to drive the roughness tester, display waveforms, print reports and export readings to Excel.

Request a Quote

Add to Compare

  • The UKs Leading Metrology Distributor

  • Trusted by the biggest companies in the UK

  • Need more information? Ask a question or contact us.
View full details
Specification
  • brand Moore & Wright
  • type Standard
  • display type Digital
  • resolution Ra; Rq; Rz; Rt; Rp; Rv; RS; RSm; Rsk; Rku; Rpc; Ry; Rmax; R3z
  • data output Yes
  • style Skidded
description

Features

  • Small, compact, and simple to use
  • Extended probe to access bores or internal surfaces
  • Text and waveforms on a bright 2" LCD
  • Measuring parameters: Ra, Rq, Rz, Rt, Rp, Rv, RS, RSm, Rsk, Rku, Rpc, Ry, Rmax, R3z
  • Compatible with ISO, DIN, ANSI, JIS standards
  • Supports waveform and Abbott curve display
  • Configurable measuring range and distance
  • Large capacity data storage: 500 sets of raw data and waveforms
  • Data transfer via wired connection to dedicated software (free download)
  • Software enables configuration, control, graphical display and data transfer to Excel
  • Low-power ARM microprocessor and ADC for improved measurement accuracy and calculation speed
  • The stylus is surrounded by a protective shroud and may be removed for storage or transportation
  • Internal 1000mAh lithium-ion rechargeable battery with external power adapter
  • Automatic shutdown options for power saving
  • Includes a precision reference standard
  • Supplied in a tough protective carry case
