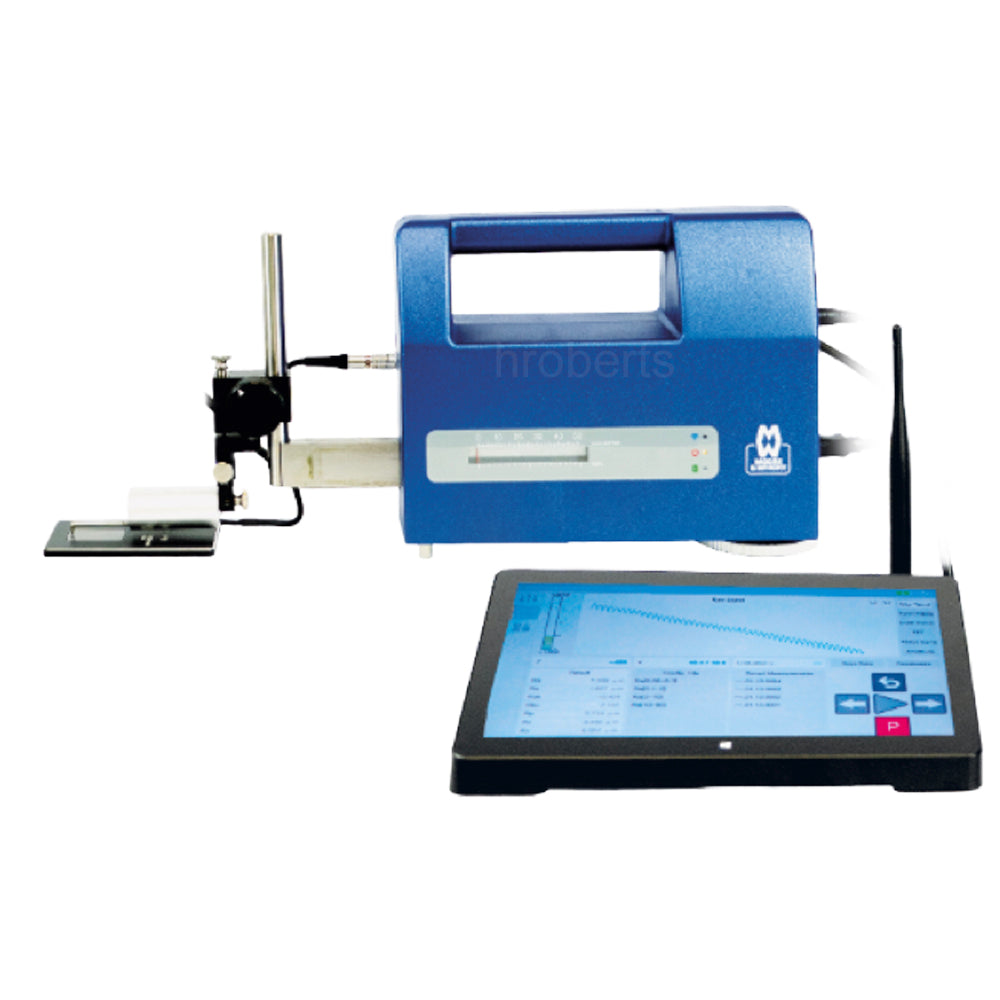

Moore & Wright MWT-1300 Profilometer with Microsoft Tablet, 0.0016μm (Range ±100μm), 0.016μm (Range ±1000μm)
SKU:Code: MWT-1300
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- brand Moore & Wright
- type Standard
- display type Digital
- data output Yes
The new MWT-1300 Profilometer is an advanced portable surface finish tester, measuring profile, roughness, and waviness. It comes with a Microsoft Tablet which runs dedicated, user friendly software to control the Profilometer and view measurement data. Press play to start a test, and the sensor will begin tracing the probe tip across the surface, with live test data shown on-screen as it measures.
The test data is processed and displayed automatically in results tables and using graphs to show waveforms of the surface profile, roughness, and waviness. Additional Abbott Curve, Fast Fourier Transform, and Amplitude Distribution graphs are also automatically drawn for convenience. The software has a wide range of customisable parameters to control the test setup, filtering algorithms, and values reported, with over 100 parameter options suitable for reporting to GB, DIN, ISO, ASME, and JIS standards. All measurement data can be saved on the tablet, or it can also be exported as a .CSV file and transferred onto another device using the supplied SD card or via USB.
Features
- 10” Microsoft tablet
- Dedicated software for control, data analysis, and data export
- Wired or wireless communication between Profilometer and Tablet
- High precision linear rail, with stroke length up to 50mm
- ± 1000 μm sensor range
- Export reports as .CSV
- Standard test block for recalibration
