Moore & Wright MWT-2600 Electromagnetic Ultrasonic Thickness Gauge, 1-2000mm
SKU:Code: MWT-2600
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- brand Moore & Wright
- type Ultrasonic
- range 1-2000mm

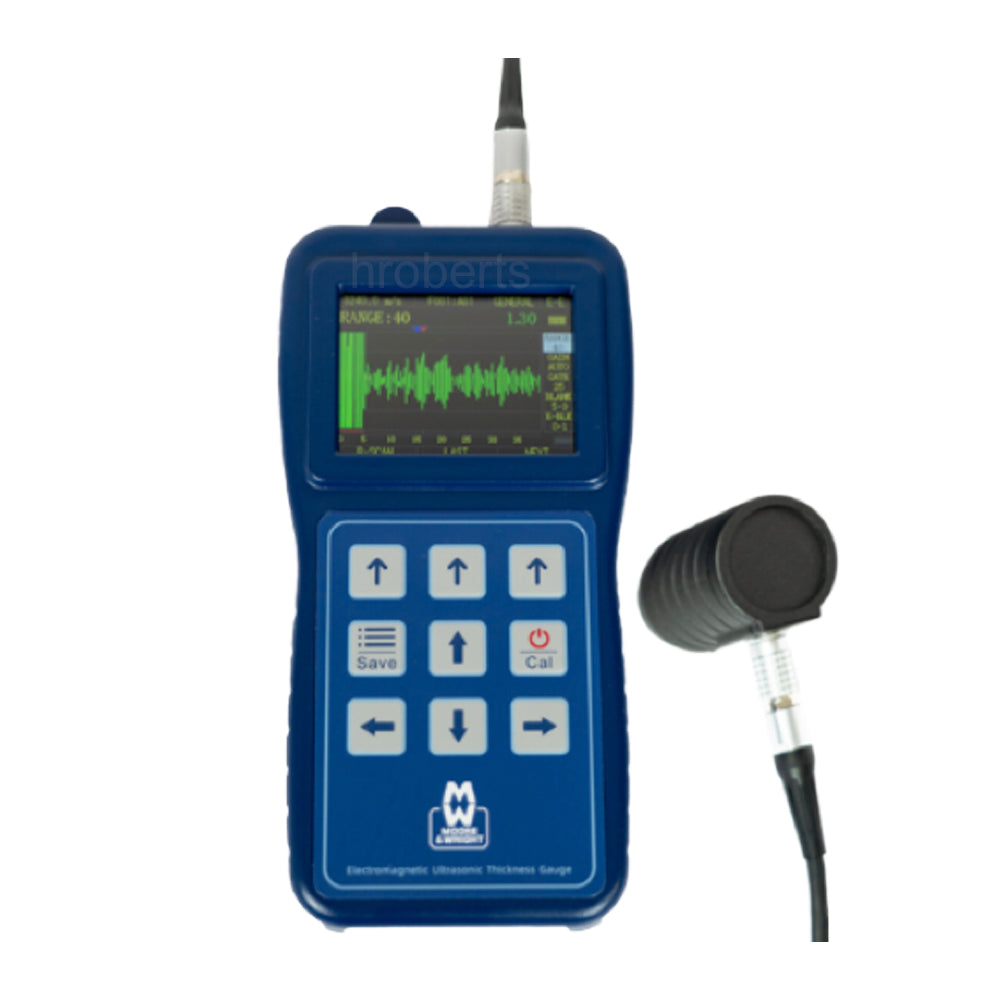

The MWT-2600 is highly accurate Electromagnetic Ultrasonic Thickness Gauge used to measure the thickness of metals and conductive materials without requiring direct contact or coupling gels. The probe generates ultrasonic waves at a material’s surface and analyses the echoes after they travel through the material and back to the surface using single echo (I-E) or dual echo (E-E) methods. Measurement results are displayed on the 2.4” colour LCD, view individual values or a moving plot of values for measuring thickness across a surface, or show the ultrasound waveform display to inspect the raw signal.
In addition to thickness measurements, the MWT-2600 can be used to monitor material integrity, or to detect corrosion, erosion, or wear. An optional high-temperature probe further increases the range of applications, the MWT-2600-01 probe is capable of measuring materials up to 800°C, for accurate measurements without the need to shutdown equipment or loose time waiting for cooling.
Features
- Measure through paint, rust, or other coatings
- No need for messy coupling gel
- Large colour LCD
- Data storage for over 500 measurements
- Ultrasound waveform display
- High-temperature probe available
