Moore & Wright

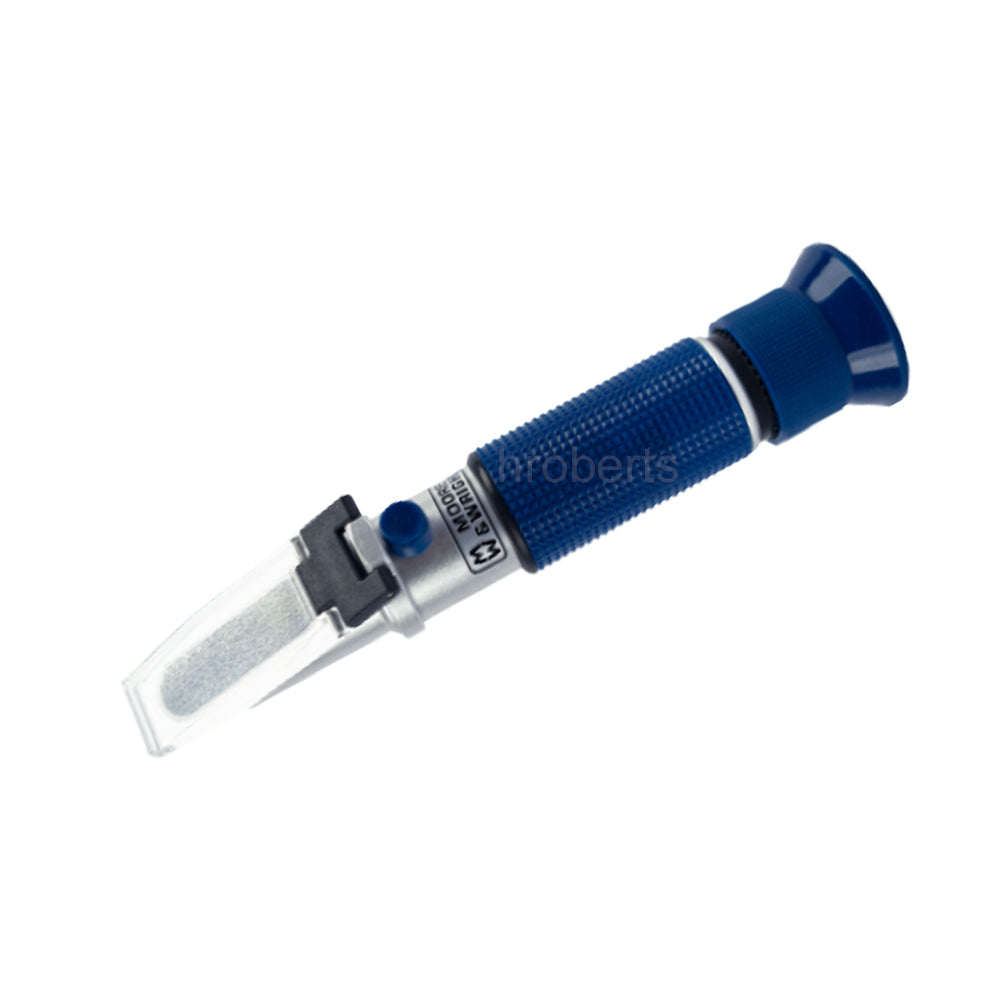

Moore & Wright MWT-7800 Refractometer for Machine Tool Coolant
SKU:Code: MWT-7800
Possible alternatives
Refractometer
Insize ISQ-RM30 Portable Refractometer - ISQ-RM30 Series
Regular price £51.04Sale price £51.04 Regular priceExcl. VAT£56.71
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- brand Moore & Wright
- range 0-20 (Bx)
- graduations 0.1 (Bx)
- mass 350g
Moore and Wright’s MWT-7800 Refractometer is designed to measure the concentration of coolant and cutting fluids. A small sample of fluid is placed on the test slide and the results observed through the eyepiece. When the refractometer is held up to a light, the refractive index of the fluid will deflect the light through the prism and onto a scale at the eyepiece. A blue line will appear on the scale showing the concentration for the fluid, from 0-20 °Bx.
This straightforward process gives fast, reliable readings for easy maintenance of correct dilution levels, ensuring ideal lubrication and corrosion protection for machine tools.
Features
-
- Simple operation
- Automatic temperature compensation
- Adjustable focus
- Recalibration via screw (screwdriver included)
- Supplied in plastic case with pipette and cleaning cloth
