Plastiform

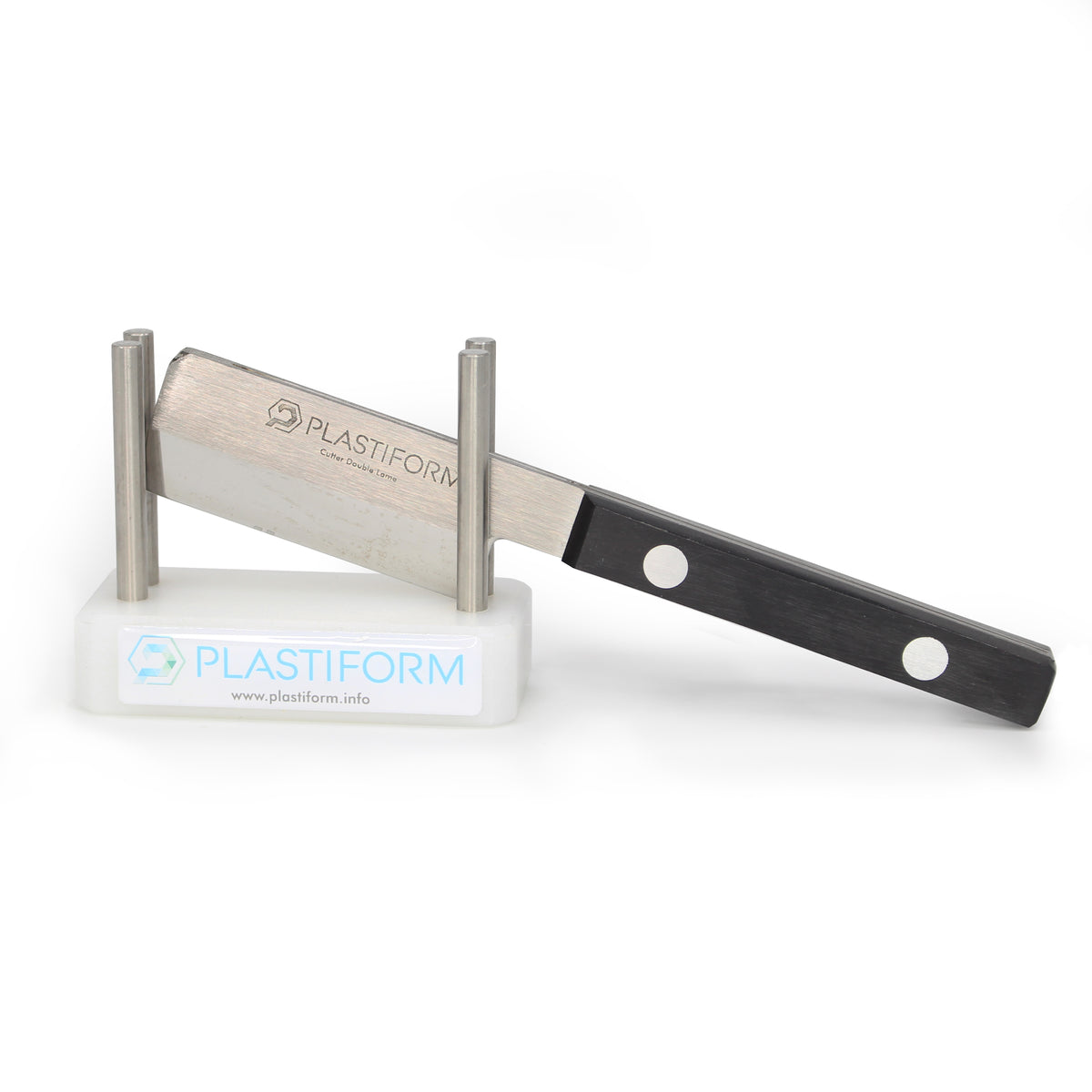

AC-013-B Standard Double Blade Cutter and Support
SKU:Code: AC-013-B
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- type Cutter and Support
- length 60mm Blade
- size 1mm Space Between Blades
The Double Blade Cutter is an essential accessory in the Plastiform range. It is a knife with a twin blade welded together that allows profiles to be cut on the axis of the semi-flexible or semi-rigid Plastiform impressions.
Forged by hand by master cutlers from the Thiers region of France, the Double Blade Cutter allows the plastiforms to be cut without altering their dimensions. This will give you an exact profile (in 2 dimensions) of your replica. This profile will be much easier to control using optical measuring instruments. The guide will allow you to ensure a straight cut when handling the tool.
The standard cutter has a 60 mm blade and a 1 mm to 1.3mm gap between blades. However, the Cutter can be forged to measure, depending on your company’s needs.
The cutters’ blades are made of 12C27 steel, a robust material with a hardness of 57 HRC. Its blades also have permanent sharpening (subject to exclusive use on Plastiform products).
