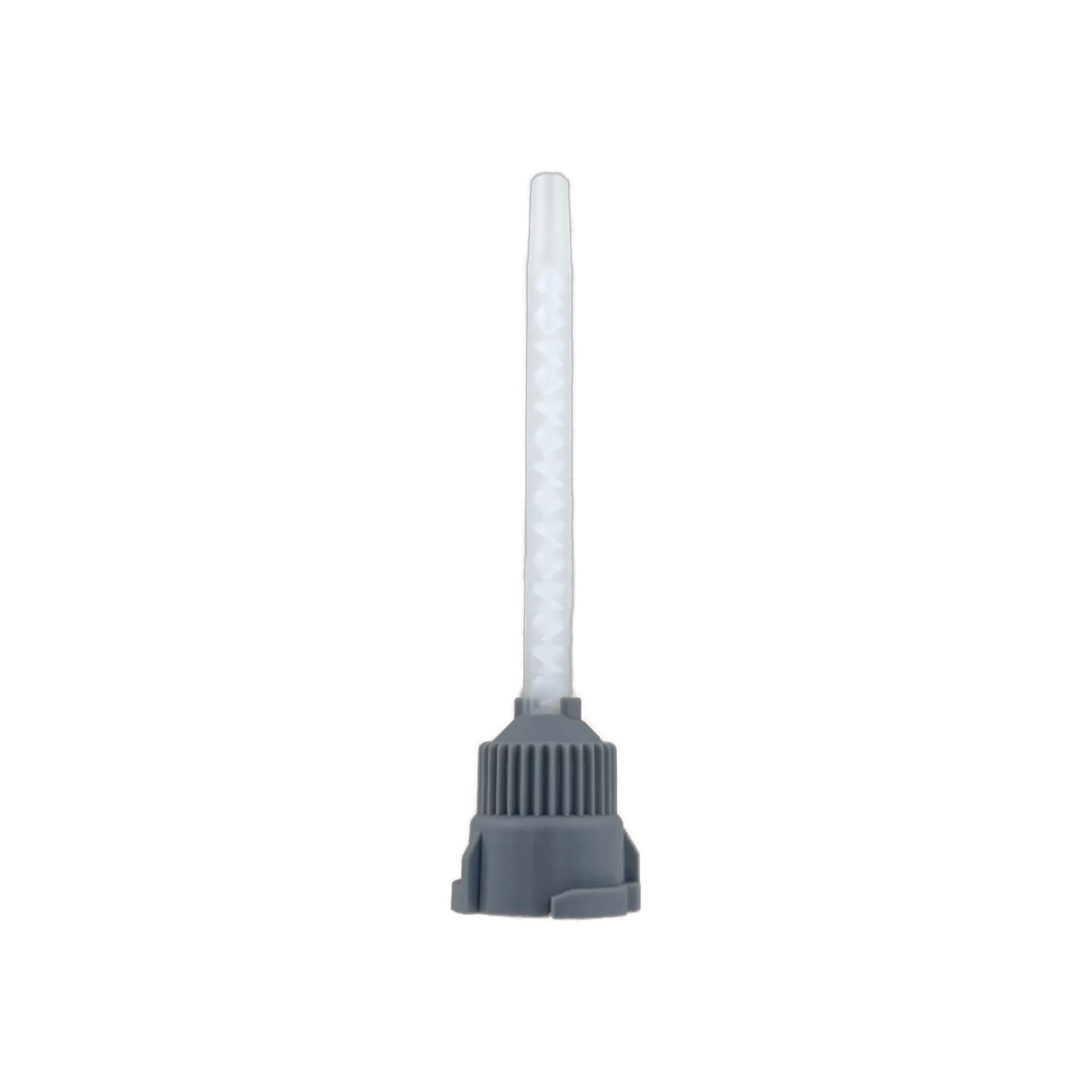

Plastiform LL Nozzles, compatiable with LL Needle Tips
SKU:Code: AC-030
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- brand Plastiform
- type Needle Nozzles
- length 75mm Total / 57mm tube length
- remarks Suits all 50ml Cartridges
- diameter Tapered from 5.00 mm (base) to 4.75 mm

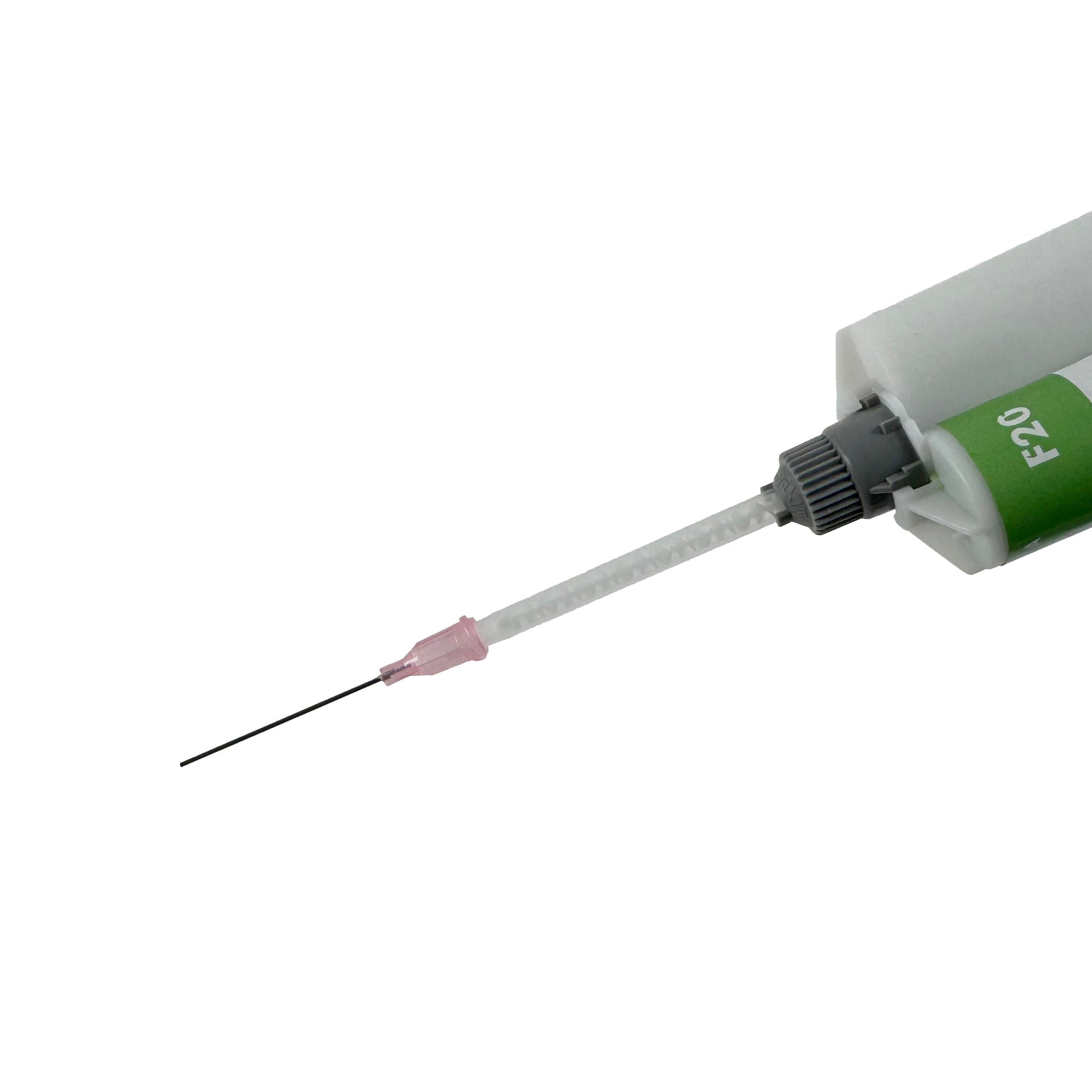

LL nozzles fit all 50ml cartridges and are slightly smaller than standard nozzles, allowing them to fit into tighter shapes. You can use this nozzle WITH or WITHOUT a needle at the end, but we highly recommend using it only when you need a needle for your application.
Start the injection only when you are fully prepared to perform your controls. Do not use pasty products with this nozzle when a needle is attached at the end.
Once the product is mixed inside, it begins to cure and will polymerize within a few minutes. After polymerization, the nozzle is no longer reusable and must be discarded.
Unlike the tips, the needle cannot be reused after the polymerization process, as it is impossible to remove the cured product inside.
Nozzles are essential accessories for applying Plastiform in 50ml cartridges. LL nozzles are not included with the cartridges and must be ordered separately.
DIMENSIONS
• Total Length: 75 mm
• Tube Length: 57 mm
• Tube Diameter: Tapered from 5.00 mm (base) to 4.75 mm
• Outlet External Diameter: 4.00 mm
• Outlet Internal Diameter: 2.60 mm
