Plastiform ML-050 Best Sellers Case
SKU:Code: ML-050
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- type Kit
- brand Plastiform
The fluid products F20 & F50, can easily be applied inside any kind of part to obtain a complete internal replica*. The two products give Flexible or Semi-Flexible impressions, that can be stretched and deformed during removal.
The F85 is extremely fluid, it is very easy to insert into the parts or cavities to be inspected. It produces a rigid final impression (85 Shore A hardness), therefore non-flexible. It cannot deform and does not accept any stress or elongation during the demoulding operation.This plastiform can therefore only be used if you want to control simple shapes, without any Extraction Stress.
F30 Visual is an extremely fluid product, which infiltrates very easily into any cavity. Whether small (diameter up to 0.1 mm) or medium size, the product infiltrates and occupies a maximum of space, with a precision of a micron. Its final impression is very flexible and elastic (hardness 30 Shore A), so it is easy to remove it from a part with undercut.The F30 Visual has been specially developed for visual examinations of the surface condition. The replica accurately transcribes all details to the micron scale, surface defects (tool marks, scratches, streaks, slits, pitting, etc.) as well as shape defects (flatness, undulation, circularity, etc.).
The Pasty products P35 & P80Ra can easily be applied to any kind of part to obtain a simple external replica. These products give Semi rigid and Rigid impressions, the variety that keep your options open.
The P80 Ra has been specially developed for Roughness Control. The surface roughness is perfectly restored, and can be measured directly on the impression using roughness tester or optical inspection device. This plastiform is specially designed to restore the roughness of a surface and is a good indicator of Ra.
The M70 manual product give you a different approach, mixed and applied by hand these products are easy to use and perfect for simple forms.
The kit also contains our innovative double blade cutter which can be used to take a 1mm slice through your impression for easier measurement.
Replicas can be inspected on Profile Projectors, Vision systems or similar.

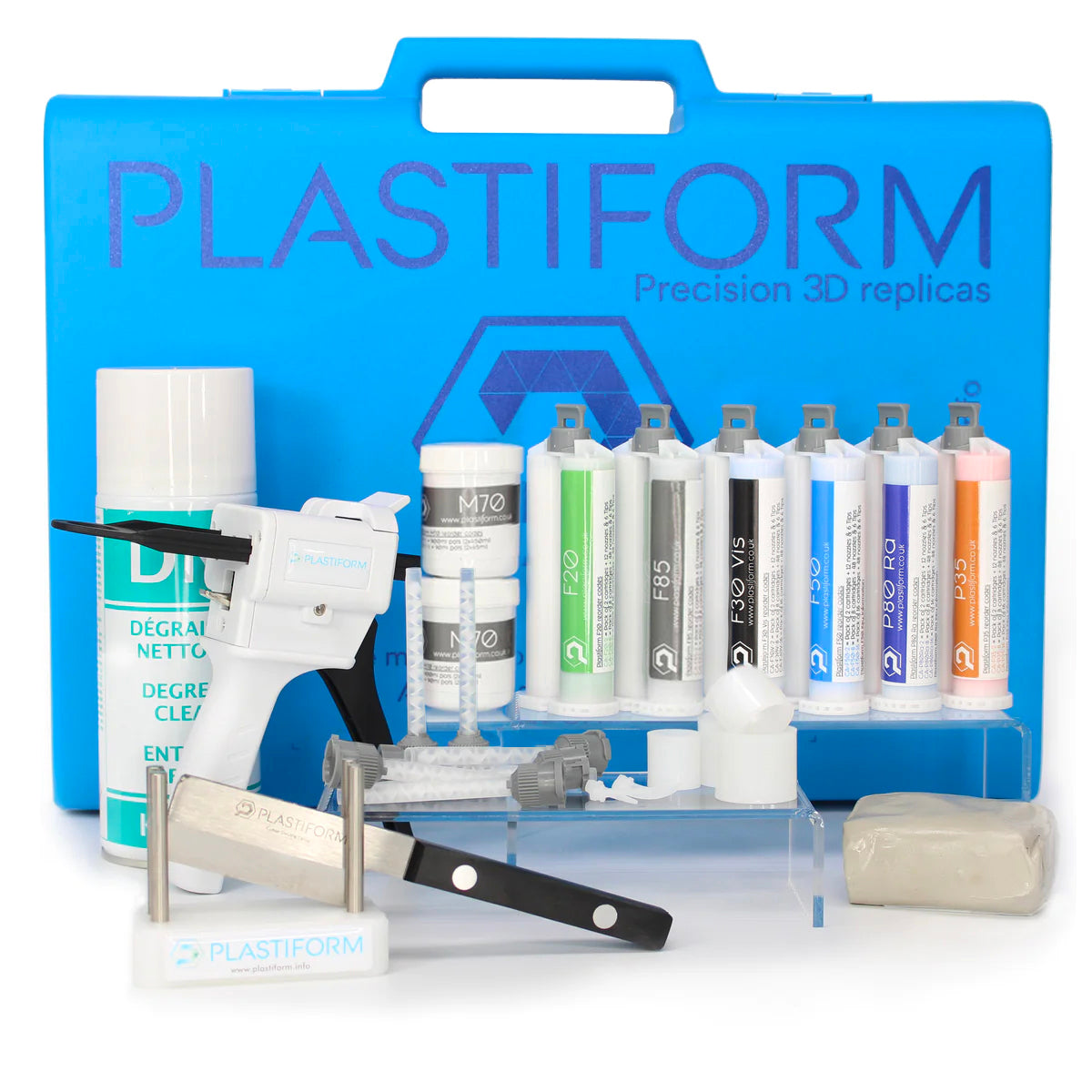

KIT CONTENTS
| Compounds |
1x F20 1x F50 1x F85 1x F30 Vis 1x P35 1x P80 Ra 1x M70 (90ml) |
| Accessories |
1x Dispensing gun DS-53 20x Mixers nozzles 6x Mixer Nozzle Tips 1x Plastin (50g) - Technical Modeling Clay 1x DN1 (Surface cleaner 400ml) 1x Double Blade Cutter and Support |
