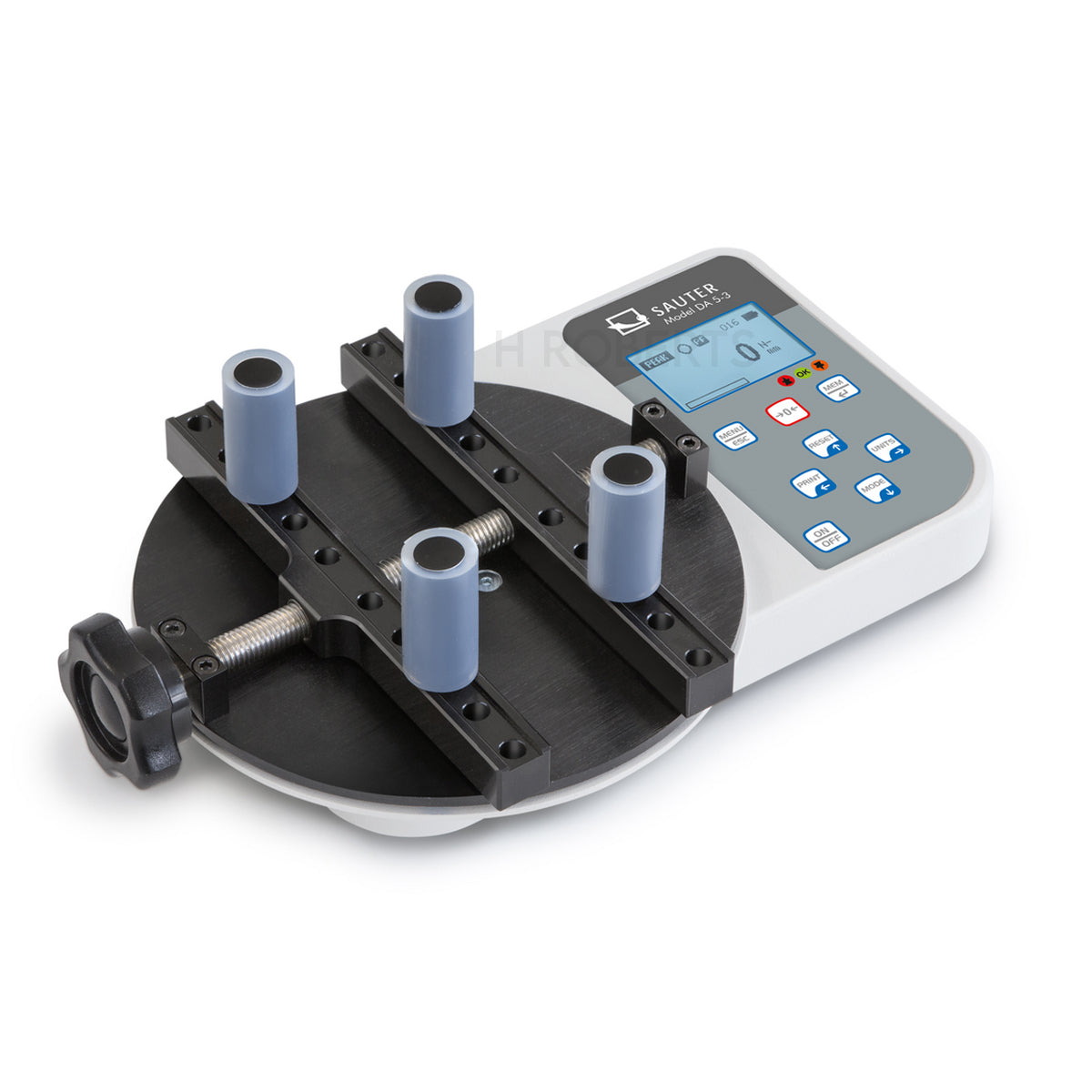

Sauter DA 10-3 Torque Checker, Measuring range torque 0,5 Nm – 10 Nm, Comfortable testing of screw tops, e.g. bottles, jars etc.
SKU:Code: DA10-3
Sale
Sold out
Regular price
£1,970.00
Sold out
Sale price
£1,970.00
Regular price
£1,970.00
Excl. VAT
Torquemeter for Twist Locks DA 10-3, measuring range 10 Nm, readout 0,002 Nm, Internal measuring frequency 1000 Hz
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- brand Sauter
description
description
| Measuring range torque | 0,5 Nm – 10 Nm |
| Readability torque [d] (Nm) | 0,002 Nm |
| Tolerance (% of [Max]) | 0,5% |
| Units | Nm, kgf/cm, kgf/m, in/lbs, ft/lbs |
| Test object diameter [Max] | 16 cm |
| Overload protection (% of [Max]) | 120% |
| Memory function | Yes |
| Internal data memory: Number of individual values | 500 |
| Peak function | Yes |
| Limit-setting function | Yes |
| Internal measuring frequency | 1000 Hz |
| Supplied power supply | Accu & Power supply |
| Battery / accumulator type | NiMH |
| Rechargeable battery operating time - backlight off | 18 h |
| Auto-off interval(s) in battery mode/rechargeable battery mode | 1 - 60 min |
| Interfaces | RS-232 standard, USB-Device |
| Display type | LCD graphic |
| Display resolution | 128×64 |
| Material housing | metal, lacquered |
| Dimension (W×D×H) | 100×160×250 mm |
| GTIN/EAN number | 4045761193376 |
- Optimised for torque testing of bottles, jars and other packaging with screw tops with a minimum diameter of 15 mm and a maximum diameter of 160 mm, in the food industry and pharmaceutical industry, as well as in the manufacturing of cosmetics such as, for example, lipsticks, etc.
- Quick pin system: The four bottle mounts (holders) are pushed in, instead of being screwed in, to save time. This allows you to reconfigure quickly for other bottle sizes
- Metal housing for durable use in harsh environmental conditions
- Capacity display: A bar lights up to show how much of the measuring range is still available
- LCD graphics display with backlight
- Rubber feet with anti-slip feature
- Internal data memory saves up to 500 measurements. The memory contents can be transferred to the PC using optional software
- Data interface USB and RS-232 included
- Peak-Hold function to capture the peak value or Track function for continuous display of measurement
- Can be used in both directions of rotation
- Measuring with tolerance range (limit-setting function): Upper and lower limiting can be programmed individually. The process is supported by an audible and visual signal
- AUTO-OFF function
- Scope of delivery: four bottle holders with rubber coating, sturdy carrying case
