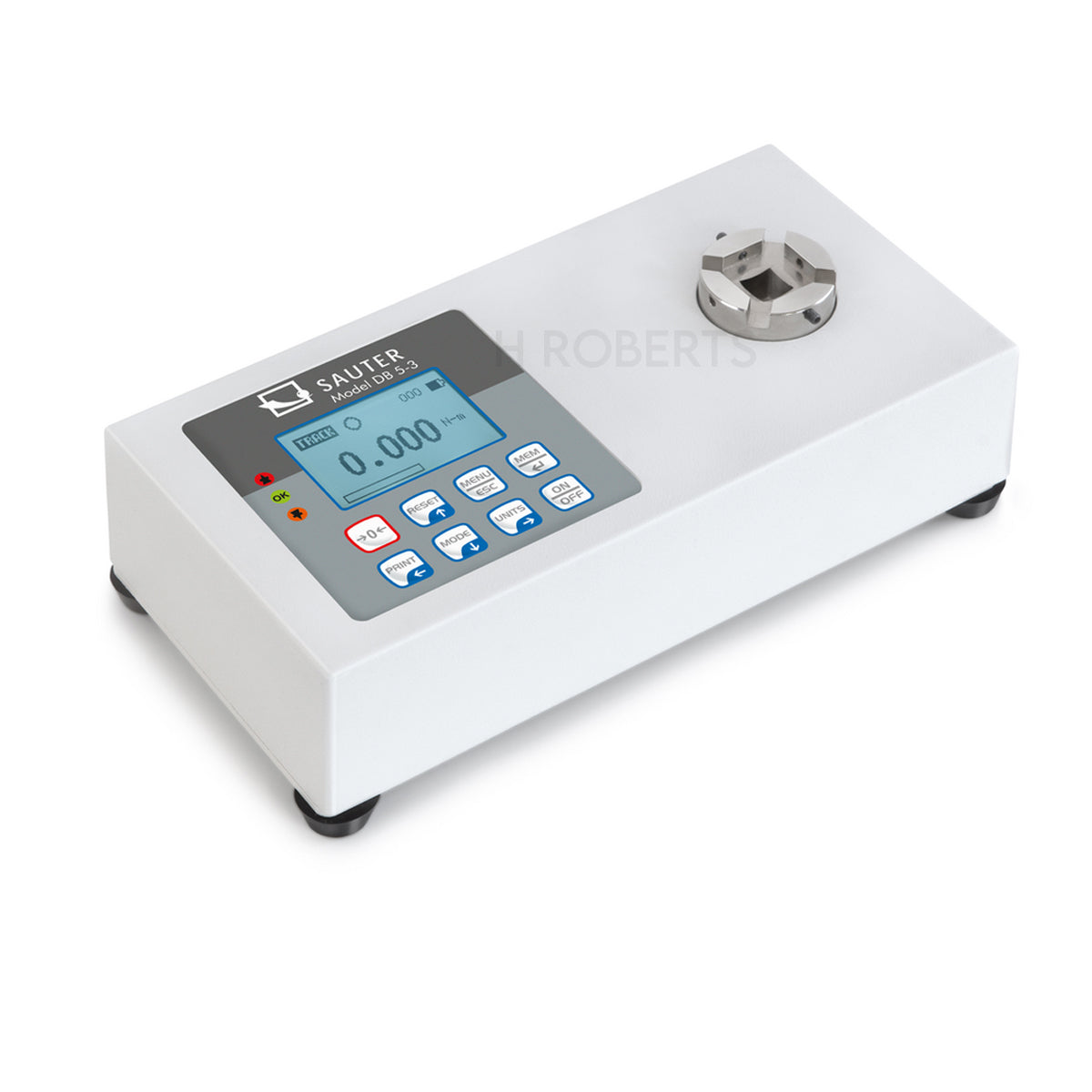

Sauter DB 5-3 Torque Checker, Measuring range torque 0,25 Nm – 5 Nm, Convenient way to test the torque of tools
SKU:Code: DB5-3
Sale
Sold out
Regular price
£1,770.00
Sold out
Sale price
£1,770.00
Regular price
£1,770.00
Excl. VAT
Torquemeter for Tools DB 5-3, measuring range 5 Nm, readout 0,001 Nm, Internal measuring frequency 1000 Hz
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- brand Sauter
description
description
| Measuring range torque | 0,25 Nm – 5 Nm |
| Readability torque [d] (Nm) | 0,001 Nm |
| Tolerance (% of [Max]) | 0,5% |
| Units | Nm, kgf/cm, kgf/m, in/lbs, ft/lbs |
| Supported torque pickups | 20 mm, 3/8 " |
| Overload protection (% of [Max]) | 120% |
- Particularly suitable for testing torque wrenches, electric hand screwdrivers and cordless screwdrivers
- Screw joint simulator for dynamic testing of electric screwdrivers
- Metal housing for durable use in harsh environmental conditions
- Capacity display: A bar lights up to show how much of the measuring range is still available
- LCD graphics display with backlight
- Rubber feet with anti-slip feature
- Data interface USB and RS-232 included
- Internal data memory saves up to 500 measurements. The memory contents can be transferred to the PC using optional software
- Peak-Hold function to capture the peak value or Track function for continuous display of measurement
- Can be used in both directions of rotation
- Measuring with tolerance range (limit-setting function): Upper and lower limiting can be programmed individually. The process is supported by an audible and visual signal
- AUTO-OFF function
- Scope of delivery: Torque pick-up, sturdy carry case
