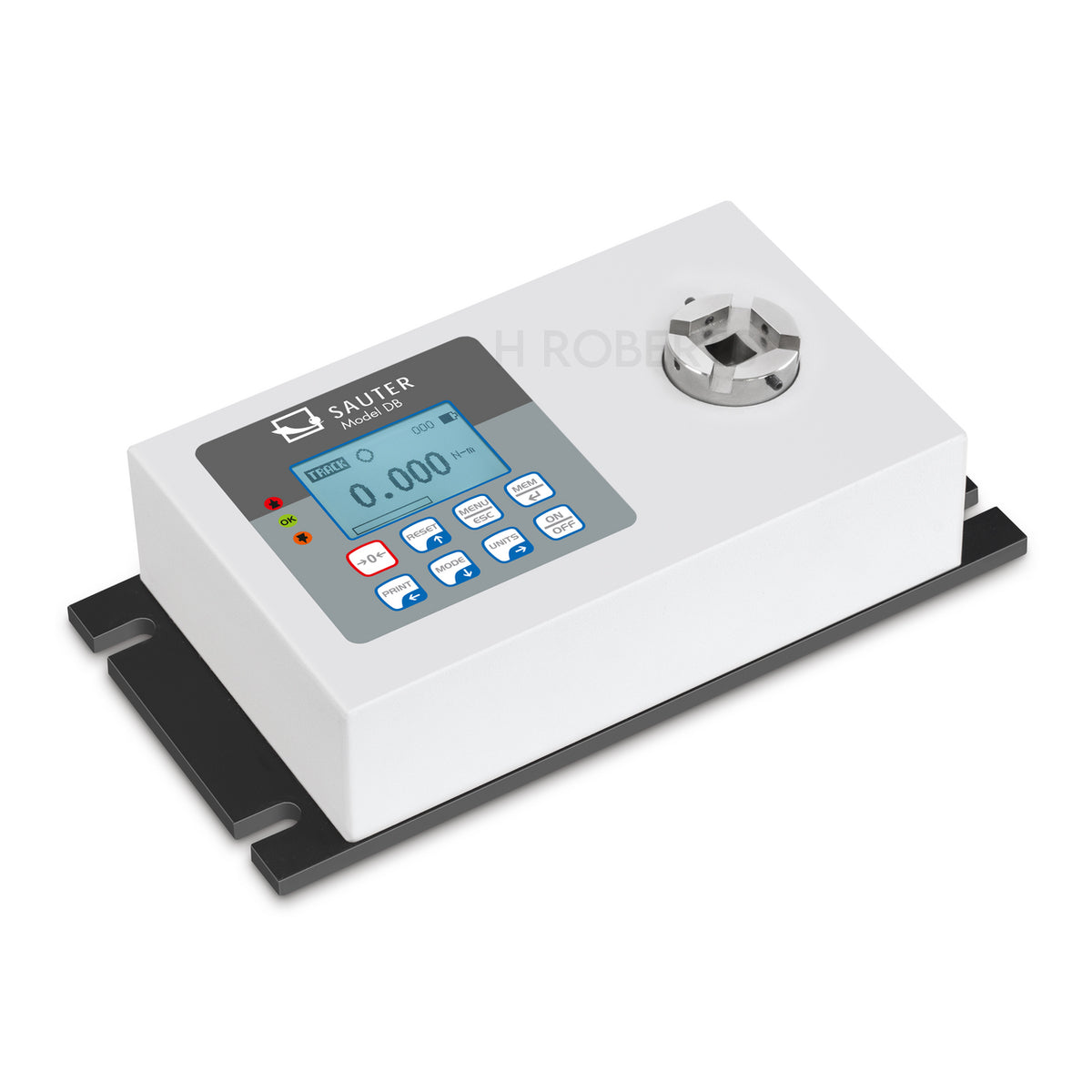

Sauter DB 500-2 Torque Checker, Measuring range torque 25 Nm – 500 Nm, Convenient way to test the torque of tools
SKU:Code: DB500-2
Sale
Sold out
Regular price
£2,010.00
Sold out
Sale price
£2,010.00
Regular price
£2,010.00
Excl. VAT
Torquemeter for Tools DB 500-2, measuring range 500 Nm, readout 0,1 Nm, Internal measuring frequency 1000 Hz
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- brand Sauter
description
description
| Measuring range torque | 25 Nm – 500 Nm |
| Readability torque [d] (Nm) | 0,1 Nm |
| Tolerance (% of [Max]) | 0,5% |
| Units | Nm, kgf/cm, kgf/m, in/lbs, ft/lbs |
| Supported torque pickups | 3/4 " |
| Overload protection (% of [Max]) | 120% |
- Particularly suitable for testing torque wrenches, electric hand screwdrivers and cordless screwdrivers
- Metal housing for durable use in harsh environmental conditions
- Capacity display: A bar lights up to show how much of the measuring range is still available
- LCD graphics display with backlight
- Stable mounting plate for solid fixation
- Data interface USB and RS-232 included
- Internal data memory saves up to 500 measurements. The memory contents can be transferred to the PC using optional software
- Peak-Hold function to capture the peak value or Track function for continuous display of measurement
- Can be used in both directions of rotation
- Measuring with tolerance range (limit-setting function): Upper and lower limiting can be programmed individually. The process is supported by an audible and visual signal
- AUTO-OFF function
- Scope of delivery: Torque pick-up, sturdy carry case, mounting plate
