Sauter FC500 Compact Digital Force Gauge 0-500N Range, for Tensile and Compressive Force Measurement
SKU:Code: FC500
Sale
Sold out
Regular price
£415.00
Sold out
Sale price
£415.00
Regular price
£415.00
Excl. VAT
Compact force gauge for tensile and compressive force measurements
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- range 0-500 N
- resolution 0.2 N
- measuring units N / kgf / ozf / lbff
- remarks Peak Hold = Yes
- power supply Power supply & battery included
- power supply Power supply & battery included
- brand Sauter
description
description
- Turnable display with backlight.
- Peak-Hold function to capture the peak value or Track function for continuous display of measurement.
- Metal housing for durable use in harsh environmental conditions.
- Capacity display: A bar lights up to show how much of the measuring range is still available.
- Measuring with tolerance range (limit-setting function): Upper and lower limit adjustable, between 10 and 100% of [Max], in pull and push direction. The process is supported by an acoustic and visual signal.
- Safety: If loads exceed 110% of the measuring range, the device will give clear acoustic and visual signals.
- Internal memory for up to 500 measurement values.
- USB data interface and USB interface cable as standard.
- Selectable: AUTO-OFF function or permanent operation.
- Selectable measuring units: N, kgf, ozf, lbf.
- Delivered in a robust carrying case.

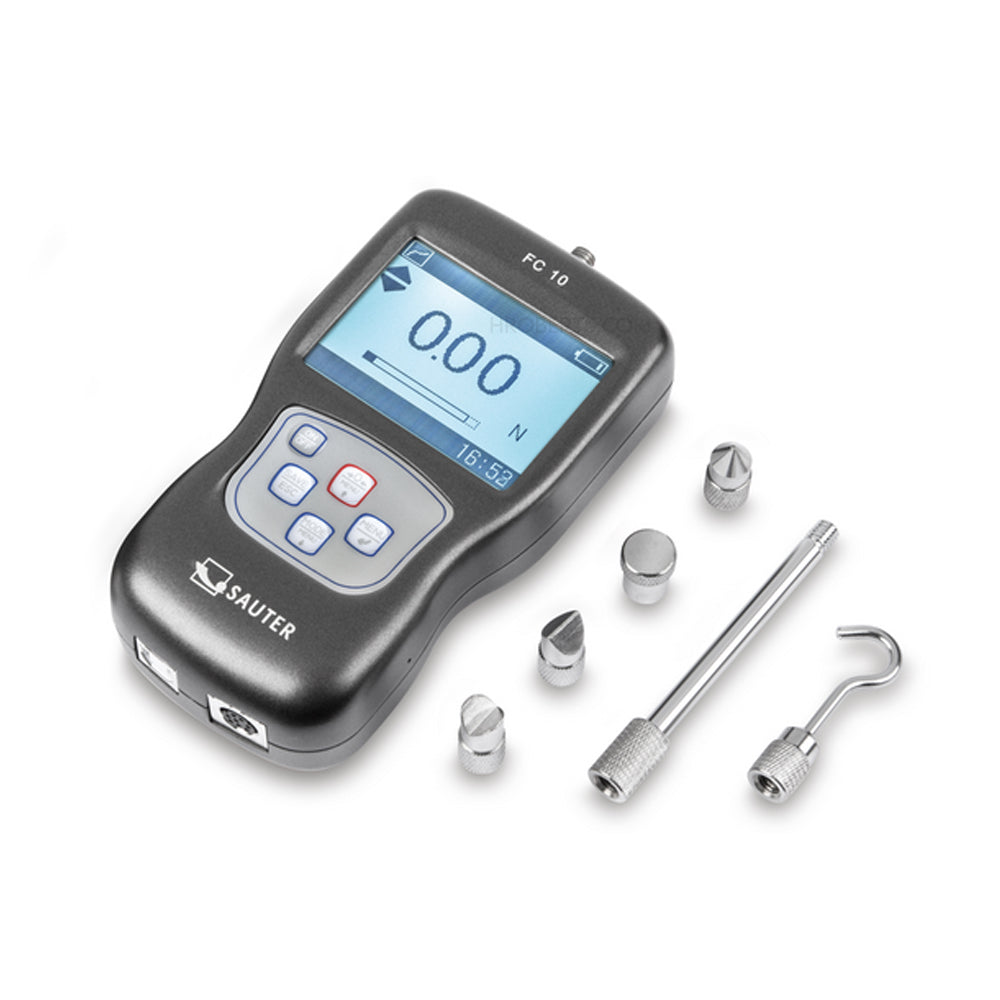

- Standard attachments as shown, extension rod: 90 mm, included with the delivery.
- Can be mounted on all SAUTER test stands up to 5 kN.
