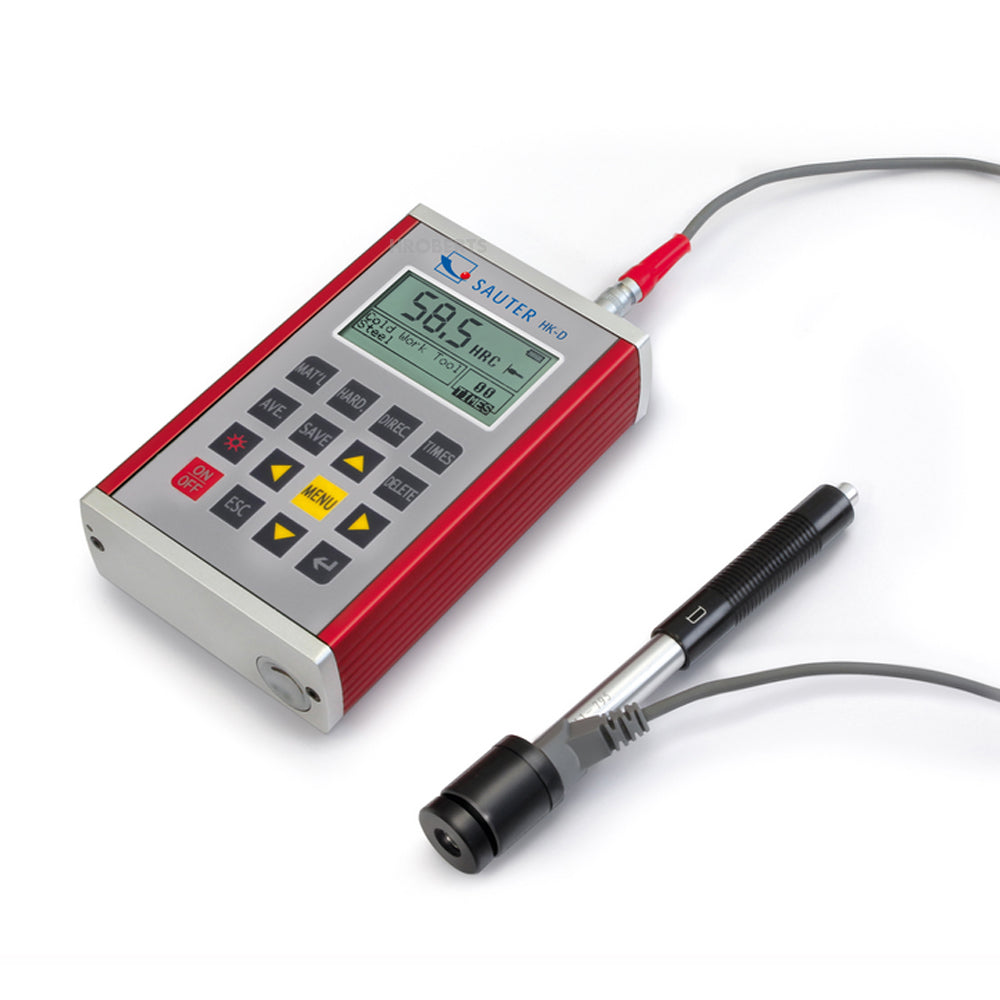

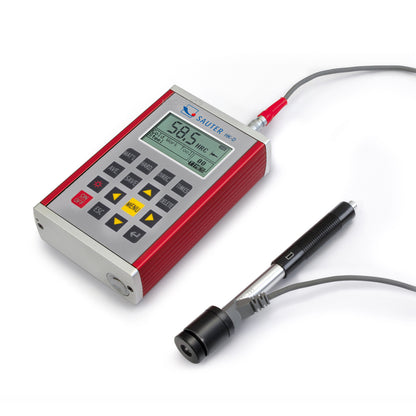

Sauter HK-DB Premium Leeb hardness tester, 170 - 960 Leeb (Includes Testing Block)

Code: HK-DB

Sale Sold out £1,520.00
Sold out £1,520.00 £1,520.00
Excl. VAT
  • External impact sensor standard (Type D)
  • Mobility: In comparison with stationary table-top devices and testing devices with an internal sensor, using the SAUTER HK-D offers the highest level of mobility and flexibility
  • All measurement directions possible (360°) thanks to an automatic compensation function
  • Measurement value display: Rockwell (Type A, B, C), Vickers (HV), Shore (HS), Leeb (HL), Brinell (HB)
  • Internal memory for up to 600 data groups, with up to 32 values per group forming the average value of the group
  • Mini statistics function: displays the measured result, the average value, the impact direction, date and time
  • Automatic unit conversion: The measuring result is automatically converted into all specified hardness units
  • Measuring with tolerance range (limit-setting function): Upper and lower limiting can be programmed individually. The process is supported by an audible and visual signal
  • Matrix display: Backlit multi-function display for all relevant functions at a glance
  • Robust metal housing

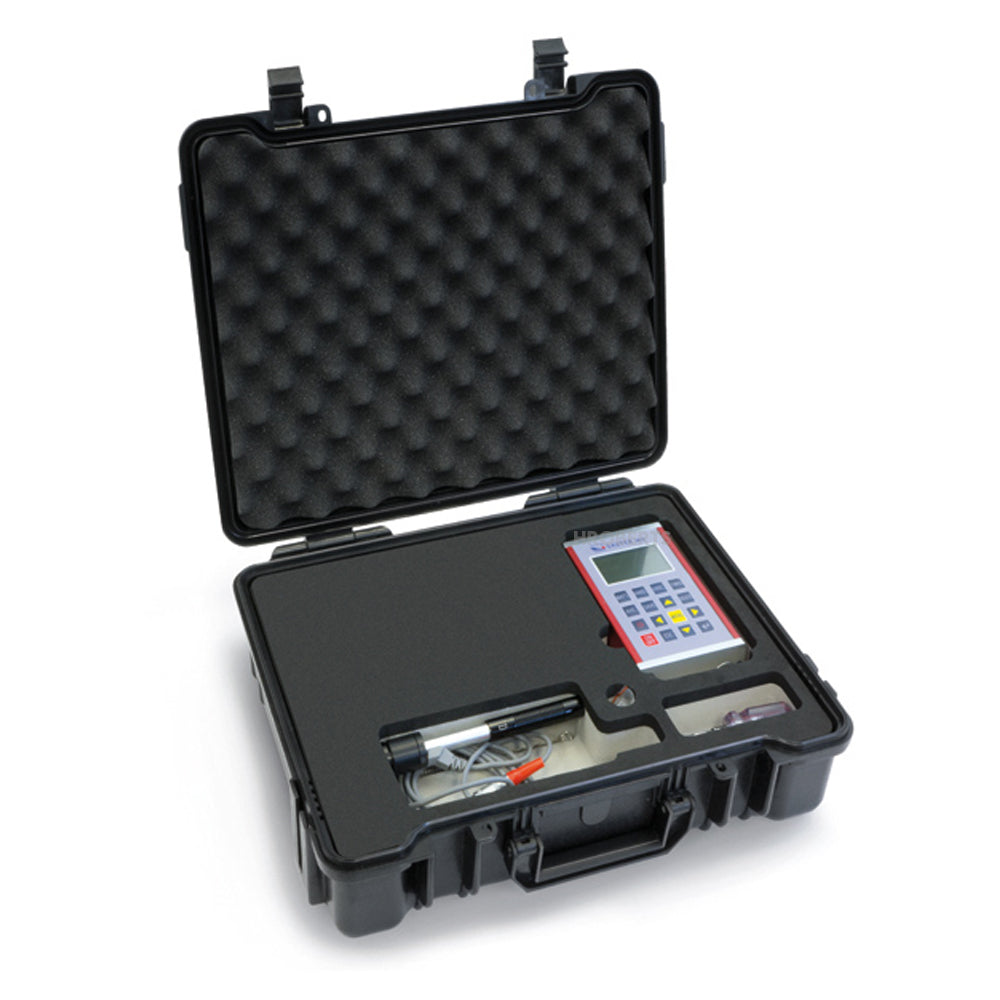

  • Delivered in a robust carrying case

Request a Quote

Add to Compare

  • The UKs Leading Metrology Distributor

  • Trusted by the biggest companies in the UK

  • Need more information? Ask a question or contact us.
View full details
Specification
  • range (Leeb) 170 – 960
  • measuring units HL / HV / HB / HRB / HRC
  • remarks Test object thickness Min 3mm
  • scale HLD
  • battery 2× AA
  • diameter Probe Diameter 20mm
  • brand Sauter
description
Internal memory Internal memory To save measurements in the device memory
USB data interface Data interface USB To connect the measuring instrument to a printer, PC or other peripheral devices
Statistics Statistics Using the saved values, the device calculates statistical data, such as average value, standard deviation etc.
Dimensional units Measuring units Weighing units can be switched to e.g. non-metric. Please refer to website for more details
Measuring with tolerance range (function to set limits) Measuring with tolerance range (limit-setting function) Upper and lower limiting can be programmed individually. The process is supported by an audible or visual signal, see the relevant model
 Battery operation Battery operation Ready for battery operation. The battery type is specified for each device.
