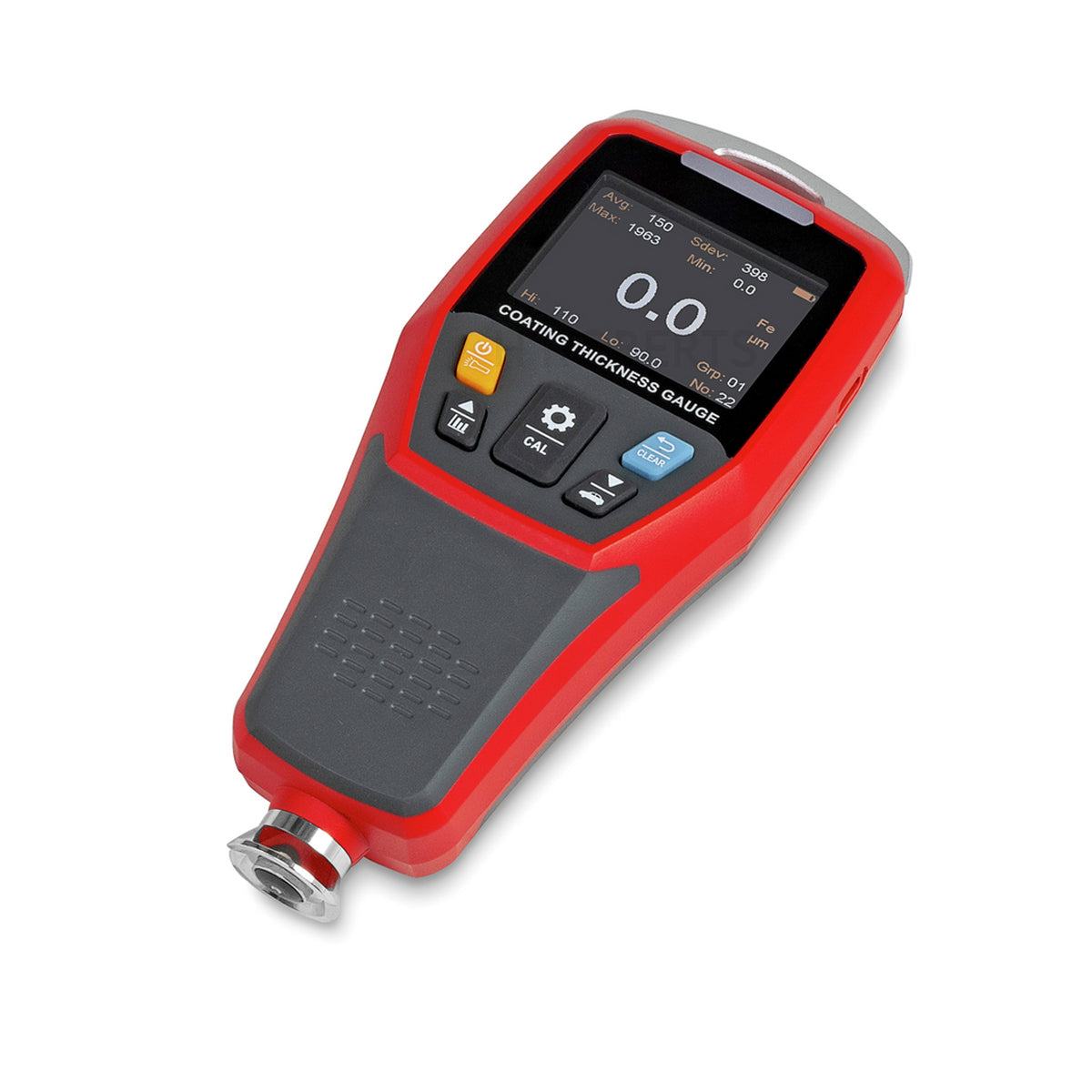

Sauter JCT 100 Coating Thickness Gauges, Measuring range coating thickness [d] (µm) 2000 µm, New-generation measuring coating thickness gauge
SKU:Code: JCT100
Sale
Sold out
Regular price
£355.50
Save: 10%
Sold out
Sale price
£355.50
Regular price
£395.00
Excl. VAT
Digital coating thickness gauge JCT 100, Max 2000 µm, readout 0,1 µm
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
![Sauter JCT 100 Coating Thickness Gauges, Measuring range coating thickness [d] (µm) 2000 µm, New-generation measuring coating thickness gauge](http://www.hroberts-di.com/cdn/shop/files/SauterJCT100CoatingThicknessGauges_Measuringrangecoatingthickness_d_m_2000_m_New-generationmeasuringcoatingthicknessgauge.jpg?v=1758736277&width=1445)
Specification
Specification
- brand Sauter
description
description
| Measuring range coating thickness [d] (µm) | 2000 µm |
| Readability coating thickness [d] (µm) | 0,1 µm |
| Tolerance (% of [Max]) | 2% |
| Units | µm, inch (mil) |
| Coating thickness gauge sensor type | FE, NFE |
| Test object thickness coating | Non-magnetic coatings on iron, steel, Type F, Coatings on non-magnetic metals, type N |
- Accurately determines the thickness of coats of paint or varnish on iron or non-iron base material
- Combination of magnetic and eddy current measuring methods enables particularly high levels of precision and flexibility. The base material is detected automatically
- Stable, reliable performance as well as non-destructive measuring
- Measuring range up to 2000 µm
- Low-wear sensor thanks to state-of-the-art technologies
- Single and two-point calibration
- Single and repeated measurements for pass/fail assessment. The three-colour LED display shows the current value attribute (green: qualified, red: below the limit value, yellow: above the limit value)
- The display rotates automatically and makes it easier for the user to read the measured values from many different angles, or alternatively it can be locked in place manually
- Selection of functions with automotive mode, voice transmission, Bluetooth App (for Android, no iOS support) and LED torch
- Main application areas: Coating thickness measurement on metals in industry and research, for example in the automobile industry, metal processing, painting and inspection
- Delivery in a practical box
