Images are for illustration purposes only - Products may differ.

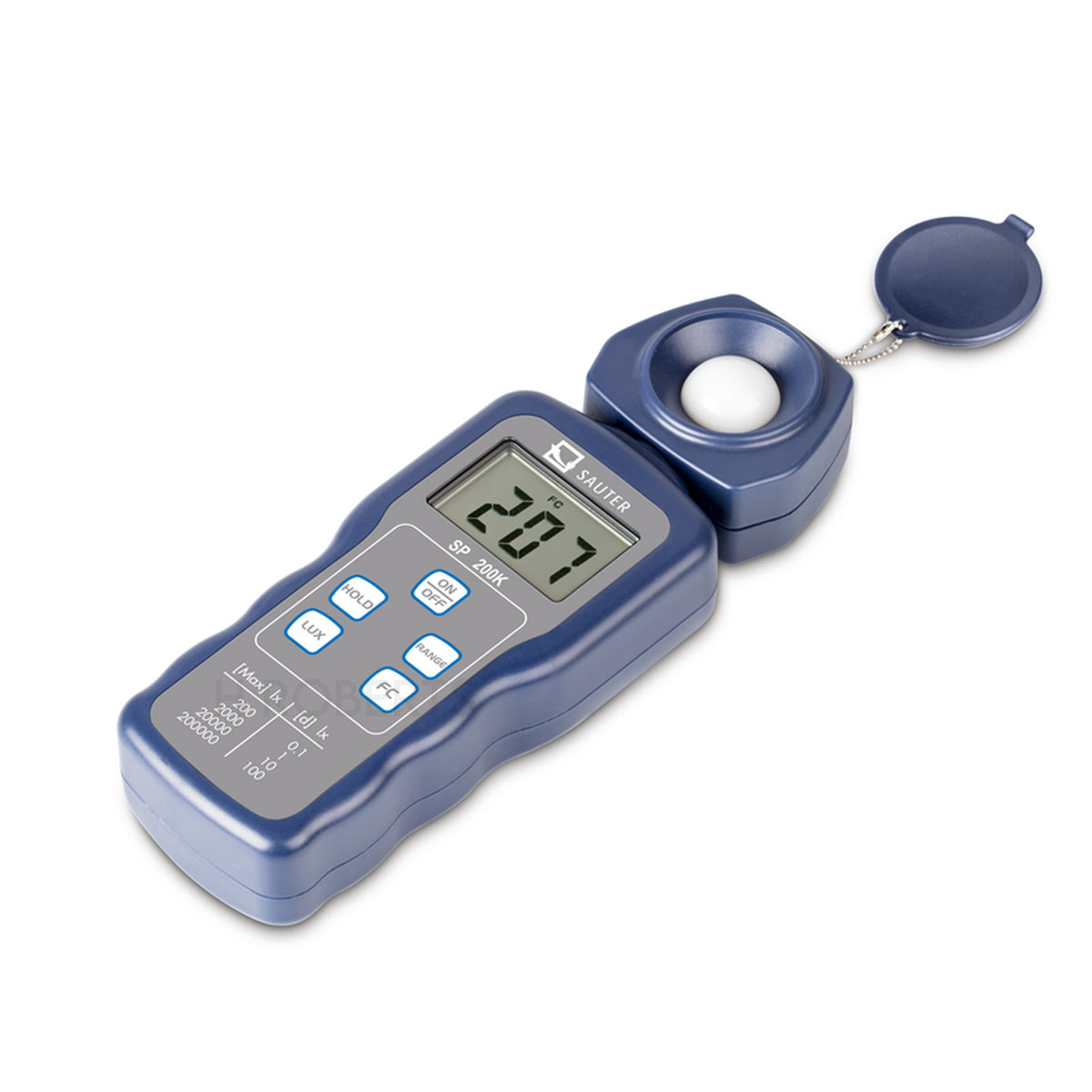

Sauter SP 200K Light measuring instruments, Compact photometer, optimised for accurate light measurement, including LED light measurement
SKU:Code: SP200K
Sale
Sold out
Regular price
£94.50
Save: 10%
Sold out
Sale price
£94.50
Regular price
£105.00
Excl. VAT
Light measuring instrument SP 200K, Max 200 lx; 2000 lx; 20000 lx; 200000 lx, readout 0,1 lx; 1 lx; 10 lx; 100 lx
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- brand Sauter
- range 200 lx; 2000 lx; 20000 lx; 200000 lx
description
description
| Measuring range [Max] (Lux) | 200 lx; 2000 lx; 20000 lx; 200000 lx |
| Readability illumination [d] (lx) | 0,1 lx; 1 lx; 10 lx; 100 lx |
| Units | lx, fc |
| Hold function | Yes |
| Peak function | Yes |
| Supplied power supply | Battery |
| Battery / accumulator type | Alkali(-Manganese) |
| Battery connection | 9V Bloc |
| Battery operating time | 200 h |
- For measuring illumination of office workstations, production workstations, etc.
- Photo sensor: silicon diode, filtered
- Cosine correction for angular incident light
- Data-hold function, to freeze the current measurement
- Rotatable sensor unit (+90 and -180°) for optimum alignment to the light source
- Track function for continuous recording of changing environmental conditions
- By pressing the key, the current measured value can be frozen until the key is pressed again
- Selectable measuring units: fc (foot-candle), lux
- Easy to toggle between units at the press of a button
- Option of fitting a stand on the rear of the housing, ¼" thread
- Sturdy protective cover for the photo sensor
- Increased service life: Impact protection through delivery in a soft box with light protection
