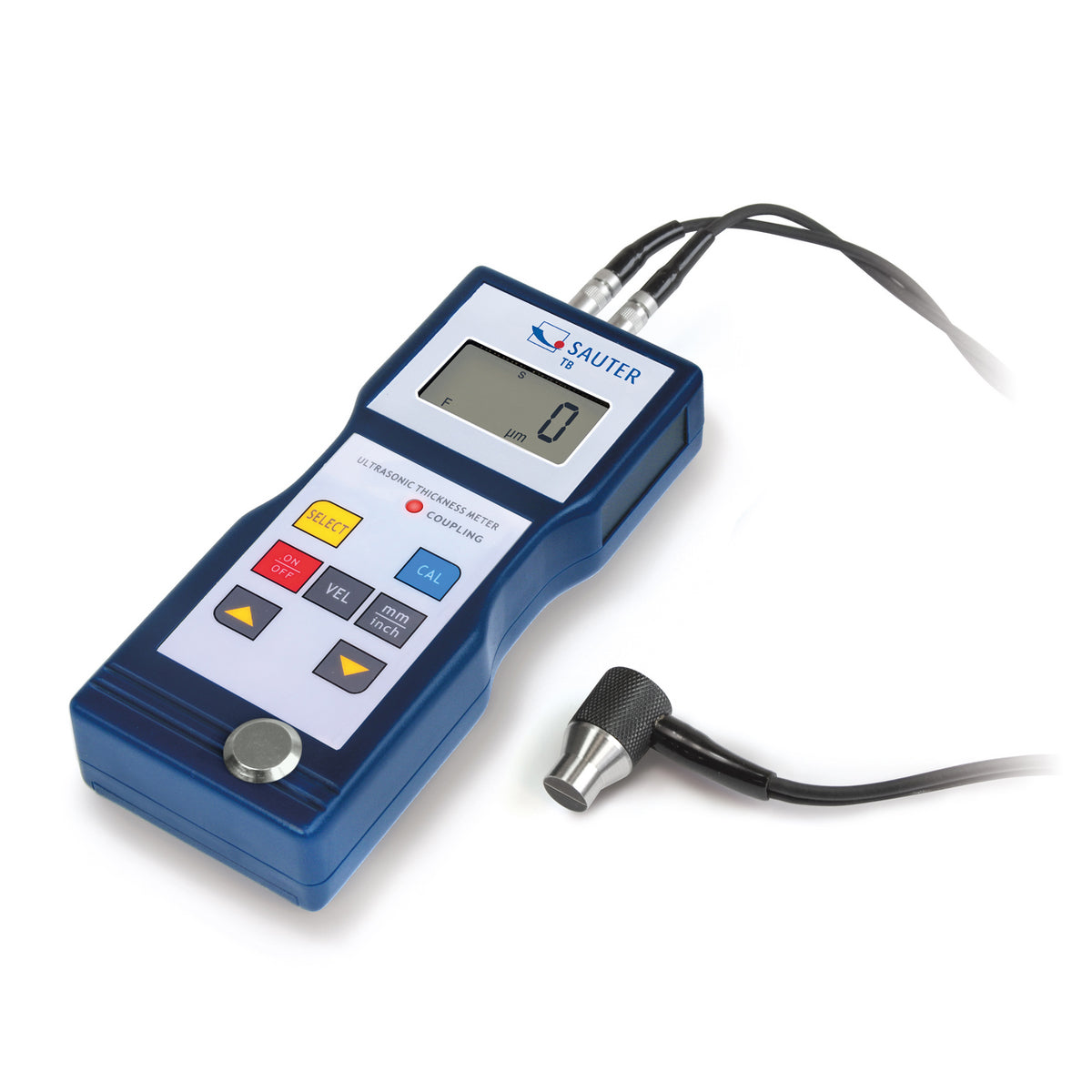

Sauter TB 200-0.1US Ultrasonic Thickness Gauges, Reliable material thickness gauge for daily use
SKU:Code: TB200-0.1US
Sale
Sold out
Regular price
£364.50
Save: 10%
Sold out
Sale price
£364.50
Regular price
£405.00
Excl. VAT
Ultrasonic Material thickness gauge pulse-echo method TB 200-0.1US, measuring range 1,5 mm – 200 mm, readout 0,1 mm
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- brand Sauter
description
description
| Material thickness pulse-echo [Max] (mm) | 200 mm |
| Material thickness pulse-echo [Min] (mm) | 1,5 mm |
| Measuring range pulse-echo | 1,5 mm – 200 mm |
| Readability material thickness [d] (mm) | 0,1 mm |
| Tolerance (% of [Max]) | 0,5% |
| Units | mm, inch |
| Speed of sound [Max] (m/s) | 9999 m/s |
| Speed of sound [Min] (m/s) | 500 m/s |
| Speed of sound | 500 m/s – 9999 m/s |
- External measuring head for difficult-to-access measuring points
- Base plate for adjustment included
- Auto-Power-Off
- Selectable measuring units: mm inch
- Scope of delivery: Operating instructions, batteries, external measuring head (∅ 8 mm) and ultrasound contact gel
- Delivered in a robust carrying case
