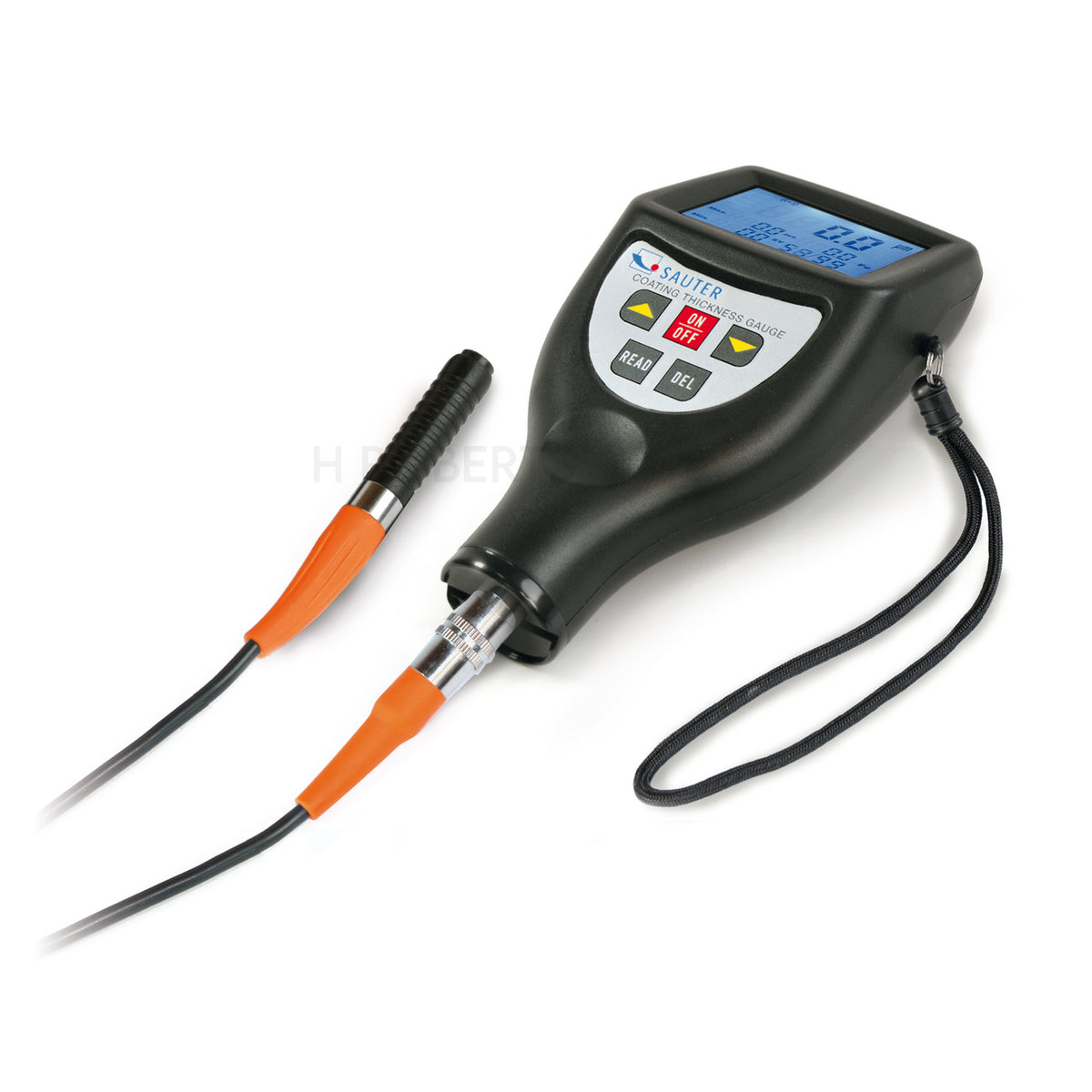

Sauter TG 1250-0.1FN Coating Thickness Gauges, Range 100 µm-1250 µm, Premium coating thickness gauge for paint layer, lacquer layer etc.
SKU:Code: TG1250-0.1FN
Sale
Sold out
Regular price
£540.00
Save: 10%
Sold out
Sale price
£540.00
Regular price
£600.00
Excl. VAT
Digital coating thickness gauge TG 1250-0.1FN, Max 100 µm; 1250 µm, readout 0,1 µm; 1 µm
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- brand Sauter
description
description
| Measuring range coating thickness [d] (µm) | 100 µm; 1250 µm |
| Readability coating thickness [d] (µm) | 0,1 µm; 1 µm |
| Tolerance (% of [Max]) | 3% |
| Units | µm, inch (mil) |
| Coating thickness gauge sensor type | FE, NFE |
| Test object thickness coating | Non-magnetic coatings on iron, steel, Type F, Coatings on non-magnetic metals, type N |
| Battery | 2×1.5 V AAA |
- External sensor for difficult-to-access measuring points
- LCD display, backlit, display of all information at a glance
- Offset-Accur: This function allows you to adjust the instrument precisely on the locally measured range by a two-point calibration. This results in a superior accuracy of 1 % (or less) of the measured value
- Two different measuring modes: single measurement and scan mode for continuous measurement
- Mini Statistics Kit: displays the measured result, the average value and the max and the min value
- Internal memory for up to 99 measurement values
- Selectable measuring units: µm inch (mil)
- Base plate and calibration foils included
- Data interface RS-232 as standard
- Delivered in a robust carrying case
