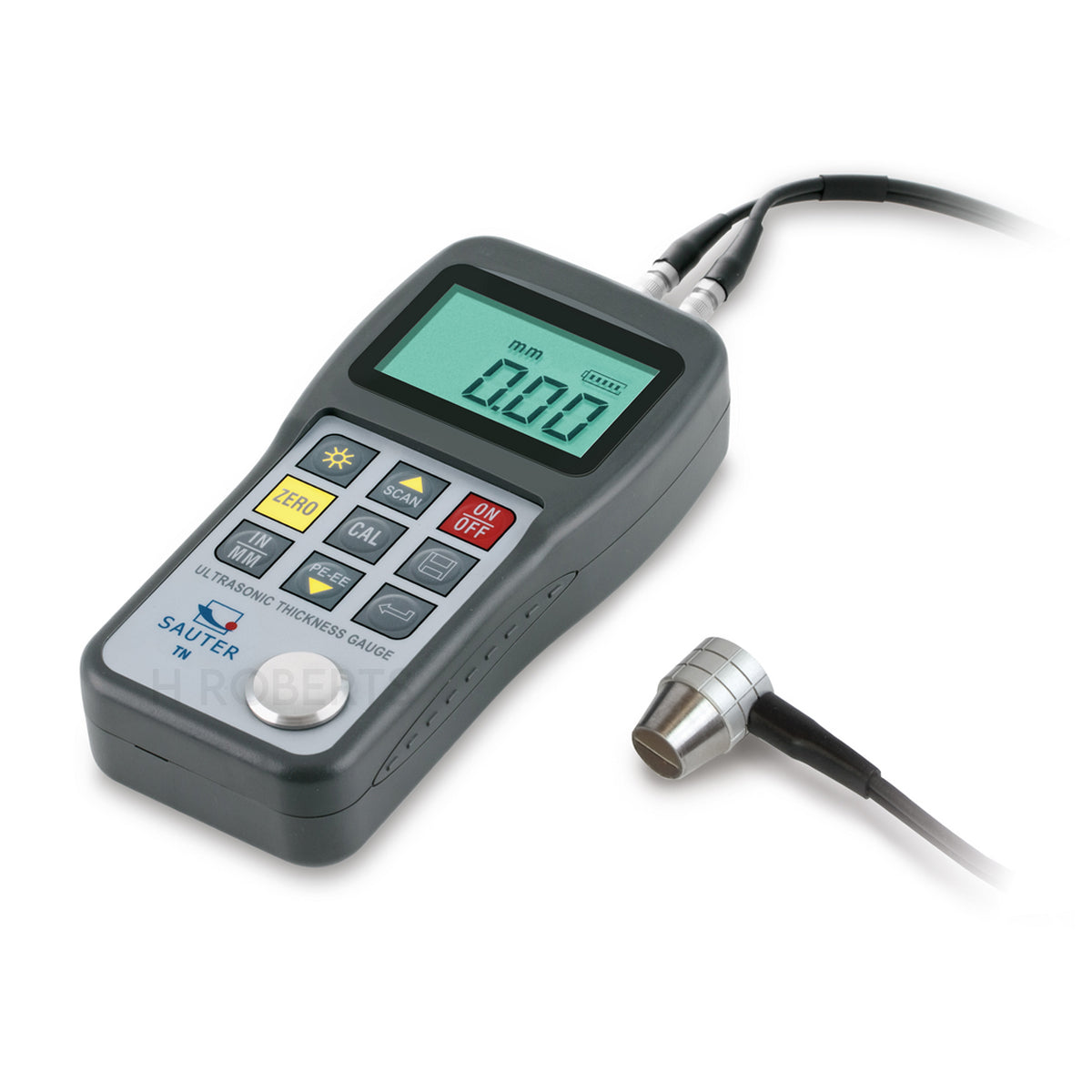

Sauter TN 230-0.1US Ultrasonic Thickness Gauges, Material thickness pulse-echo, Max 230mm MIN 1.2mm, Res 0.1mm, Portable measuring device for ultrasonic material thickness testing

Code: TN230-0.1US

Sale Sold out £567.00
Save: 10% Sold out £567.00 £630.00
Excl. VAT
Ultrasonic Material thickness gauge pulse-echo method TN 230-0.1US, measuring range 1,2 mm – 230 mm, readout 0,1 mm

Request a Quote

Add to Compare

  • The UKs Leading Metrology Distributor

  • Trusted by the biggest companies in the UK

  • Need more information? Ask a question or contact us.
View full details
Specification
  • brand Sauter
description
Material thickness pulse-echo [Max] (mm) 230 mm
Material thickness pulse-echo [Min] (mm) 1,2 mm
Measuring range pulse-echo 1,2 mm – 230 mm
Readability material thickness [d] (mm) 0,1 mm
Tolerance (% of [Max]) 0,5%
Units mm, inch
Speed of sound [Max] (m/s) 9999 m/s
Speed of sound [Min] (m/s) 1000 m/s
Speed of sound 1000 m/s – 9999 m/s
  • External measuring head
  • Scan mode (10 measurements per sec.) or single point measuring mode possible
  • Internal memory for up to 20 files (with up to 100} values per file)
  • Selectable measuring units: mm inch
  • Scope of delivery: Operating instructions, batteries, external measuring head (∅ 10 mm) and ultrasound contact gel
  • Delivered in a robust carrying case
