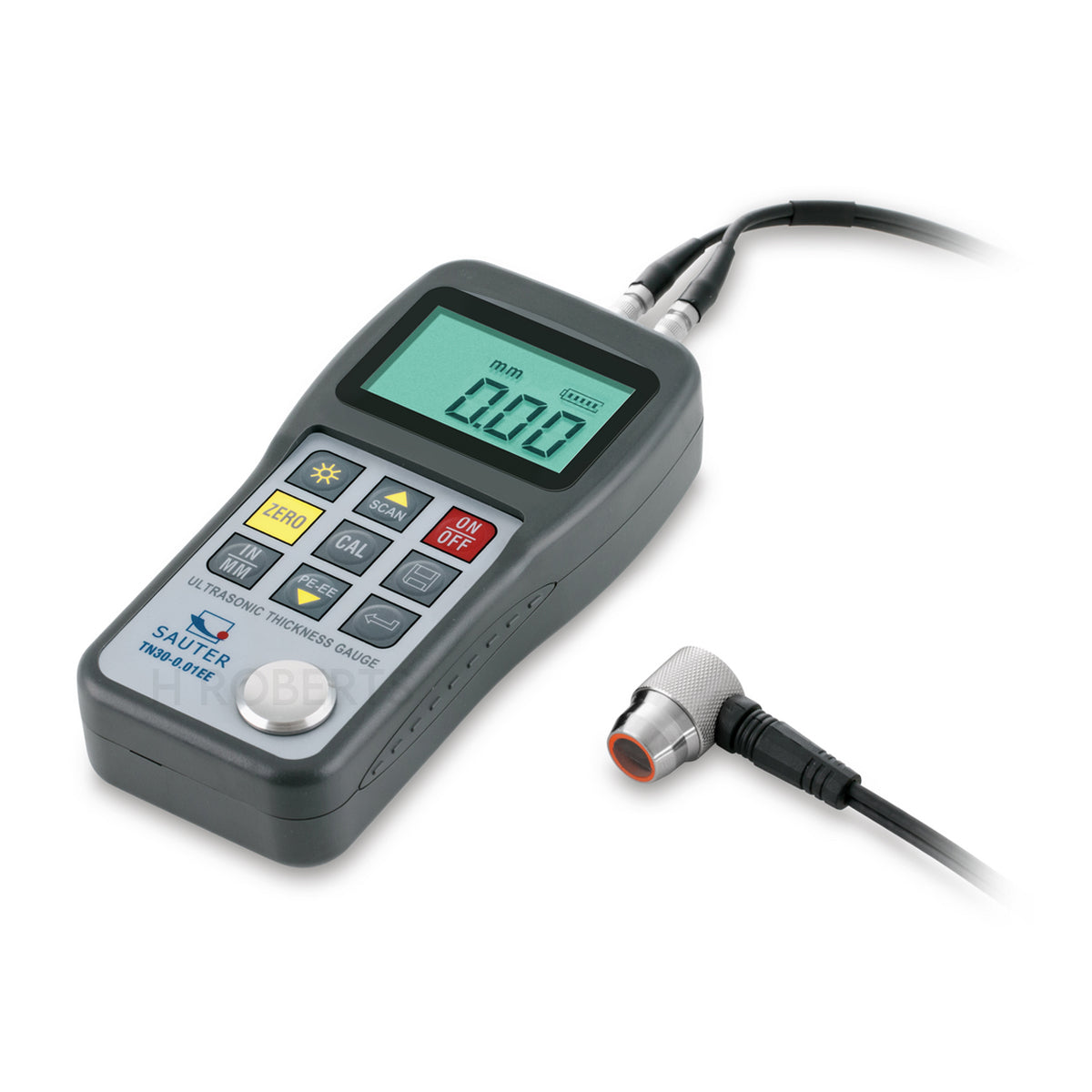

Sauter TN 30-0.01EE Ultrasonic Thickness Gauges, Material thickness pulse-echo, Max 30mm MIN 3mm, Res 0.01mm, Hand-held measuring device for ultrasonic material thickness testing in Echo-Echo principle
SKU:Code: TN30-0.01EE
Sale
Sold out
Regular price
£864.00
Save: 10%
Sold out
Sale price
£864.00
Regular price
£960.00
Excl. VAT
Ultrasonic Material thickness gauge Echo-Echo Method TN 30-0.01EE, measuring range Echo-Echo 3 mm – 30 mm, measuring range Pulse-Echo 0,65 mm – 600 mm, readout 0,01 mm
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- brand Sauter
description
description
| Measuring range pulse-echo | 0,65 mm – 600 mm |
| Measuring range echo-echo | 3 mm – 30 mm |
| Readability material thickness [d] (mm) | 0,01 mm |
| Tolerance (% of [Max]) | 0,5% |
| Units | mm, inch |
| Speed of sound | 1000 m/s – 9999 m/s |
| Measuring head measuring frequency | 5 MHz |
| Battery | 2×1.5 V AA |
- External measuring head
- USB data interface, as standard
- Scan mode (10 measurements per sec.) or single point measuring mode possible
- Internal memory for up to 20 files (with up to 100} values per file)
- Selectable measuring units: mm inch
- Two measuring modes to determine material thickness:
- Pulse-Echo mode
- Echo-Echo mode - Echo-Echo measuring: Determining the actual thickness of materials irrespective of any coating which might be present. In this way, the wall thickness of pipes, for example, can be determined in a non-destructive manner, without having to remove the coating and the measurement can be shown on the display, with the adjustment for the coating thickness already taken into account
- Echo-Echo measurements are only possible with the measuring head included as part of the delivery (SAUTER ATU-US12, see internet)
- Scope of delivery: Operating instructions, batteries, external measuring head (∅ 10 mm) and ultrasound contact gel
- Delivered in a robust carrying case
