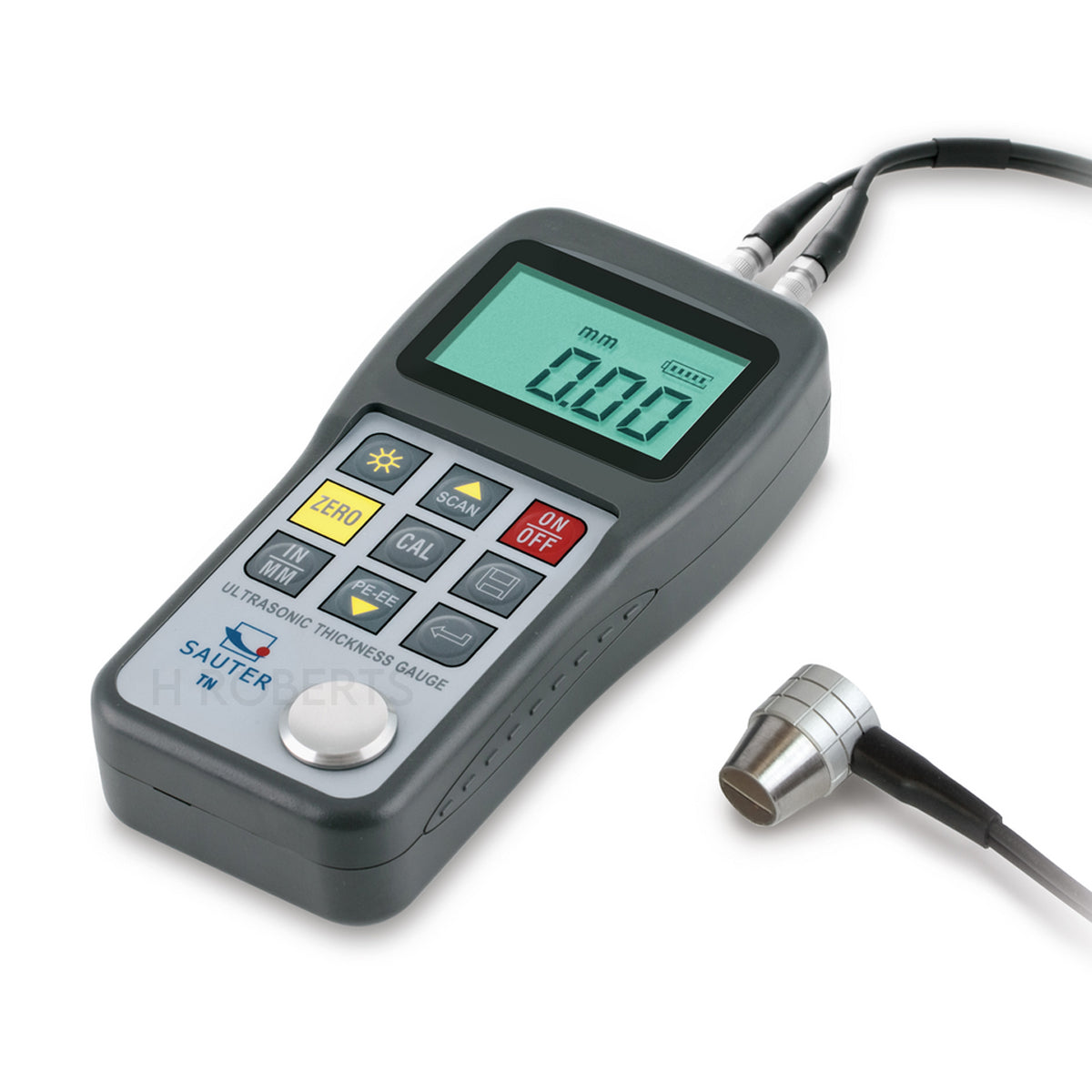

Sauter TN 80-0.01US Ultrasonic Thickness Gauges, Max 80mm MIN 0.75mm, Res 0.01mm, Portable measuring device for ultrasonic material thickness testing
SKU:Code: TN80-0.01US
Sale
Sold out
Regular price
£630.00
Save: 10%
Sold out
Sale price
£630.00
Regular price
£700.00
Excl. VAT
Ultrasonic Material thickness gauge pulse-echo method TN 80-0.01US, measuring range 0,75 mm – 80 mm, readout 0,01 mm
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- brand Sauter
- range Max 80mm MIN 0.75mm
- resolution 0.01 mm
description
description
| Material thickness pulse-echo [Max] (mm) | 80 mm |
| Material thickness pulse-echo [Min] (mm) | 0,75 mm |
| Measuring range pulse-echo | 0,75 mm – 80 mm |
| Readability material thickness [d] (mm) | 0,01 mm |
| Tolerance (% of [Max]) | 0,5% |
| Units | mm, inch |
| Speed of sound [Max] (m/s) | 9999 m/s |
| Speed of sound [Min] (m/s) | 1000 m/s |
| Speed of sound | 1000 m/s – 9999 m/s |
- External measuring head
- Data interface USB standard
- Scan mode (10 measurements per sec.) or single point measuring mode possible
- Internal memory for up to 20 files (with up to 100} values per file)
- Selectable measuring units: mm inch
- Scope of delivery: Operating instructions, batteries, external measuring head (∅ 6 mm) and ultrasound contact gel
- Delivered in a robust carrying case
