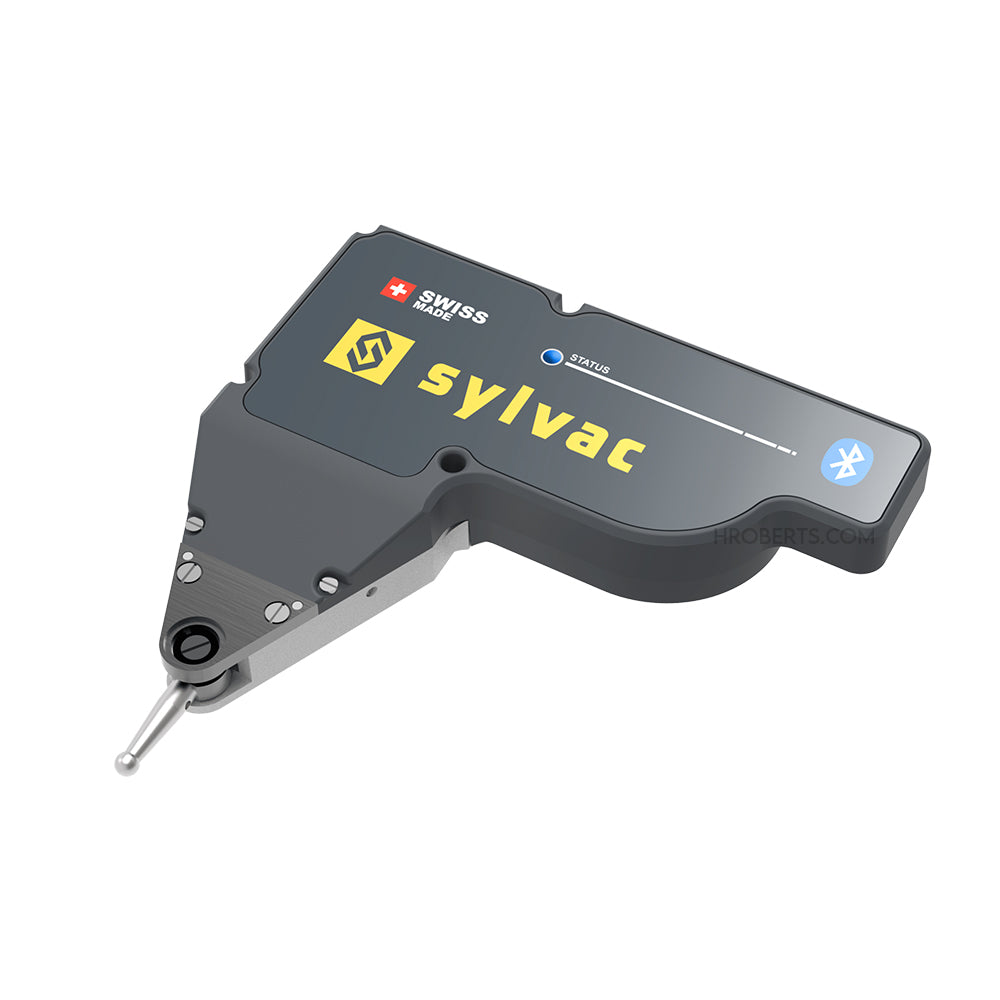

Sylvac Lever Probe Features

Exceptional Measurement Capabilities

Sylvac’s absolute lever probe delivers an impressive resolution of 0.01 µm for the most demanding measurement tasks. Engineered for reliability, it minimizes hysteresis to ensure consistent and accurate results with outstanding repeatability and accuracy.

Direct Digital Output

The probe can be connected directly to a computer via Bluetooth® wireless technology, allowing for seamless integration with data acquisition software such as Sylcom without the need for additional modules or display units.

Compact and Versatile Design

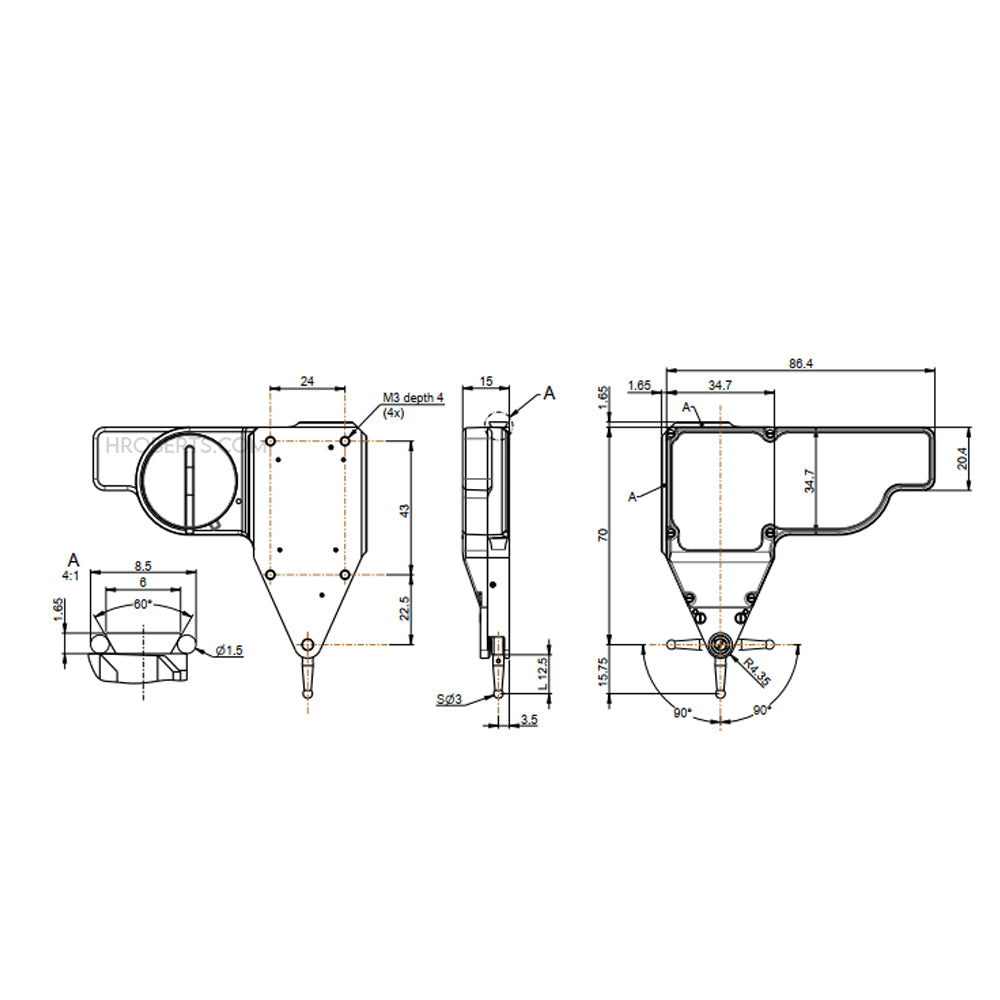

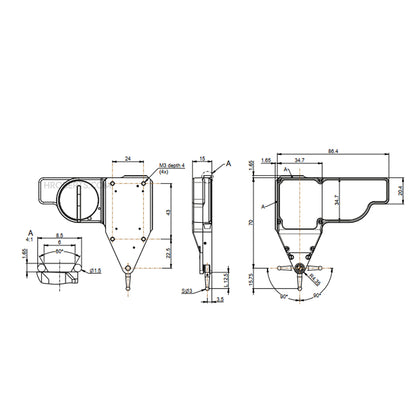

With a maximum thickness of 16 mm, it’s tailored for applications in tight spaces and offers a dovetail mounting system for maximum flexibility. Our lever probe can handle a variety of setups, from jigs and fixtures to integration with height gauges or PLCs.

Key Applications:

• Integration into measuring jigs and fixtures
• Integration into automation, interaction with PLC
• Installation and maintenance of machines
• Laboratory measurements, e.g., flatness, runout, or perpendicularity
• Workshop applications, measurements on the machine
• Measurement with height gauge

Use Cases:

• Measurements in restricted or enclosed spaces
• Assessing geometric tolerances (e.g., runout, concentricity)
• Non-contact surfaces not measurable via optical systems
• Dynamic measurements

Exceptional Compatibility

Sylvac’s lever probes are fully compatible with the following Sylvac software and display units:

• D300S
• D400S*
• D62S*
• Sylcom: Version 1.3.1 and higher (USB)
• Vmux: Version 1.35 and higher (USB)
