Sylvac

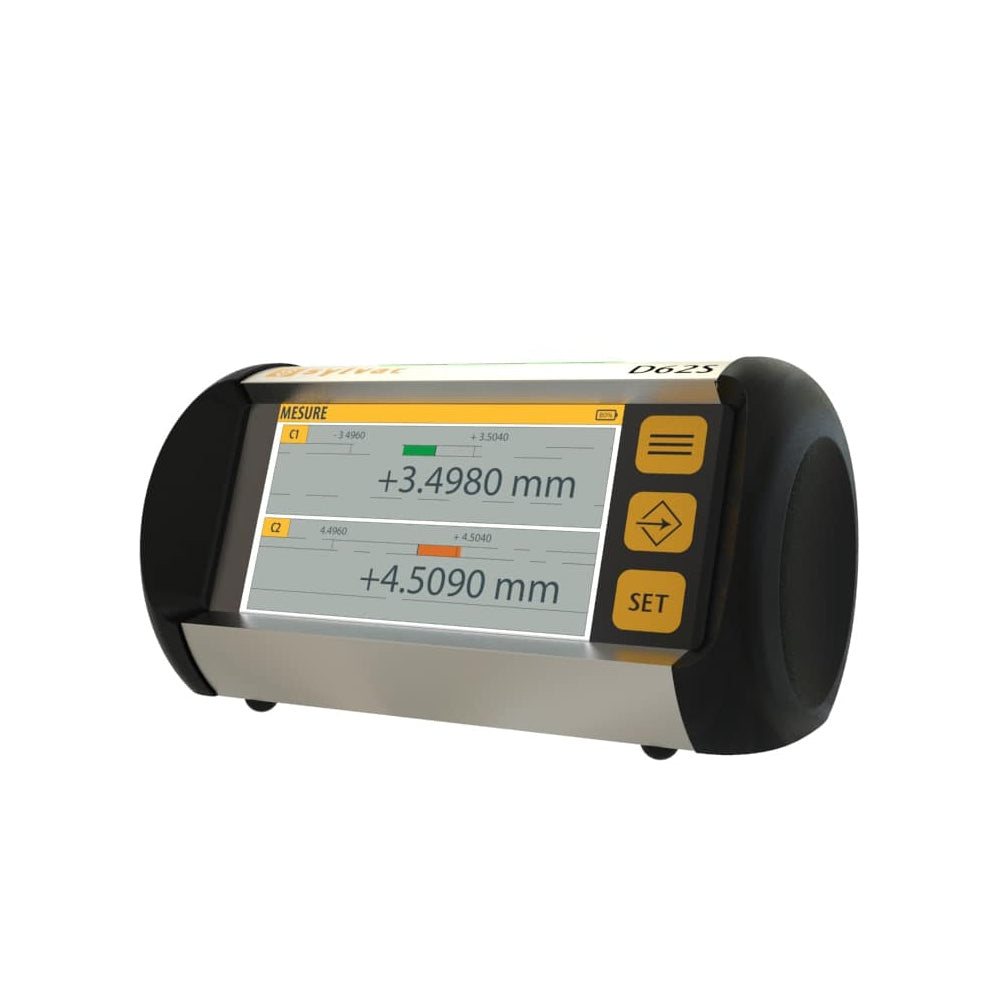

30-804-1063 D62S Digital Display Unit Advanced, Resolution up to 0.0001mm / 0.1μm, Bluetooth, Output Data USB / RS232, 2 Probe Inputs, Mains and Battery

SKU:Code: 30-804-1063

Sale Sold out Regular price £1,910.03
Save: 3% Sold out Sale price £1,910.03 Regular price £1,959.00
Excl. VAT
New table display unit for digital P12D measuring probes.Shockproof construction. 2 inputs with connectors type M8 : - display of channel 1 value - display of channel 2 value - display of the combined value of channel 1 - or + that of channel 2 - Automatic detection and display of the channel used. Large 4.3’’ colour touch screen with intuitive functions. Resolution up to 0.00001 mm (0.01 μm). Central button with selectable favourite function. Wide range of functions, including MIN/MAX/DELTA. Connector for optional pedal 904-4101. USB and RS232 data outputs IP54 liquid-proof front panel for workshop use. Advanced version with battery, Bluetooth® system and tolerance status indication via integrated LED bar
  • The UKs Leading Metrology Distributor

  • Trusted by the biggest companies in the UK

  • Need more information? Ask a question or contact us.

View full details
Specification
  • type Display Unit
description

Menu display. Favourite key. SET. Selection of channels. Formula. Analog display. Current value, mode MIN/MAX/DELTA. Measuring mode MIN/MAX/DELTA. ON/OFF switch. Probe inputs (M8 - P12D). RS232 inputs/outputs. Power-supply. mini/USB Device (PC connection). Footswitch input. Light indicator of the global tolerances

technical drawings
PDF downloads
accessories
