Sylvac

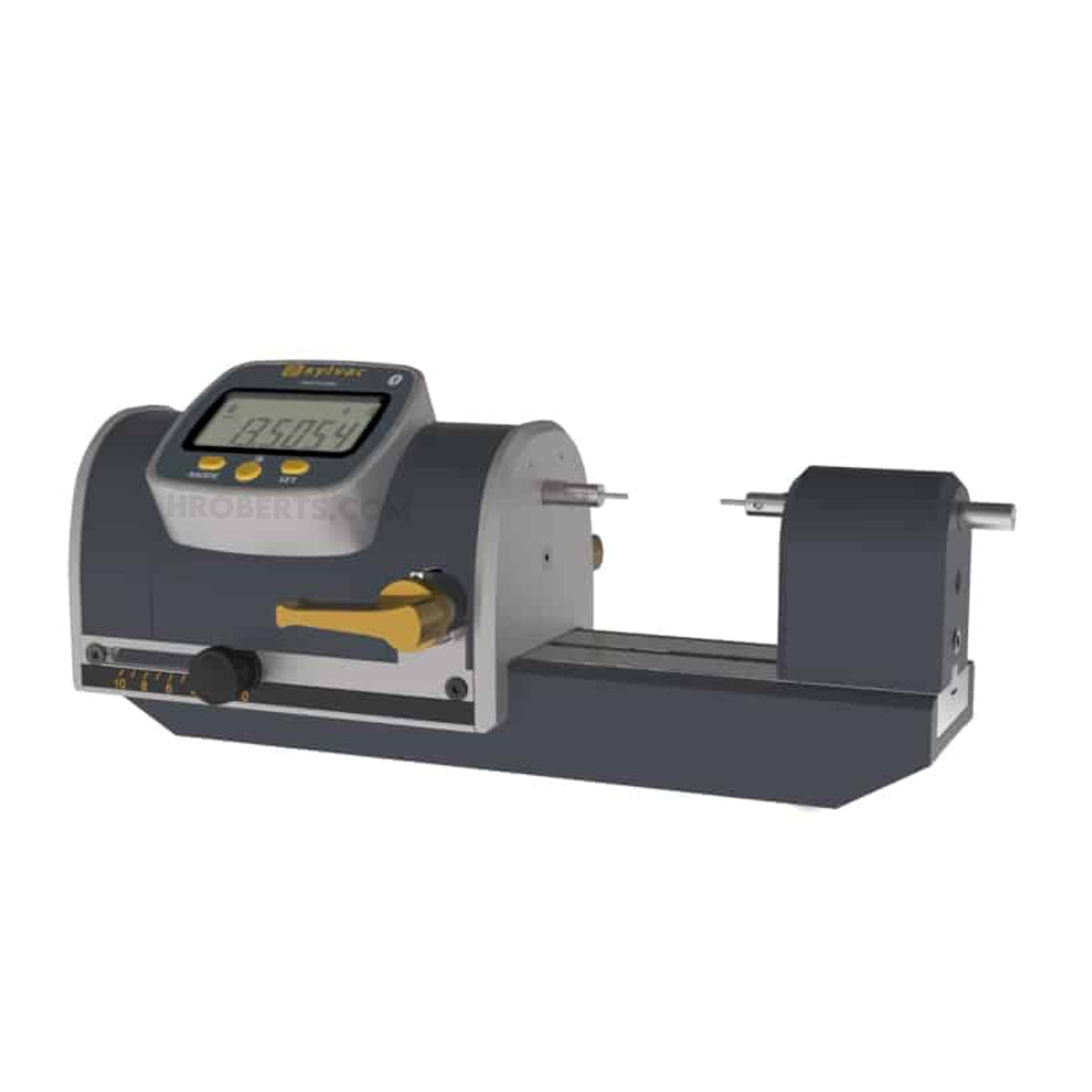

30-808-1232 PS16 Digital Measuring Bench Table Horizonal, Meassuring Range 50mm, Resolution 0.0001mm

Code: 30-808-1232

Sale Sold out £3,116.95
Save: 15% Sold out £3,116.95 £3,667.00
Excl. VAT

Request a Quote

Add to Compare

Instrument according to technical specifications. Instruction manual. Lithium battery CR2477 included. Adapter for Lithium battery CR2032.Calibration certificate. Anvils Ø 1.5mm. Dust cover

  • The UKs Leading Metrology Distributor

  • Trusted by the biggest companies in the UK

  • Need more information? Ask a question or contact us.
View full details
Specification
description

Precision horizontal measuring bench for the measurement of external dimensions. Robust cast iron construction. New design with integrated Bluetooth® system. Large display resolution 0.0001 mm (0.1 μm) with tolerance status indication by colour LEDs. Three buttons, including the central button with selectable favourite function. 2 ergonomic, position-adjustable levers for moving the movable axis with ball bearing guide. The position of the levers can be used to adjust the backward movement of the mobile axis. Compatible with Sylvac Ø 1.5 mm and Cary type anvils. Supplied with hard metal measuring anvils Ø 1.5 mm. Adjustable measuring force 0.1-0.6 N. Measuring range 50mm. Additional data outputs Power and Proximity. Protection class IP68
