Specification
Specification
- type Ultra Light
- range 0-600mm
- display type Digital
- resolution 0.01mm
- data output Yes
- ip rating IP67
- measuring units Metric
- bluetooth Yes
- jaw length 200mm
description
description

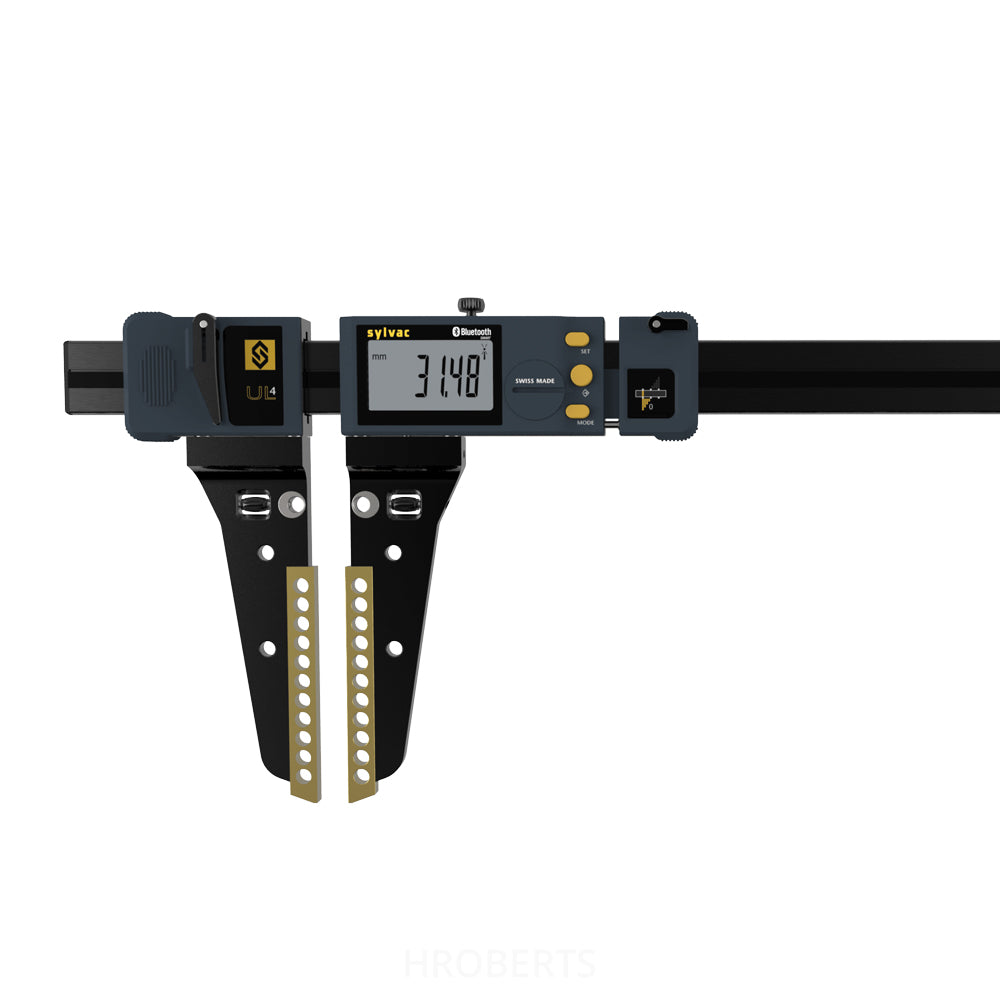

Ultra-light, large callipers with integrated Bluetooth® system, Frame made of special aluminium profile reinforced with 4 stainless steel guide rods, New XXL display unit with digits 20 mm high, Three buttons, including the central button with selectable favourite function, Measuring force control device, Long outer jaws 200 mm with measuring part made of hardened steel 124 x 8 mm coated with titanium nitride (TiN), Lever-lockable movable left jaw, Removable upper studs with hardened metal pin Ø 5 mm for internal measurements, Additional data output Proximity, Measuring range 400 to 3000 mm, Calibration certificate, Protection class IP68
