Sylvac

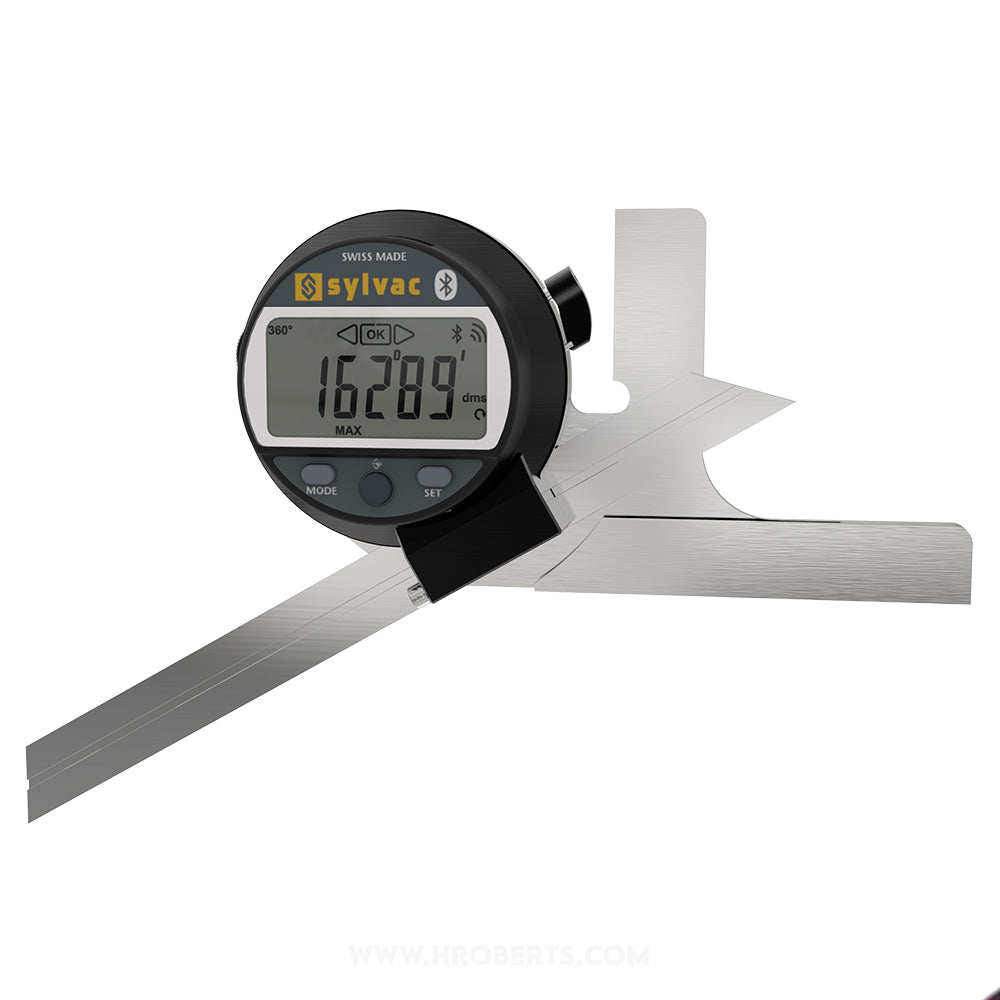

30-820-1706 Digital Universal Bevel Protractor, Blade Length 200mm / 8", Resolution 0.01° / 1 Minute of Arc (0°01’) / 0.0001 Rad
SKU:Code: 30-820-1706
Sale
Sold out
Regular price
£1,359.58
Save: 15%
Sold out
Sale price
£1,359.58
Regular price
£1,599.50
Excl. VAT
Protractor with integrated Bluetooth® system
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- graduations 5’ (0° - 90° - 0°)
- length Blade 200mm / 8"
description
description
Protractor with integrated Bluetooth® system, Housing Ø 59.5 mm rotatable by 270°. Large display with colour LED tolerance status indication, Angular value display in : Degrees, resolution 0.01° / Degrees/minute, resolution 0°01’ / Radian, resolution .0001, Three buttons, including the central button with selectable favourite function, Ruler length 200 mm (other lengths available as an option), Measuring range: 1 x 360°, 2 x 180°, 4 x 90°. Additional data outputs Proximity and Power,Protection class IP54
technical drawings
PDF downloads
accessories
