Tesa

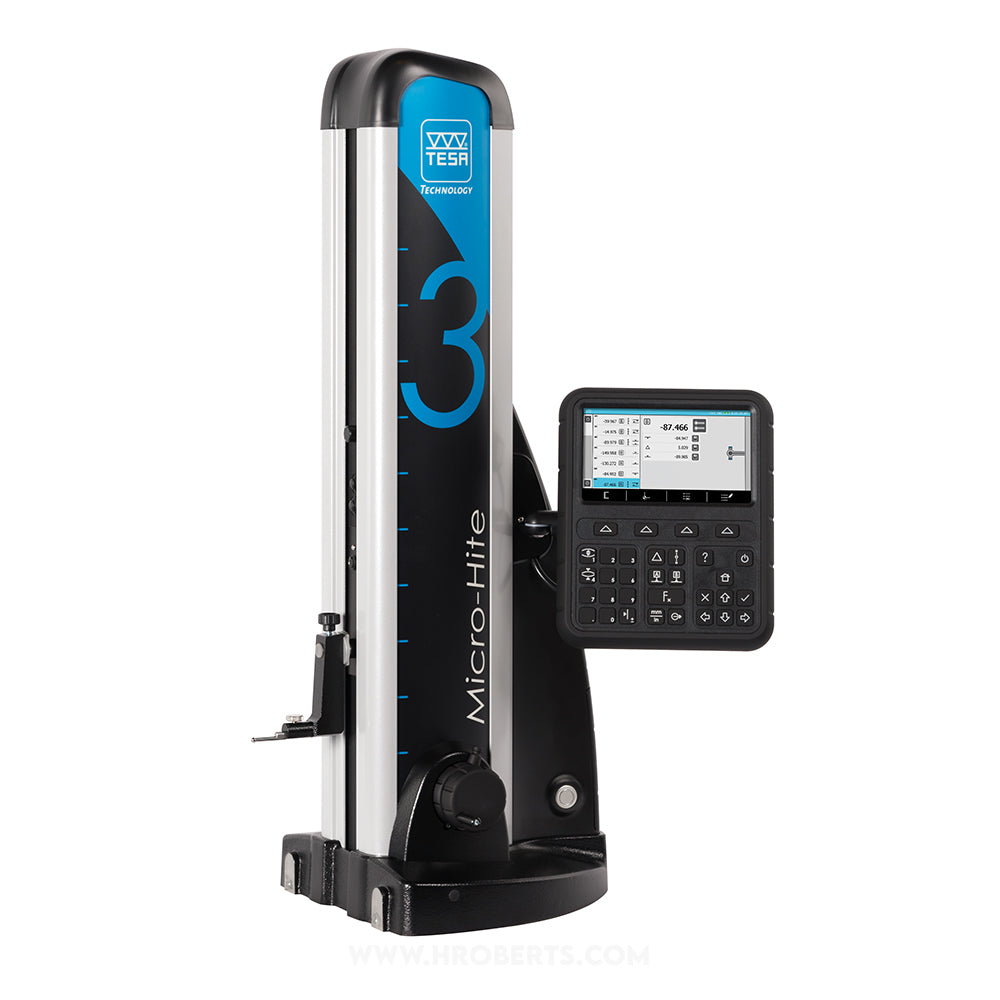

00730076 Micro-Hite 350F Digital Height Gauge with Fine Adjusment Device, Range 0 - 365mm / 0 - 14", Range of Application 0 - 520mm / 0 - 20", Resolution 0.01mm, 0.0001mm, 0.0001mm / 0.001", 0.0001", 0.00001"

SKU:Code: TESA-00730076

Sale Sold out Regular price £6,234.30
Sale Sold out Sale price £6,234.30 Regular price £6,927.00
Excl. VAT
Micro-Hite 350 Digital height gauge with fine adjust, manual displacement and air cushion
  • The UKs Leading Metrology Distributor

  • Trusted by the biggest companies in the UK

  • Need more information? Ask a question or contact us.

View full details
Specification
  • type Measuring
  • range 0-520mm / 0-20"
  • display type Backlit Digital Hybrid Touch Screen
  • resolution 0.0001mm / 0.000005"
  • accuracy 2+2L/1000
  • data output Yes
  • measuring force 1.6 ± 0.25 N
  • data storage Via USB
  • max permissible errors 2+2L/1000
  • repeatability 2μm
  • frontal squareness deviation 5μm
  • power supply 240v
  • mass 33kg
  • stored data Yes
  • stored programs Yes
  • battery Yes
  • autonomy Up to 8 hours
  • drive method Manual
  • power supply 240v
  • suspension Air cushion
  • multiple references 2
  • programmable Yes
  • tolerances Yes
  • preset function Yes
  • repeatability on bore 1μm
  • repeatability on plane 1μm
  • fine adjustment Yes
  • dust cover Optional
  • setting master Yes
  • temperature compensation Yes
  • min max delta Yes
  • statistics No
description
Tesa MICRO-HITE Brochure

The range of TESA height gauges consists in different models intended for monitoring operations during
manufacturing or directly for a processing machine. These gauges allow a reliable measurement during
the setting or sampling when the machining and the dimensions of parts turn out to be critical and need
accurate and immediate control.
