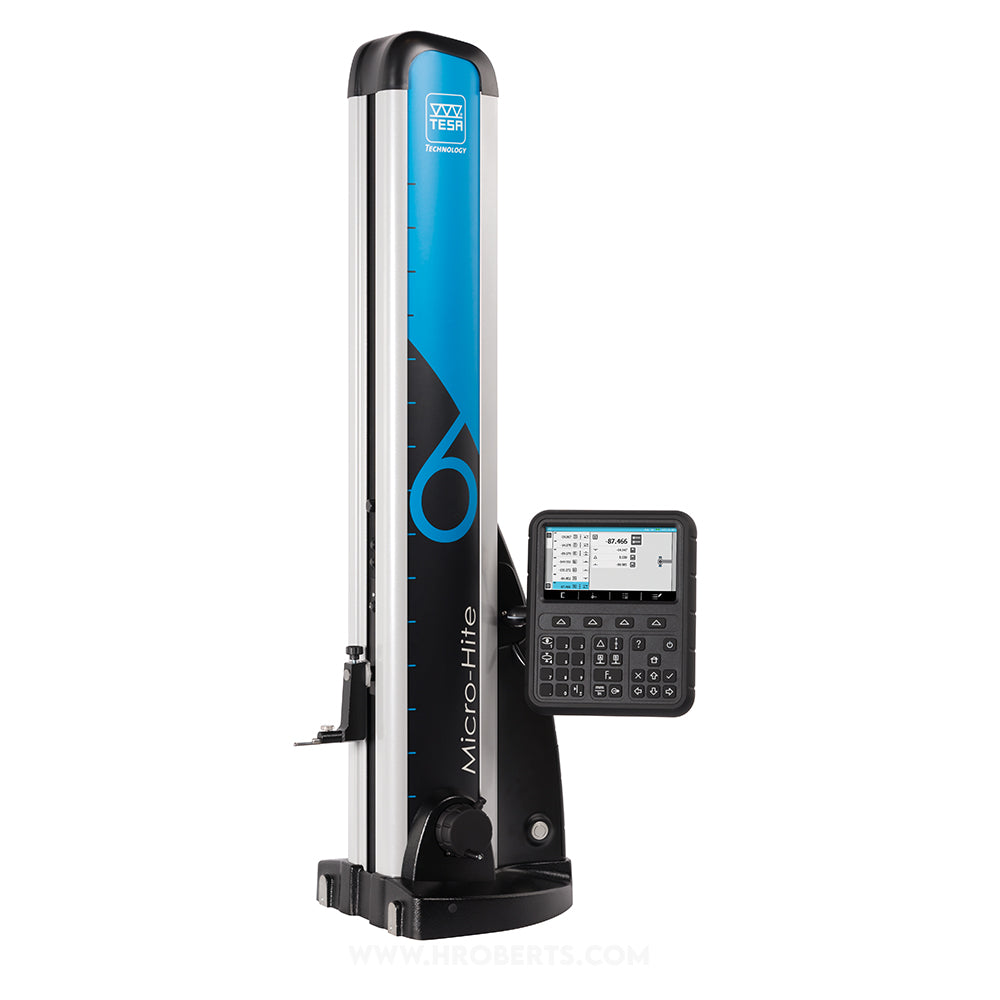

Tesa 00730077 Micro-Hite 600F Digital Height Gauge with Fine Adjusment Device, Range 0 - 615mm / 0 - 26", Range of Application 0 - 770mm / 0 - 30", Resolution 0.01mm, 0.0001mm, 0.0001mm / 0.001", 0.0001", 0.00001"
SKU:Code: TESA-00730077
Sale
Sold out
Regular price
£6,674.40
Sale
Sold out
Sale price
£6,674.40
Regular price
£7,416.00
Excl. VAT
Micro-Hite 600 Digital height gauge with fine adjust, manual displacement and air cushion
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Measuring
- range 0-770mm / 0-30"
- display type Backlit Digital Hybrid Touch Screen
- resolution 0.0001mm / 0.000005"
- accuracy 2+2L/1000
- data output Yes
- measuring force 1.6 ± 0.25 N
- data storage Via USB
- max permissible errors 2+2L/1000
- repeatability 2μm
- frontal squareness deviation 7μm
- power supply 240v
- mass 37kg
- stored data Yes
- stored programs Yes
- battery Yes
- autonomy Up to 8 hours
- drive method Manual
- power supply 240v
- suspension Air cushion
- multiple references 2
- programmable Yes
- tolerances Yes
- preset function Yes
- repeatability on bore 1μm
- repeatability on plane 1μm
- fine adjustment Yes
- dust cover Optional
- setting master Yes
- temperature compensation Yes
- min max delta Yes
- statistics No
