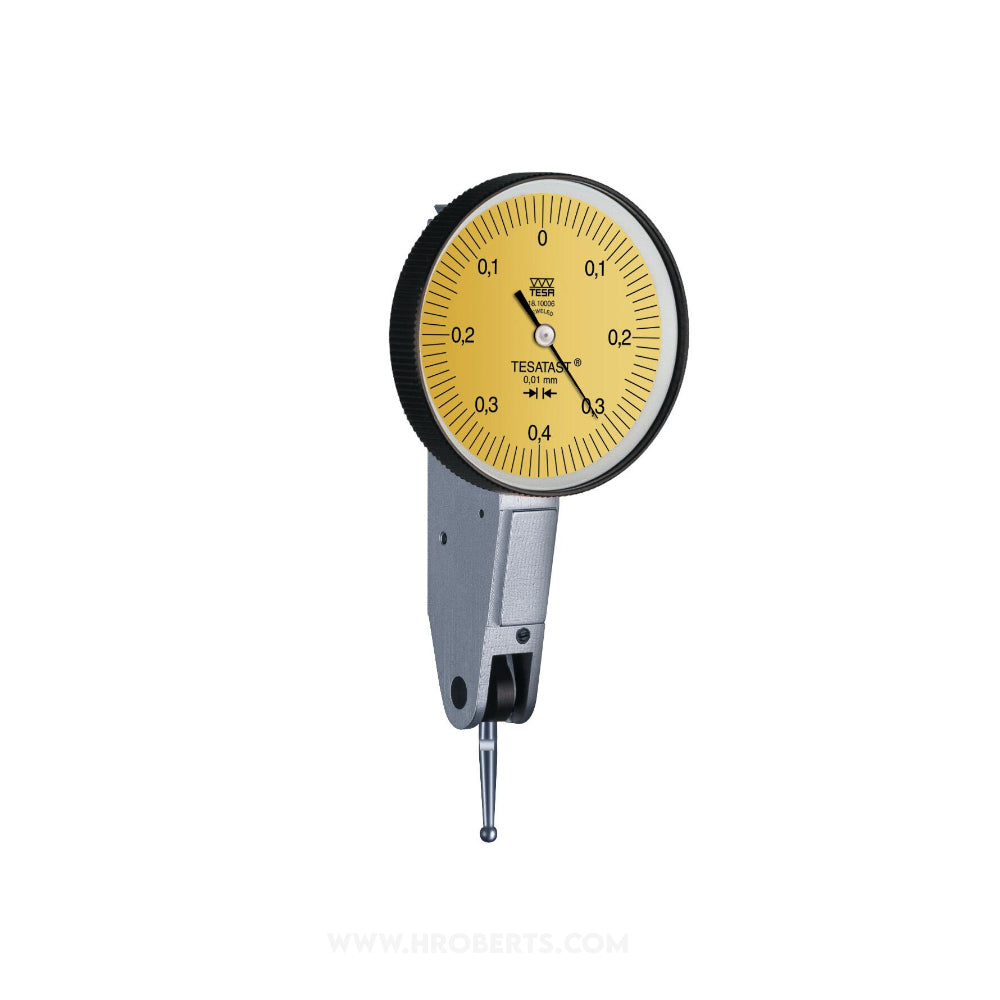

01810006 Tesatast Lever Dial Indicator Horizontal Type, Graduation 0.01mm, Range 0.8mm, Scale 0-0.4-0, Stylus Length 12.53mm, Bezel Diameter 38mm

SKU:Code: Tesa-01810006

Sale Sold out Regular price £114.40
Save: 20% Sold out Sale price £114.40 Regular price £143.00
Excl. VAT
Well proven over thousands of times. The dial face is parallel to the axis of the measuring inserts
  • The UKs Leading Metrology Distributor

  • Trusted by the biggest companies in the UK

  • Need more information? Ask a question or contact us.

View full details
  • type Horizontal Type
  • range 0.8mm
  • display type Non-Digital
  • graduations 0.01mm
  • bezel dia 38mm
  • measuring force 0.15 N
  • measuring units Metric
  • scale 0-0.4-0
  • contact point thread M1.4
  • repeatability limit 3 µm

These lever type dial test indicators are especially intended for use on the shop floor or in the inspection room. Ideally suited for comparative measuements on a surface plate for instance
