Tesa

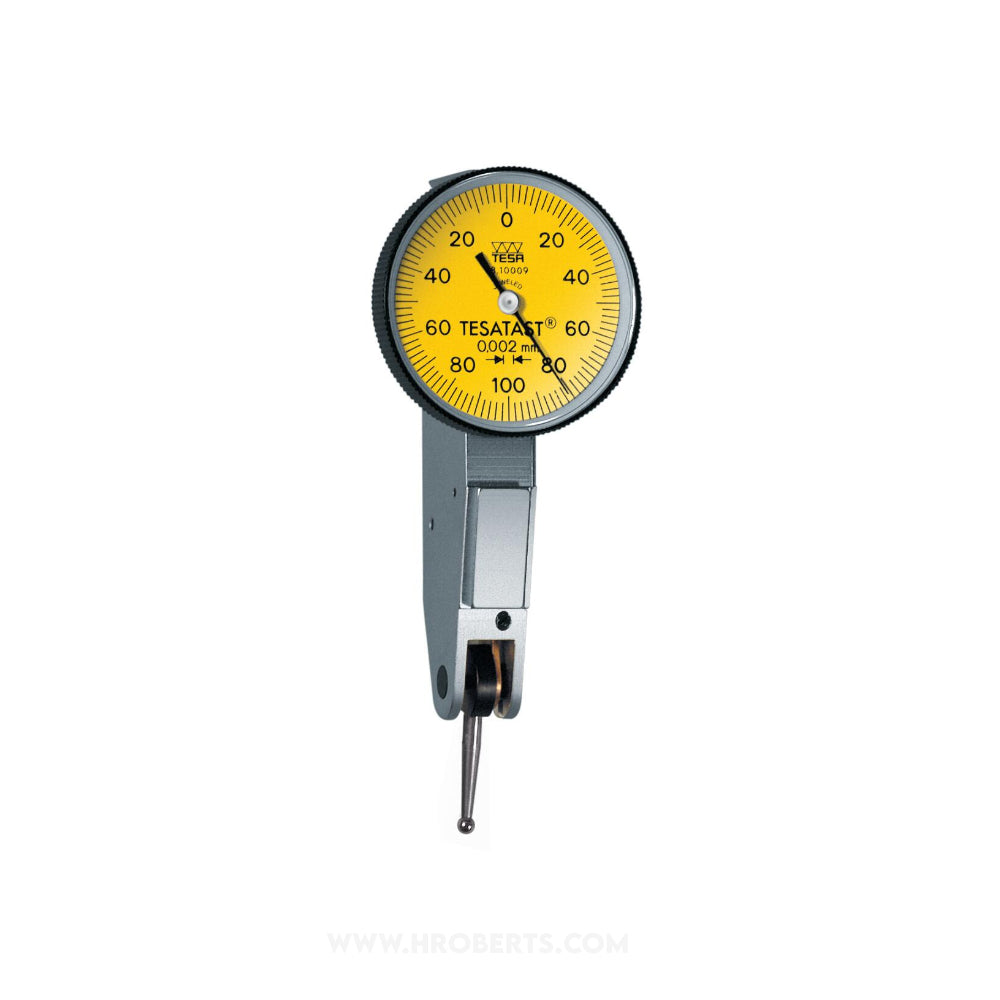

01810009 Tesatast Lever Dial Indicator Horizontal Type, Graduation 0.002mm, Range 0.2mm, Scale 0-100-0, Stylus Length 12.53mm, Bezel Diameter 28mm

SKU:Code: Tesa-01810009

Sale Sold out Regular price £123.20
Save: 20% Sold out Sale price £123.20 Regular price £154.00
Excl. VAT
Well proven over thousands of times. The dial face is parallel to the axis of the measuring inserts
  • The UKs Leading Metrology Distributor

  • Trusted by the biggest companies in the UK

  • Need more information? Ask a question or contact us.

View full details
Specification
  • type Horizontal Type
  • range 0.2mm
  • display type Non-Digital
  • graduations 0.002mm
  • bezel dia 28mm
  • measuring force 0.15 N
  • measuring units Metric
  • scale 0-100-0
  • contact point thread M1.4
  • repeatability limit 1 µm
description

These lever type dial test indicators are especially intended for use on the shop floor or in the inspection room. Ideally suited for comparative measuements on a surface plate for instance
