Tesa

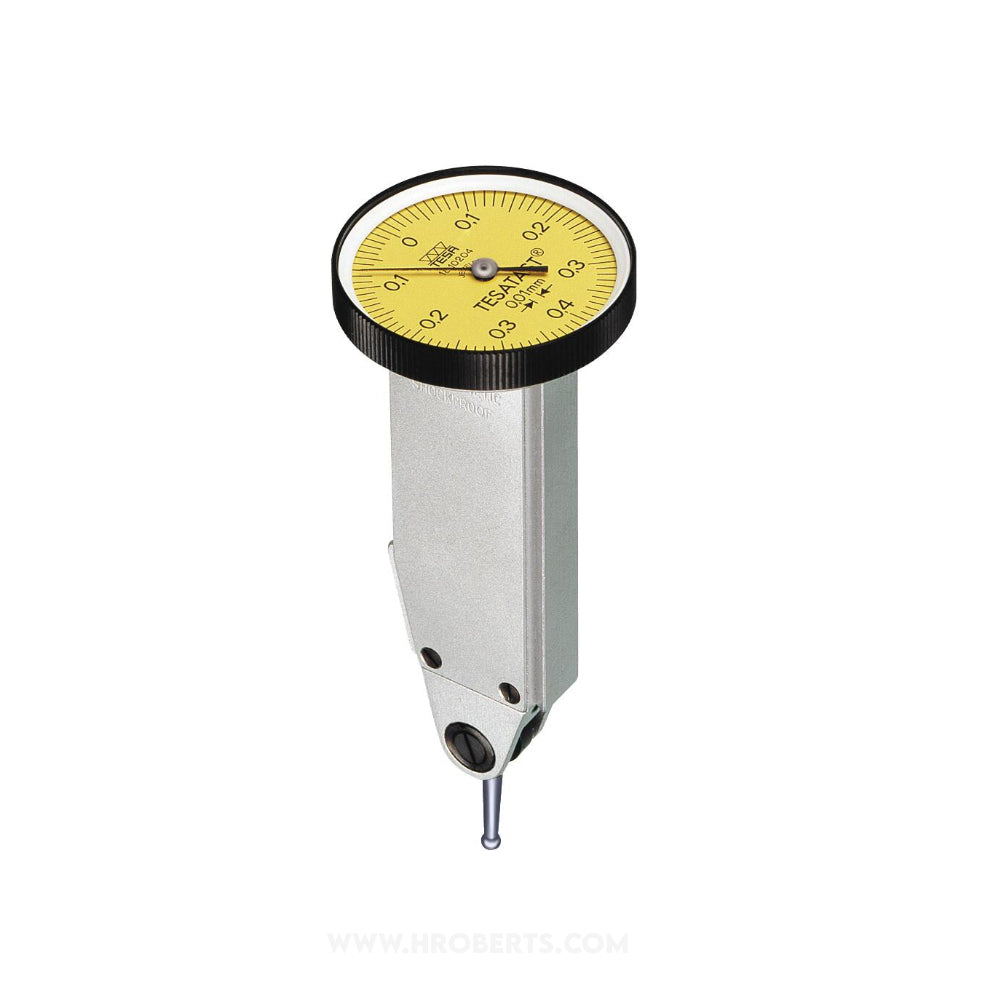

01810204 Tesatast Lever Dial Indicator Vertical Type, Graduation 0.01mm, Range 0.8mm, Scale 0-0.4-0, Stylus Length 12.53mm, Bezel Diameter 28mm

SKU:Code: Tesa-01810204

Sale Sold out Regular price £208.00
Save: 20% Sold out Sale price £208.00 Regular price £260.00
Excl. VAT
lever test indicator with dial face mounted at right angle to the axis of the measuring insert
  • The UKs Leading Metrology Distributor

  • Trusted by the biggest companies in the UK

  • Need more information? Ask a question or contact us.

View full details
Specification
  • type Vertical Type
  • range 0.8mm
  • display type Non-Digital
  • graduations 0.01mm
  • bezel dia 28mm
  • measuring force 0.15 N
  • measuring units Metric
  • scale 0-0.4-0
  • contact point thread M1.4
  • repeatability limit 3 µm
description

These lever type dial test indicators are especially intended for use on the shop floor or in the inspection room. Ideally suited for comparative measuements on a surface plate for instance
