Images are for illustration purposes only - Products may differ.
Tesa

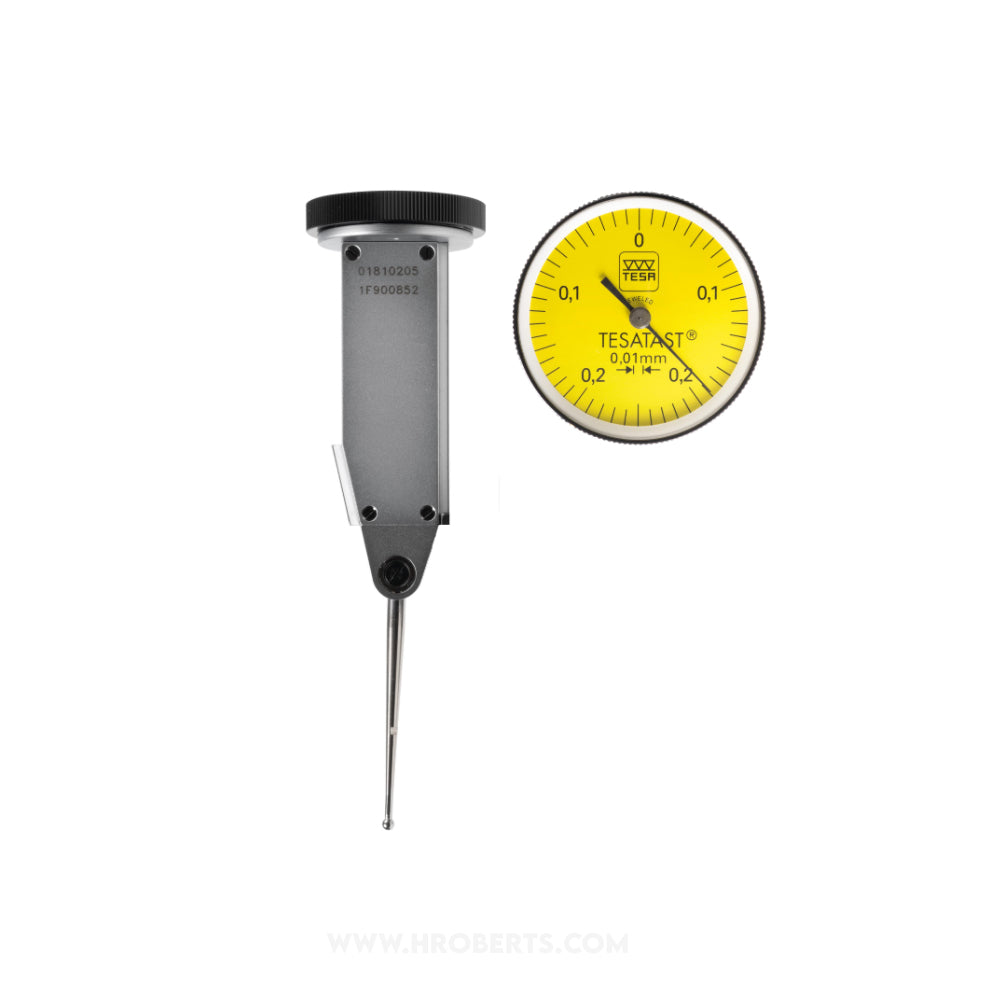

01810205 Tesatast Lever Dial Indicator Vertical Type, Graduation 0.01mm, Range 0.5mm, Scale 0-0.25-0, Stylus Length 36.53mm, Bezel Diameter 28mm
SKU:Code: Tesa-01810205
Sale
Sold out
Regular price
£291.20
Save: 20%
Sold out
Sale price
£291.20
Regular price
£364.00
Excl. VAT
lever test indicator with dial face mounted at right angle to the axis of the measuring insert
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Vertical Type
- range 0.5mm
- display type Non-Digital
- graduations 0.01mm
- bezel dia 28mm
- measuring force 0.06 N
- measuring units Metric
- scale 0-0.25-0
- contact point thread M1.4
- repeatability limit 3 µm
description
description
These lever type dial test indicators are especially intended for use on the shop floor or in the inspection room. Ideally suited for comparative measuements on a surface plate for instance
technical drawings
PDF downloads
accessories
