Tesa

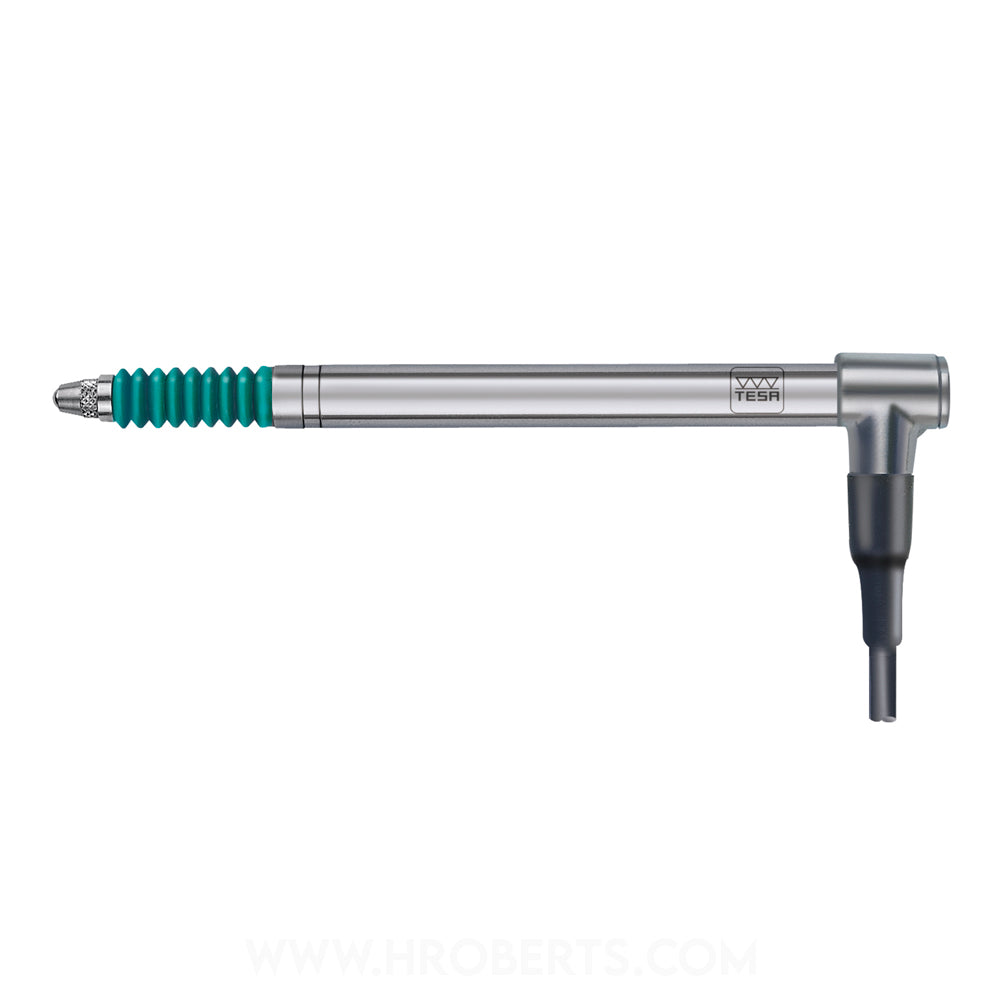

03230026 GT28 Transducer Probe, Measuring Range +/- 2mm, Nominal Measuring Force 0.63 N, 90 Degrees Cable
SKU:Code: TESA-03230026
Sale
Sold out
Regular price
£383.20
Save: 20%
Sold out
Sale price
£383.20
Regular price
£479.00
Excl. VAT
Universal inductive probe for various applications, especially for use with multigauging inspection fixtures, Long retraction travel to prevent the probe being damaged. Protectiom level IP65 as per IEC 60529
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Linear Probe
- range +/- 2mm
- ip rating IP65
- travel 10.3mm
description
description
• PROBE
- Long retraction travel to prevent the probe from being damaged
- Measuring bolt mounted on a ball bearing
- Guiding is insensitive to any radial force exerted on the measuring bolt
- Ø 8 mm probe housing, can be clamped over its entire length
- The guides are effectively protected against penetration of liquids (oils) or solids (dust) by sealing bellows
- Version with detachable cable available (depending on model)
• MEASUREMENT
- The measuring force can be adjusted by changing the spring (depending on model)
- The measuring inserts can be replaced or exchanged
