Images are for illustration purposes only - Products may differ.

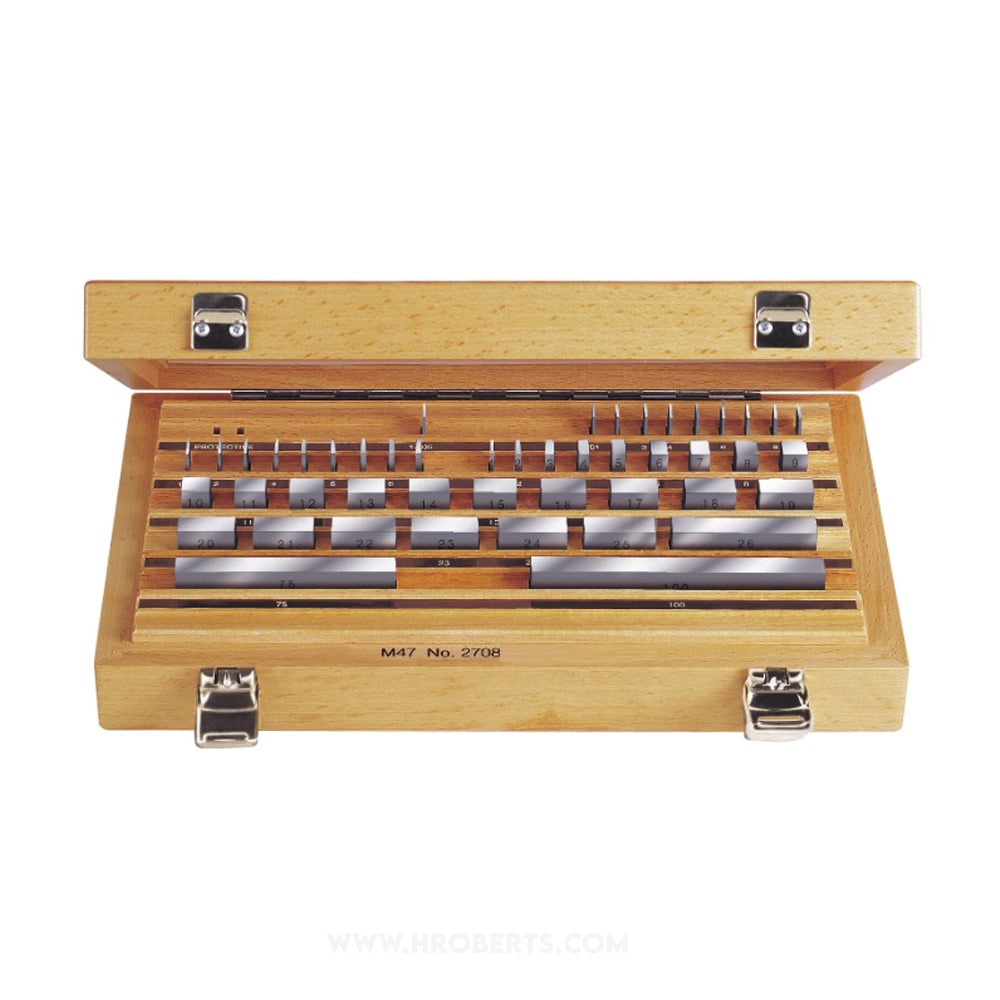

0651535021 Gauge Block Set, Metric M47, Grade 0, Ceramic

SKU:Code: TESA-0651535021

Sale Sold out Regular price £2,614.48
Save: 12% Sold out Sale price £2,614.48 Regular price £2,971.00
Excl. VAT
Gauge blocks are a system for producing precision lengths. The individual gauge block that has been precision ground and lapped to a specific thickness. Gauge blocks come in sets of blocks with a range of standard lengths. In use, the blocks are stacked to make up a desired length.
  • The UKs Leading Metrology Distributor

  • Trusted by the biggest companies in the UK

  • Need more information? Ask a question or contact us.

View full details
  • type Gauge Block Set
  • accuracy ISO3650
  • material Ceramic
  • measuring units Metric
  • Includes Inspection Certificate
  • grade 0
  • blocks per set 47
  • set configuration 1.005mm 1.01-1.09mm by 0.01 step 1.1-1.9mm by 0.1 step 1-24mm by 1 step 25-100mm by 25 step

They must me cleaned carefully after use, stored in a dry environment and be protected against corrosion
