Tesa

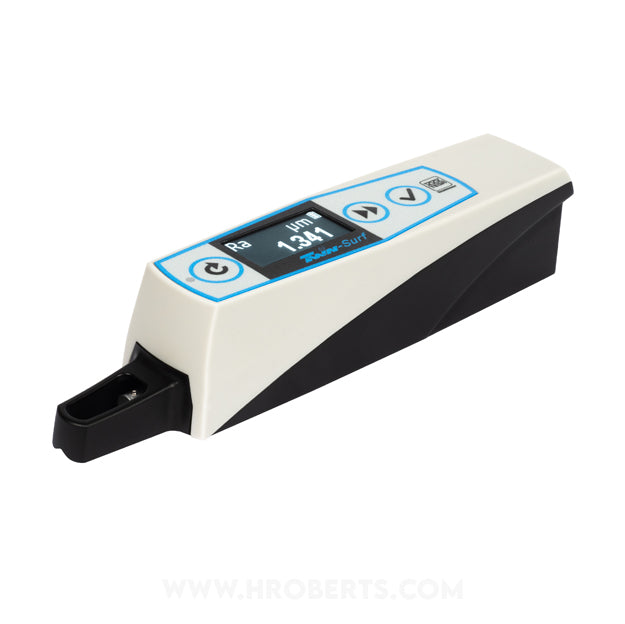

06930015 Twin-Surf Roughness Gauge, Bluetooth Version, Metric / Imperial, Measuring Range 17.5mm, Resolution 0.001µm / 0.01 µin, Stylus Tip Angle 90°, Radius 2μm

Code: TESA-06930015

Sale Sold out £2,048.38
Save: 13% Sold out £2,048.38 £2,341.00
Excl. VAT

Request a Quote

Add to Compare

Ultra-compact, portable and robust - High contrast display for comfortable reading in dark environments - 3 buttons on top of the product for easy instrument configuration - Interchangeable probes

  • The UKs Leading Metrology Distributor

  • Trusted by the biggest companies in the UK

  • Need more information? Ask a question or contact us.
View full details
Specification
  • type Standard
  • display type monochrome OLED display
  • resolution 0.001 µm / 0.01 µinch
  • style Skidded
description

AUTONOMY - Can be operated with power supply or battery. MEASUREMENT - Suitable for use in production environments or for incoming inspection - Access to narrow and deep areas thanks to the 100 mm probe extension (optional) - 90° probe orientation for cross-sectional measurements. FUNCTIONS (with DATA-STUDIO, basic version) - R-profile display - 13 roughness parameters available - 10 measurements usable for statistical processing - Storage of 10 measurement programs - Each parameter can be individually activated - Tolerancing possible for each parameter. DATA MANAGEMENT - Standard version connectable to a computer via cable - Bluetooth® version wirelessly connectable to a computer, tablet or smartphone - Free TESA DATA-STUDIO software (basic version) included for creating measurement reports, statistical management, measurement parameters,…
