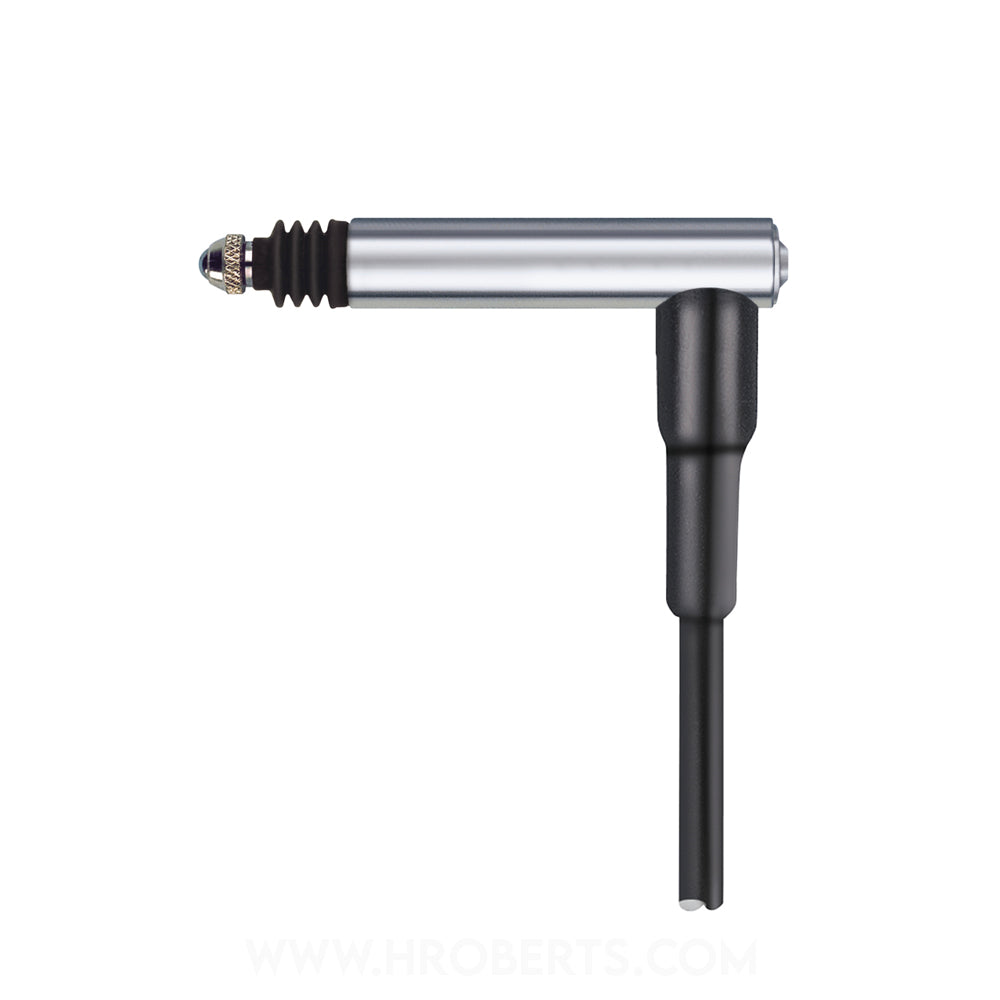

Tesa 96441041 451 Transducer Probe, Measuring Range +/- 0.5mm, Nominal Measuring Force 0.60 N, 90 Degrees Cable
SKU:Code: TESA-96441041
Sale
Sold out
Regular price
£492.00
Save: 20%
Sold out
Sale price
£492.00
Regular price
£615.00
Excl. VAT
Compact size and robust construction makes this probe ideal for frequent use. Probe body 8mm diameter . Clamping possible over entire length. Measuring bolt guided on ball bearing. Hard chrome plated probe body, hardened steel. Protection level IP62 as per IEC 60529
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Linear Probe
- range +/- 0.5mm
- ip rating IP62
- travel 2.1mm
- brand Tesa
description
description
• PROBE
- Measuring bolt mounted on a ball bearing
- Separate guiding from the housing so that the movement of the measuring bolt moves easily even if the probe is not clamped appropriately
- Guiding is insensitive to any radial force exerted on the measuring bolt
- Ø 8 mm probe housing, can be clamped over its entire length
- The guides are effectively protected against penetration of liquids (oils) or solids (dust) by sealing bellows
• MEASUREMENT
- The measuring inserts can be replaced or exchanged
technical drawings
PDF downloads
accessories
