Tesa

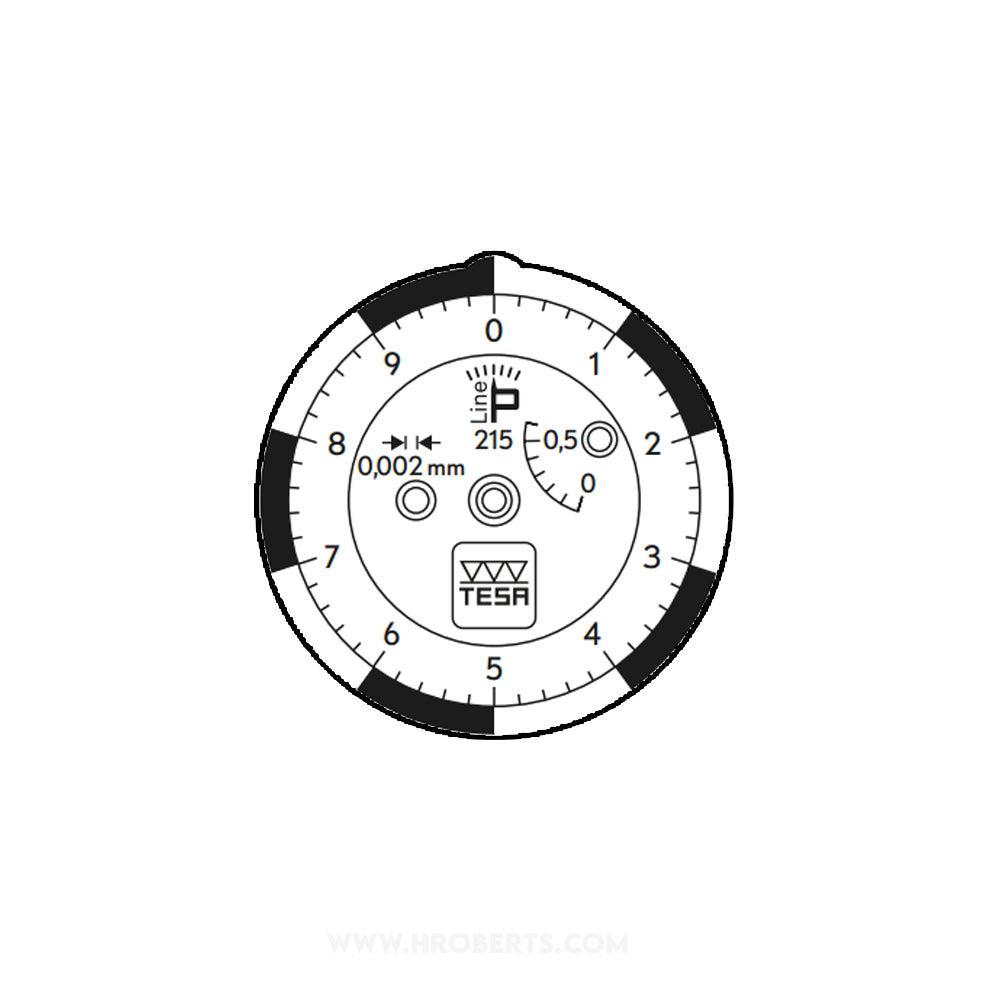

P-Line 01810404 Lever Dial Indicator Horizontal Type 215, Graduation 0.002mm, Range 0.6mm, Scale 0-5-10, Stylus Length 18mm, Bezel Diameter 27mm
SKU:Code: TESA-01810404
Sale
Sold out
Regular price
£380.00
Save: 20%
Sold out
Sale price
£380.00
Regular price
£475.00
Excl. VAT
The P-LINE range evokes the history of the internationally renowned COMPAC lever type dial test indicators
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Horizontal Type
- range 0.6mm
- display type Non-Digital
- graduations 0.002mm
- bezel dia 27mm
- measuring force 0.30 N
- measuring units Metric
- scale 0-5-10
- contact point thread M1.6
- repeatability limit 1.5 µm
description
description
Precision movement mounted on rubies, Secondary pointer with revolution counter, Movement with a very robust construction
technical drawings
PDF downloads
accessories
