Tesa

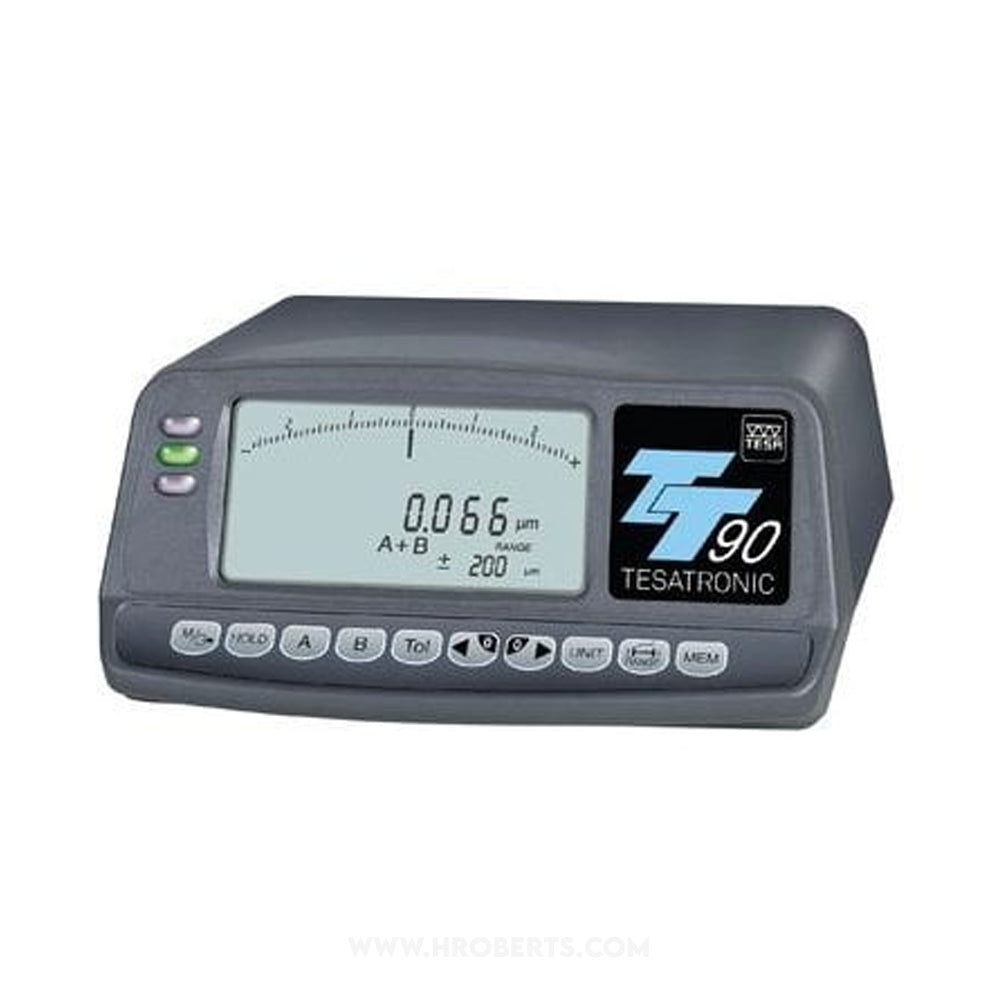

Tesatronic 04430012 TT90 Combined Analogue / Digital Display Unit with 6 Measuring Ranges with Numerical Interval to 0.001µm /0.5µin.
SKU:Code: TESA-04430012
This item is no longer available or has been discontinued.
Need more information? Ask a question or contact us.
- type TT90 Digital Display Unit
- range 0.001µm / 0.5µin
- display type Digital
- measuring units Metric / Imperial
Classification of values and display through colour LEDs with signal outputs. Locking of displayed values for step by step measurement routines. Automatic recognition of the type of connected TESA probe with adaptation of the measurement signals to the value of output. 9 measuring ranges, switchable manually or automatically according to the measured value. Dynamic measurement. Storage in the memory of extreme values Min, Max, Max-Min and average (Max, Min). Output signals through relay for 5, 10, 20 or 40 acceptable classes. Analogue output for exterior processing of signals. The specifications of the switchable TESATRONIC TT90 are identical to those of the TT80 model, except for the following added features: 6 measuring ranges with numerical interval to 0,001 µm or 0.5 µin. Output for the control of the bolt retraction. Selectable waiting period for temperature stabilisation between the measurement cycles. RS data output for all values to the micron
