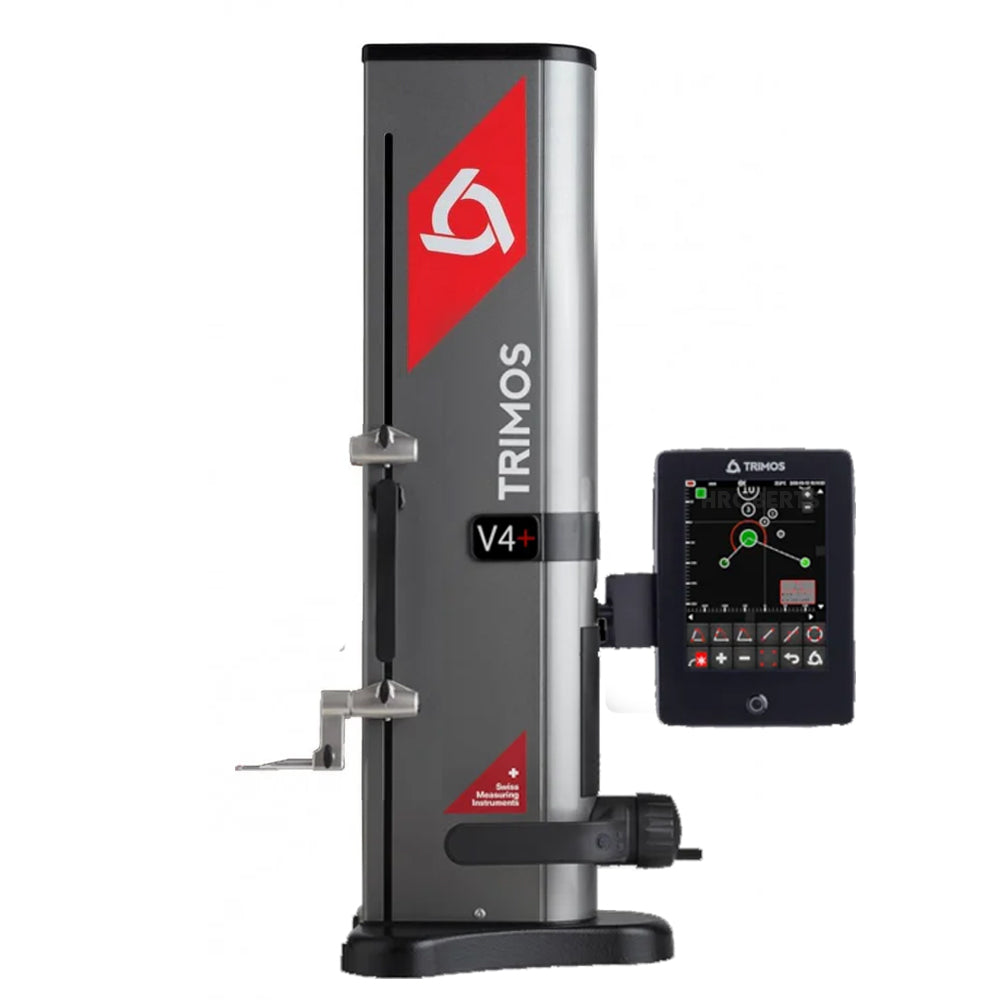

Trimos 20-V4+400 - 2D Digital Height Gauge V4+ Range 0 - 407mm / 0 - 16" with Extension 0 - 719mm / 0 - 28", Maximum Resolution 0.001mm / 0.00005" with Air Cushion
SKU:Code: 20-V4+400
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- type Measuring
- range 0-407mm / 0-16"
- resolution 0.001mm / 0.00005"
- accuracy 4.5μm
- data output Yes
- measuring force 0.75 - 1.5N
- data storage No
- max permissible errors 4.5μm
- repeatability 2μm
- frontal squareness deviation 10μm
- power supply 240v
- mass 21kg
- battery Yes
- autonomy Up To 20 hours
- drive method Manual
- power supply 240v
- suspension Air cushion
- multiple references Max 9
- tolerances Yes
- preset function Yes
- repeatability on bore 4μm
- repeatability on plane 2μm
- fine adjustment Optional
- dust cover Optional
- setting master Yes
- min max delta Yes
- brand Trimos
The new V4+ redefines precision and functionality by seamlessly combining the mechanical excellence of the V4 with the advanced interface and innovative capabilities of advanced height gauges. This design delivers exceptional performance, making it an efficient and cost-effective alternative to traditional 2D height gauges, while ensuring unmatched performance and user experience.
Engineered with Swiss precision, the V4+ offers robust mechanical stability and integrates a smooth air cushion system for effortless movement on the measuring table. Its advanced capabilities include essential measurement functions such as distances, diameters, and center distances, ensuring versatility and ease of use for both simple and complex tasks.
Robust Mechanical Design
Supports long and heavy probes up to 400 mm with exceptional repeatability.
Dynamic graphical feedback
Real-time display of measurement progress and results, ensuring clarity and precision at every step.
Smart touch navigation
Intuitive menu structures and responsive touch controls make operation straightforward and efficient, reducing training time.
Integrated 2-coordinate measurement
Intuitive 2D visualization of parts, showing measurement results instantly.
Integrated measurement programs
Customizable programs simplify complex measurements, saving time and minimizing errors.
Comprehensive data connectivity
USB, RS232, and Wireless options for easy data export, integration, and analysis across systems.
These features are designed to deliver unparalleled measurement accuracy and streamline operations, making the V4+ a top choice for professionals seeking innovation and efficiency in a cost-effective package.
