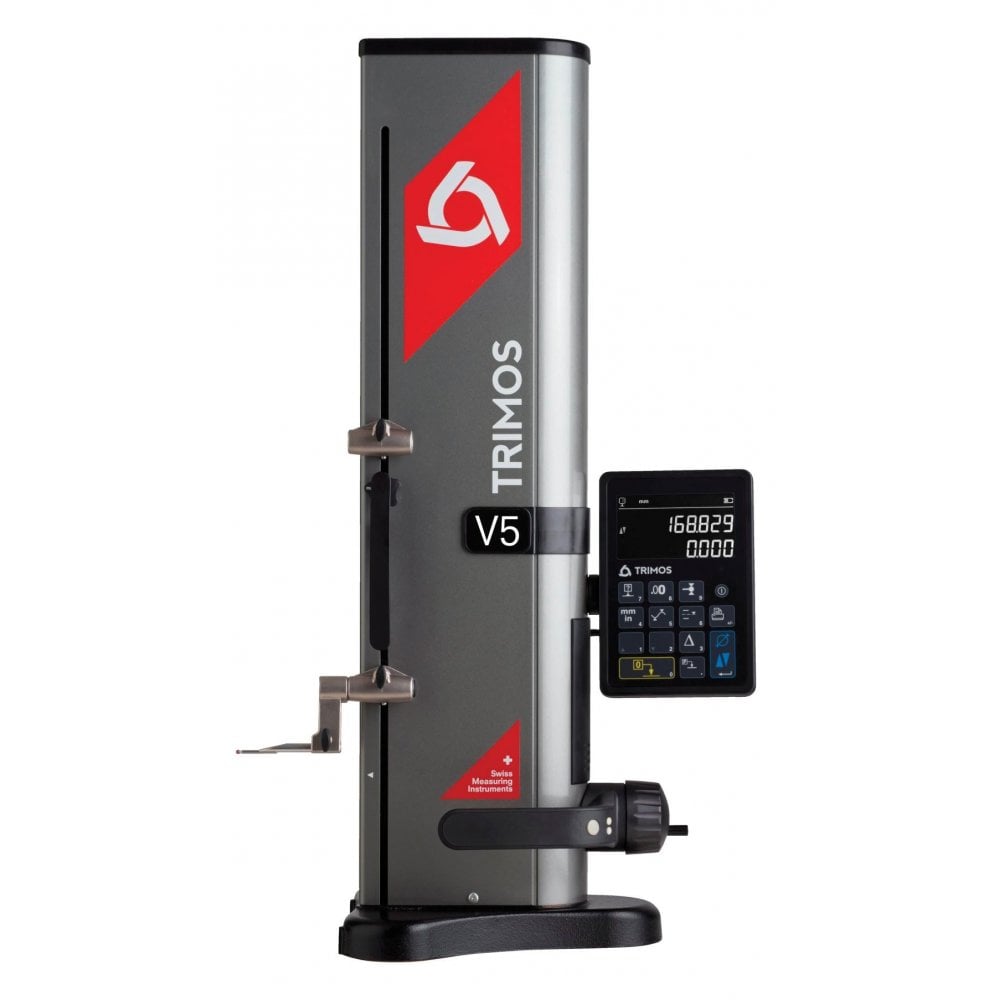

Trimos 20-V5-400 Digital Height Gauge V5, Range 0 - 407mm / 0 - 16", Manual or Motorised with Air Cushion
SKU:Code: 20-V5-400
Possible alternatives
Height Gauge
Mahr 4429630 Height Gauge Digimar 816 CLT 0-350mm / 0-14", Motorised, with Air Cushion, Metric / Imperial
Regular price £4,841.00Sale price £4,841.00 Regular priceExcl. VAT£5,709.00
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- type Measuring
- range 0-407mm / 0-16"
- display type Digital Touch Screen Black Mask
- resolution 0.0005mm / 0.00005"
- accuracy 2.5 +l(mm)/300
- data output Yes
- measuring force 0.75 - 1.5N
- data storage No
- max permissible errors 2.5 +l(mm)/300
- repeatability 2μm
- frontal squareness deviation 5μm
- power supply 240v
- mass 21kg
- stored data No
- stored programs No
- battery Yes
- autonomy Up to 12 hours
- drive method Manual / Motorized
- power supply 240v
- suspension Air cushion
- multiple references Max 9
- programmable No
- tolerances No
- preset function Yes
- repeatability on bore 2μm
- repeatability on plane 2μm
- fine adjustment No
- dust cover Yes
- setting master Yes
- temperature compensation No
- min max delta Yes
- statistics No
- brand Trimos
The height gauge V5 is the descendant of the legendary V+ line, from which thousands of copies have already been sold in workshops all over the world and are universally recognized for their easy use and their high quality.
Trimos was the first to offer vertical measuring instruments on the market more than 50 years ago. The V5 represent a consolidation of know-how accumulated over the years. The very legible display and the user-friendly functions offer exceptional comfort use. But that’s not it: The V5 is equipped with a revolutionary displacement handwheel which offers its user the choice of the displacement mode of the measuring carriage, either manual or motor-driven. Each one of these modes, suffers from no compromise, which means that the user who prefers a manual instrument will not notice a difference with a classic manual instrument and the same applies to the motor-driven displacement. This innovation avoids having to make a difficult choice during the purchase and can accommodate multiple potential users with the same instrument.

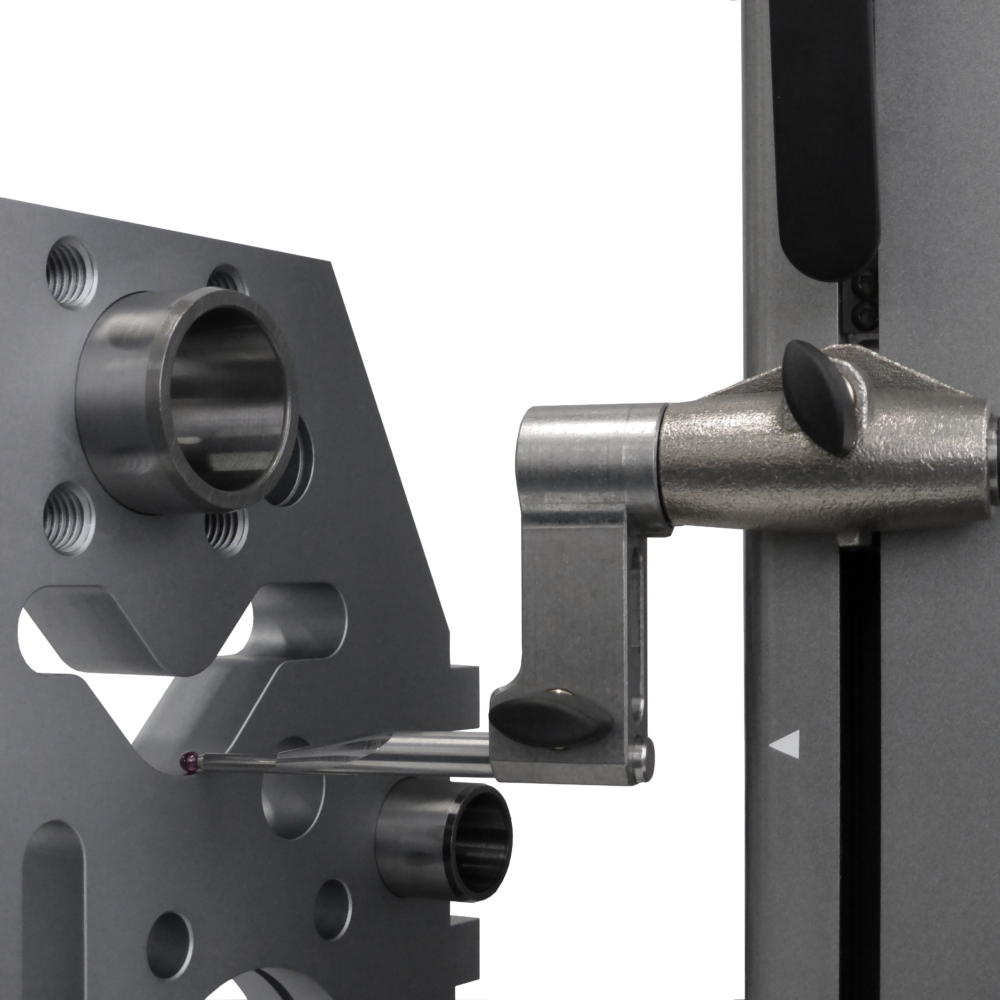

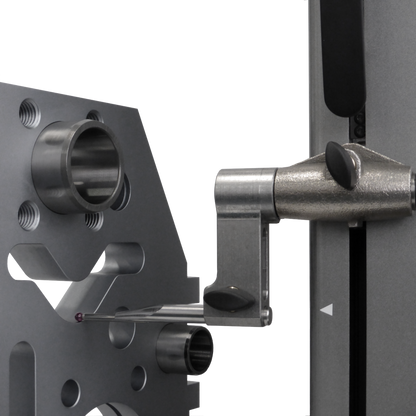

The design of the V5 with its side probe holders revives an old Trimos tradition: They enable measuring with long, robust probes guaranteeing an excellent repeatability.
- Extremely easy to use
- Electronically adjustable measuring force
- Manual or motor-driven displacement
- Standard probes up to 400 mm
- Vast range of accessories
- All adjustments possible without tools
- RS232 et USB interfaces
- Wireless data transfer (optional)
The V5 is equipped with a revolutionary displacement hand wheel which offers its user the choice of the displacement mode of the measuring carriage, either manual or motor-driven within the same gauge. Manufactured in their entirety in Switzerland, they will guarantee a robust, precise and reliable product. The display unit provides functions that are directly accessible and depicted with symbols easy to understand.
This allows for easy and quick handling even by unqualified personnel. The large 2-line Black Mask display offers an exceptional contrast in all lighting conditions, a unique characteristic on the market, and is equipped with a second probe holder, and air cushion for easy movement around the measuring table.
