- type Measuring
- range 0-1110mm / 0-43"
- display type Digital Touch Screen Black Mask
- resolution 0.0001mm / 0.000005"
- accuracy 2 +l(mm)/400
- data output Yes
- measuring force 0.75 - 1.5N
- data storage No
- max permissible errors 2 +l(mm)/400
- repeatability 1μm
- frontal squareness deviation 11μm
- power supply 240v
- mass 33kg
- stored data No
- stored programs No
- battery Yes
- autonomy Up to 12 hours
- drive method Manual / Motorized
- power supply 240v
- suspension Air cushion
- multiple references Max 9
- programmable No
- tolerances No
- preset function Yes
- repeatability on bore 2μm
- repeatability on plane 1μm
- fine adjustment No
- dust cover Yes
- setting master Yes
- temperature compensation Yes
- min max delta Yes
- statistics No

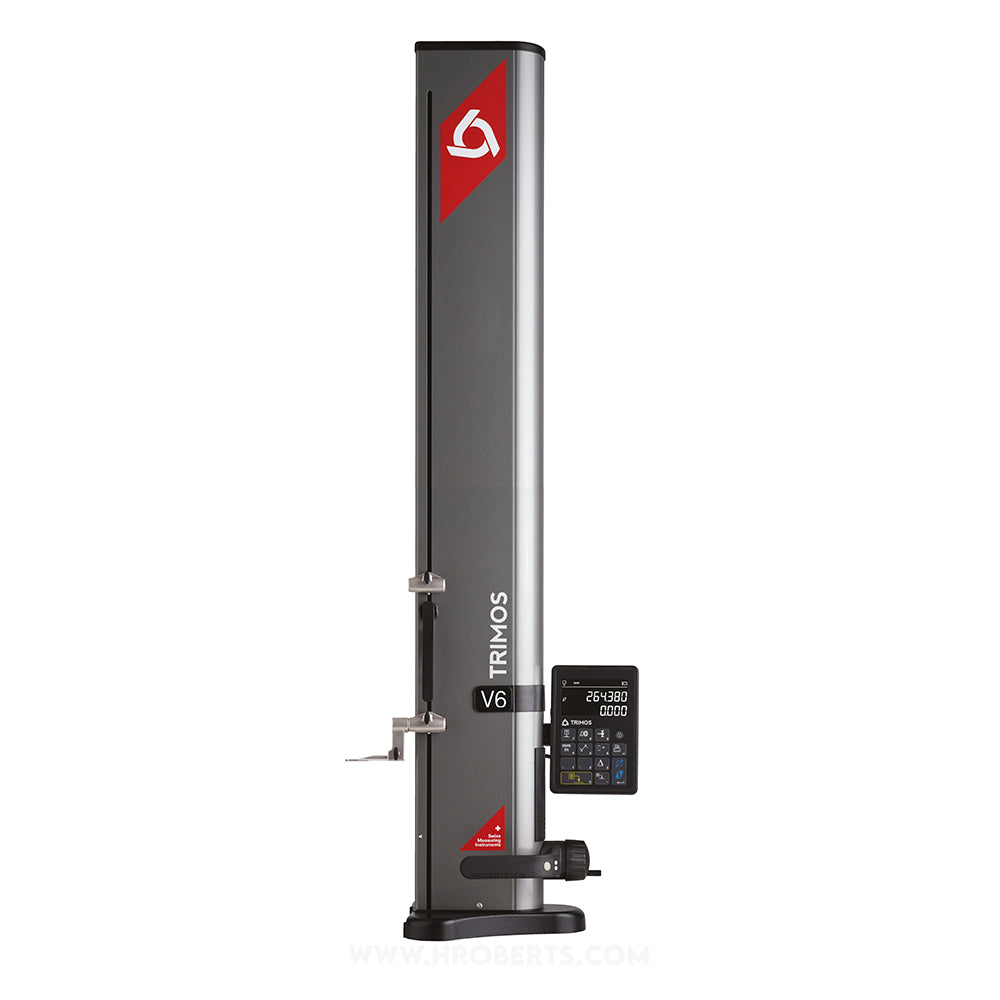

The V6 offers a greater accuracy to its V5 companion, as well as offering the use of an electronic perpendicularity probe for measuring squareness. Equipped with a revolutionary displacement hand wheel which offers its user the choice of the displacement mode of the measuring carriage, either manual or motor-driven within the same gauge. Manufactured in their entirety in Switzerland, they will guarantee a robust, precise and reliable product. The display unit provides functions that are directly accessible and depicted with symbols easy to understand.
This allows for easy and quick handling even by unqualified personnel. The large 2-line Black Mask display offers an exceptional contrast in all lighting conditions, a unique characteristic on the market, and is equipped with a second probe holder, and air cushion for easy movement around the measuring table.
