Trimos

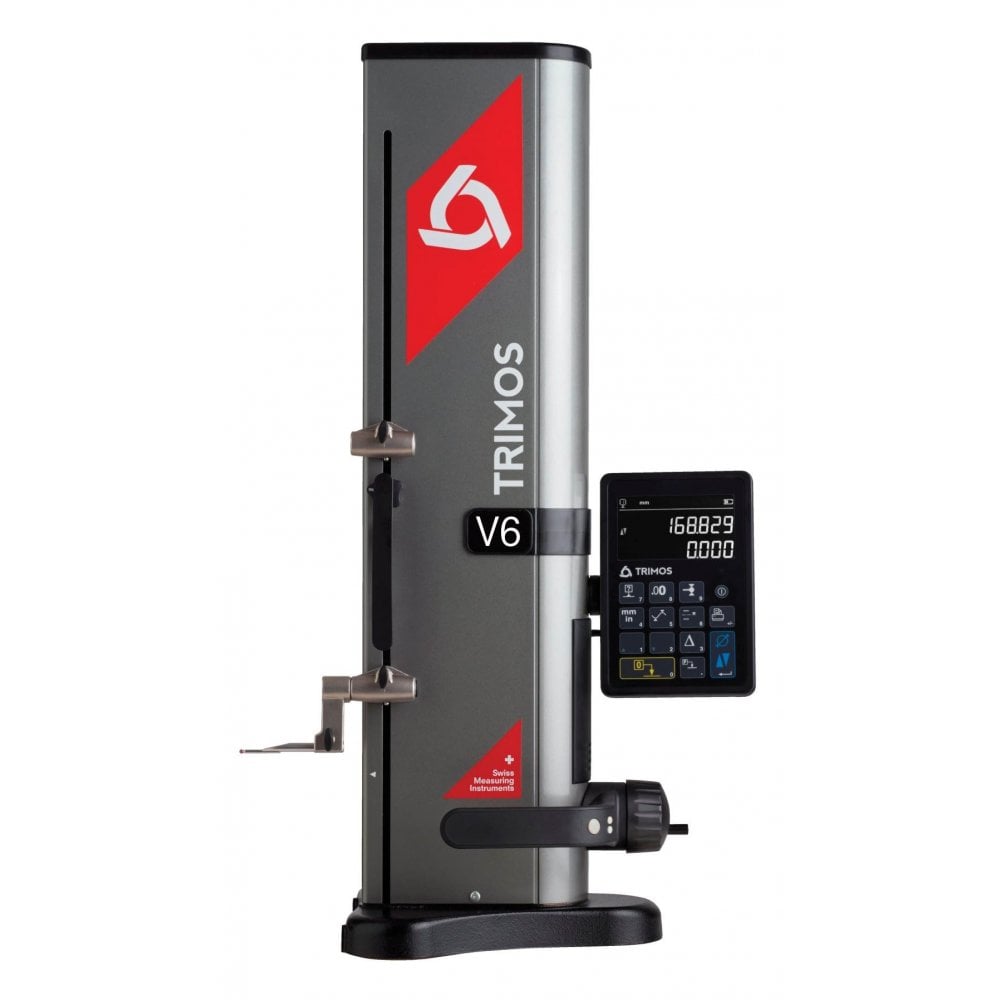

20-V6-400 Digital Height Gauge V6 Plus Motorised, Range 0 - 407mm / 0 - 16" with Extension 0 - 719mm / 0 - 28", Resolution 0.01mm, 0.001mm / 0.0005", 0.00005" without Air Cushion
SKU:Code: 20-V6-400
Sale
Sold out
Regular price
£6,761.63
Sale
Sold out
Sale price
£6,761.63
Regular price
£6,935.00
Excl. VAT
V6 Series height gauge with high accuracy, manual and motorised displacement, air cushion and optional perpendicularity measurement.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Measuring
- range 0-407mm / 0-16"
- display type Digital Touch Screen Black Mask
- resolution 0.0001mm / 0.000005"
- accuracy 2 +l(mm)/400
- data output Yes
- measuring force 0.75 - 1.5N
- data storage No
- max permissible errors 2 +l(mm)/400
- repeatability 1μm
- frontal squareness deviation 5μm
- power supply 240v
- mass 21kg
- stored data No
- stored programs No
- battery Yes
- autonomy Up to 12 hours
- drive method Manual / Motorized
- power supply 240v
- suspension Air cushion
- multiple references Max 9
- programmable No
- tolerances No
- preset function Yes
- repeatability on bore 2μm
- repeatability on plane 1μm
- fine adjustment No
- dust cover Yes
- setting master Yes
- temperature compensation Yes
- min max delta Yes
- statistics No
