Trimos

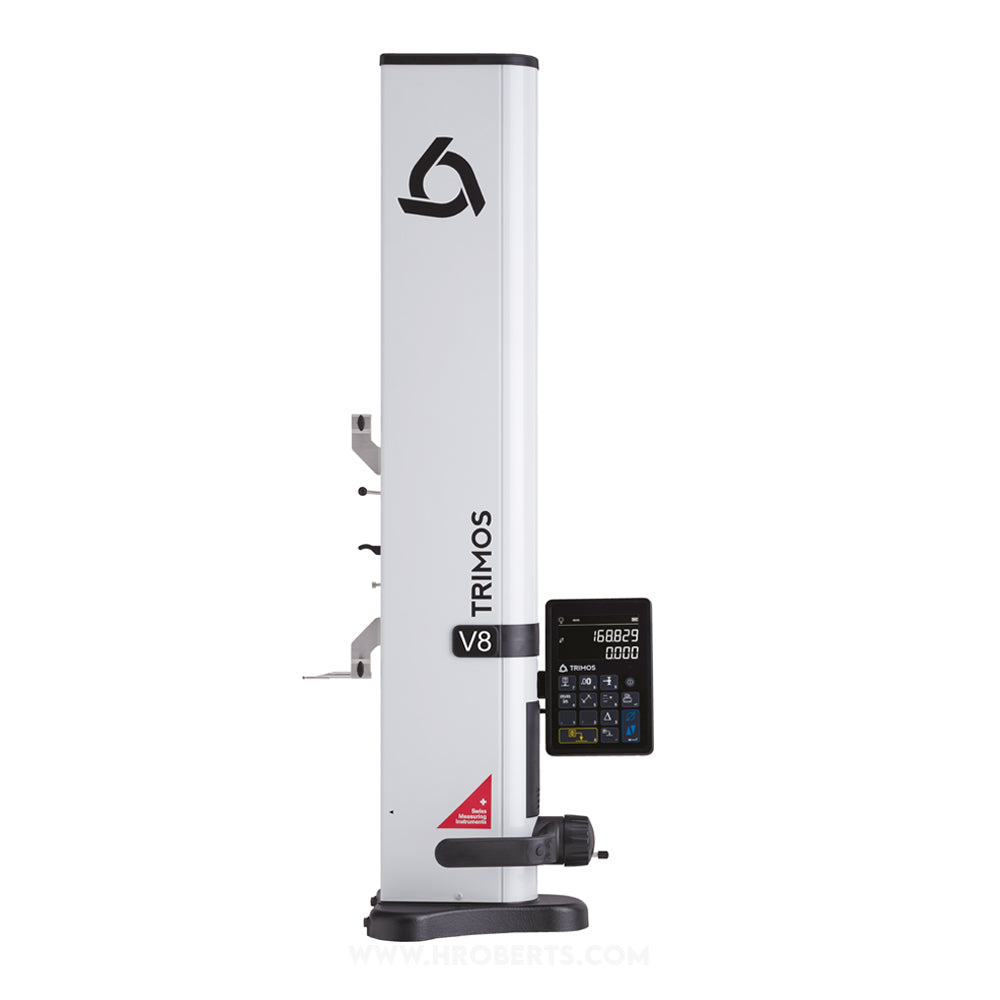

20-V8-700 Digital Height Gauge V8 Range 0 - 710mm / 0 - 28" with Extension 0 - 1028mm / 0 - 40", Resolution 0.0001mm / 0.00001" with Air Cushion

SKU:Code: 20-V8-700

Item priced on application.

Request a Price
V8 series high accuracy height gauge with fine adjustment
  • The UKs Leading Metrology Distributor

  • Trusted by the biggest companies in the UK

  • Need more information? Ask a question or contact us.

View full details
Specification
  • type Measuring
  • range 0-711mm / 0-28"
  • display type Digital Touch Screen Black Mask
  • resolution 0.0001mm / 0.000005"
  • accuracy 1.2 +l(mm)/1000
  • data output Yes
  • measuring force 0.75 - 1.5N
  • data storage No
  • max permissible errors 1.2 +l(mm)/1000
  • repeatability 0.4μm
  • frontal squareness deviation 8μm
  • power supply 240v
  • mass 24kg
  • stored data No
  • stored programs No
  • battery Yes
  • autonomy Up to 12 hours
  • drive method Manual
  • power supply 240v
  • suspension Air cushion
  • multiple references Max 9
  • programmable No
  • tolerances No
  • preset function Yes
  • repeatability on bore 1μm
  • repeatability on plane 0.4μm
  • fine adjustment Standard
  • dust cover Yes
  • setting master Yes
  • temperature compensation Yes
  • min max delta Yes
  • statistics No
description
Trimos V8

The V8 High accuracy extreme precision height gauge is equipped with a manual displacement hand wheel with fine adjustment. Manufactured in their entirety in Switzerland, they will guarantee a robust, precise and reliable product. The display unit provides functions that are directly accessible and depicted with symbols easy to understand.
This allows for easy and quick handling even by unqualified personnel. The large 2-line Black Mask display offers an exceptional contrast in all lighting conditions, a unique characteristic on the market, and is equipped with a second probe holder, and air cushion for easy movement around the measuring table.
