With its Pasty initial consistency (modelling clay), the KE-AD can be applied manually on vertical or overhead surfaces.
The final impression is Semi-Flexible (60 Shore A hardness), and has no strong capacity to be deformed ans strectched. It only accepts 5% Removal Constraint. The KE-AD is recommended for taking impressions of external simple forms on parts of large or medium sizes. It can also be used to create protective caps against surface treatments.
The KE-AD is suitable for the following applications :
- External impressions of simple forms
Because the impression is soft and very flexible, it is controlled without contact, using a visual measuring instrument (profile projector, microscope, optical measuring instrument...).
But the best way to control it is to use the Plastiform® Twin Blade Cutter to create a slice, and measure the dimensions of the slice on a profile projector.
Curing Time : 8 minutes
Removal Constraint : 5 %
Elongation to Failure : 17 %
|Curing Time||8 Mins|
|Final Hardness Shore A||60|
|Suitable for Contact Measuring||Yes|
|Suitable for use with Double Blade Cutter||Yes|

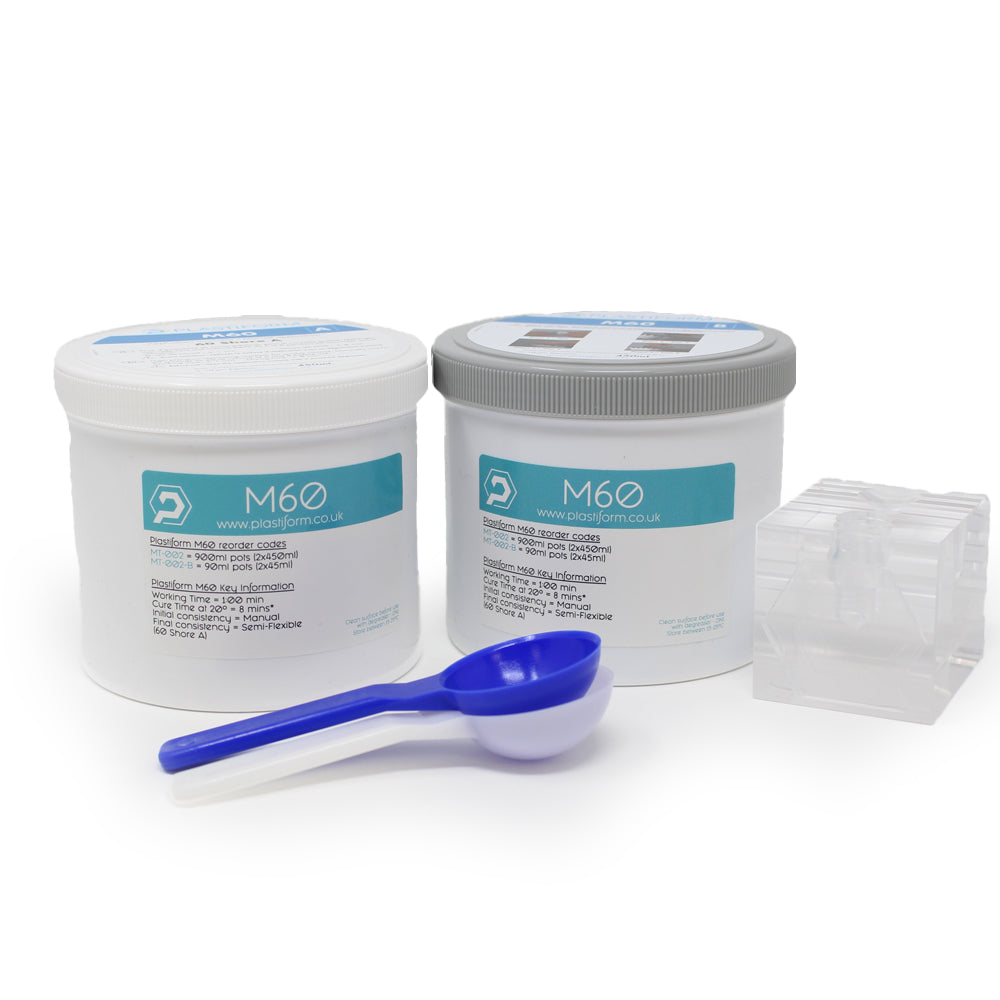

Plastiform Product Code MT-002
Initial Consistency : Malleable
Final Consistency : Semi-Flexible
Hardness : 60 Shore A
Accuracy of the impression : µm
Cut with Twin Blade Cutter : Yes
