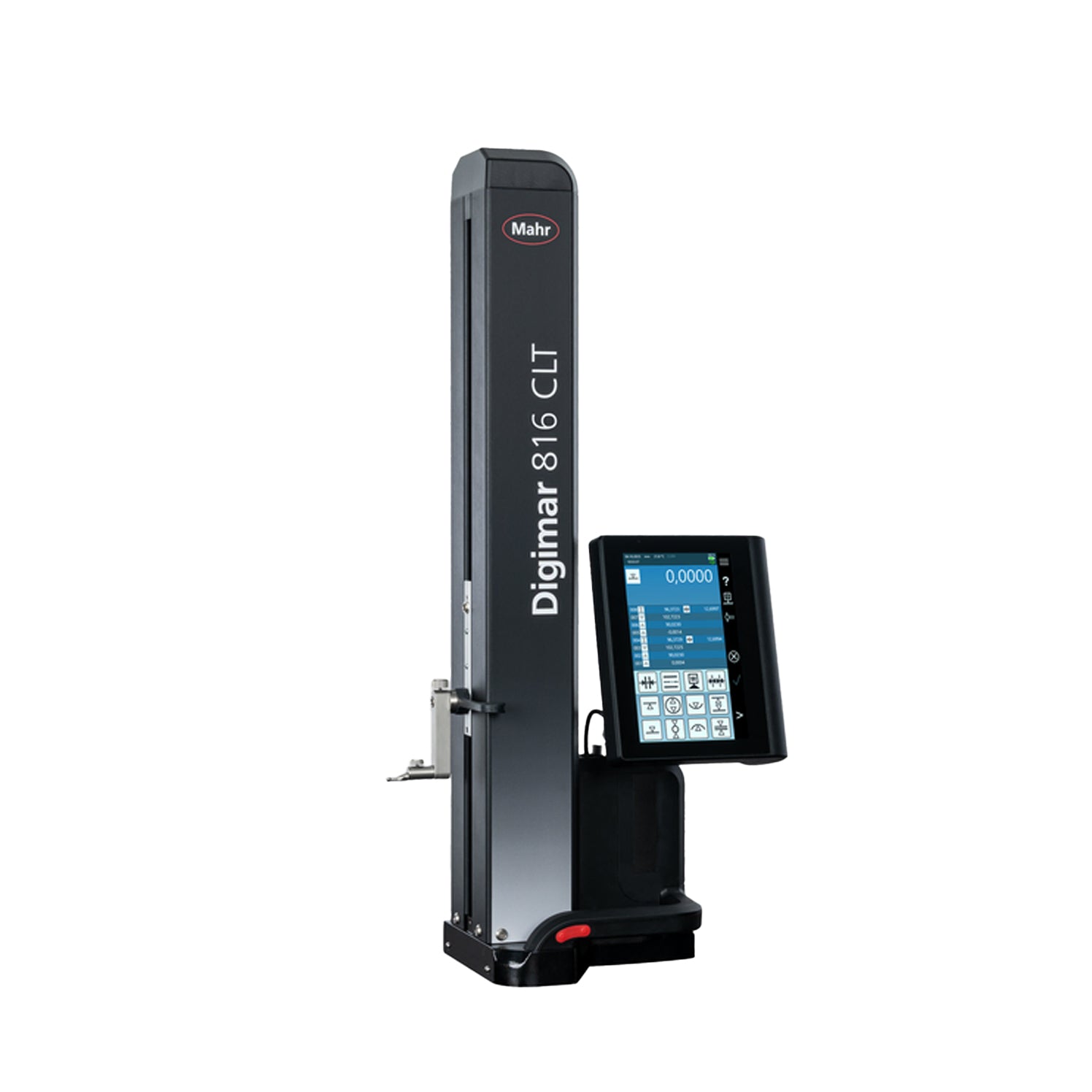

Mahr 4429631 Height Gauge Digimar 816 CLT 0-600mm / 0-24", Motorised, with Air Cushion, Metric / Imperial

Code: 4429631

Sale Sold out £5,309.00
Save: 15% Sold out £5,309.00 £6,247.00
Excl. VAT
Excellent measuring accuracy and reliability due to the optical incremental measuring system with the double reader head • Dynamic probe system enabling high repeatability • Air bearing system for light and smooth movement • Measuring head guided in precision ball bearings

Possible alternatives

  • Trimos 20-V5-700 Digital Height Gauge V5, Range 0 - 711mm / 0 - 28", Manual or Motorised with Air Cushion

    Height Gauge

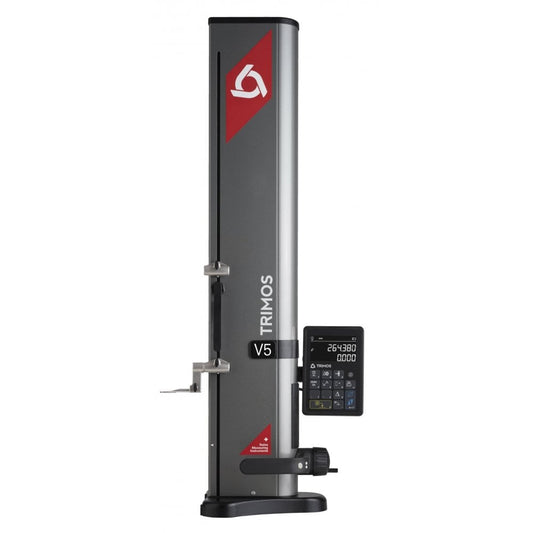

    Trimos 20-V5-700 Digital Height Gauge V5, Range 0 - 711mm / 0 - 28", Manual or Motorised with Air Cushion

    £6,264.38
    £6,264.38 £6,425.00
    Excl. VAT
    View product

Request a Quote

Add to Compare

  • The UKs Leading Metrology Distributor

  • Trusted by the biggest companies in the UK

  • Need more information? Ask a question or contact us.
View full details
Specification
  • type Measuring
  • range 0-600mm / 24"
  • resolution 0.001mm 0.0001mm / 0.00005" 0.000005"
  • power supply 240v
  • battery Yes
  • power supply 240v
  • suspension Yes
  • setting master Yes
  • brand Mahr
description

Contacting from below/above, Bar width or groove spacing incl. bar or groove center, Bore or shaft diameter incl. bore or shaft center, Reversal point bores (top or bottom), Reversal point shaft (top or bottom), Calculate distances or symmetry, Dynamic measurement functions, Right angle measurement, Straightness measurement, Measurement in 1D mode, Measurement programs, Measurement data processing
