Trimos

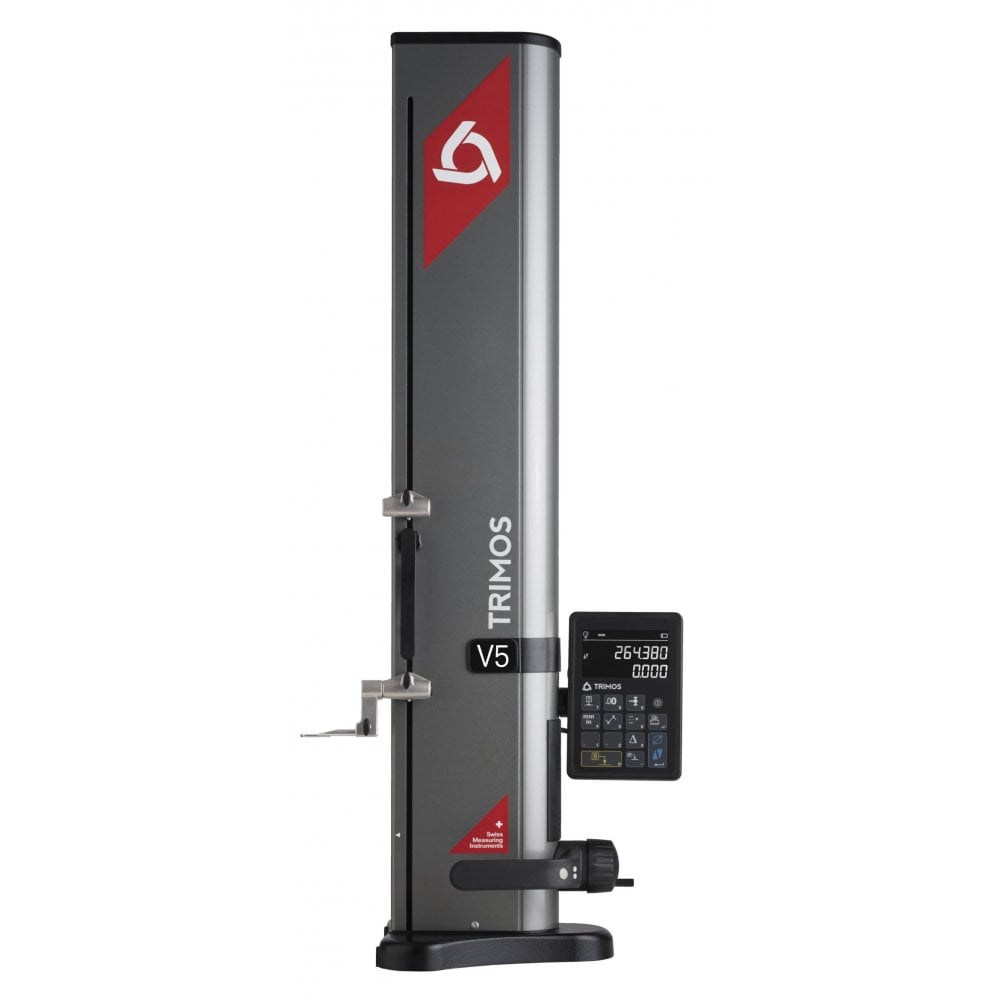

20-V5-700 Digital Height Gauge V5 Plus Motorised, Range 0 - 711mm / 0 - 28" with Extension 0 - 1023mm / 0 - 40", Resolution 0.01mm, 0.001mm / 0.0005", 0.00005" without Air Cushion

SKU:Code: 20-V5-700

Sale Sold out Regular price £6,264.38
Sale Sold out Sale price £6,264.38 Regular price £6,425.00
Excl. VAT
V5 Series Height gauge with manual and motorised displacement and air cushion
  • The UKs Leading Metrology Distributor

  • Trusted by the biggest companies in the UK

  • Need more information? Ask a question or contact us.

View full details
Specification
  • type Measuring
  • range 0-711mm / 0-28"
  • display type Digital Touch Screen Black Mask
  • resolution 0.0005mm / 0.00005"
  • accuracy 2.5 +l(mm)/300
  • data output Yes
  • measuring force 0.75 - 1.5N
  • data storage No
  • max permissible errors 2.5 +l(mm)/300
  • repeatability 2μm
  • frontal squareness deviation 8μm
  • power supply 240v
  • mass 24kg
  • stored data No
  • stored programs No
  • battery Yes
  • autonomy Up to 12 hours
  • drive method Manual / Motorized
  • power supply 240v
  • suspension Air cushion
  • multiple references Max 9
  • programmable No
  • tolerances No
  • preset function Yes
  • repeatability on bore 2μm
  • repeatability on plane 2μm
  • fine adjustment No
  • dust cover Yes
  • setting master Yes
  • temperature compensation No
  • min max delta Yes
  • statistics No
description
Trimos V5 and V6


The V5 is equipped with a revolutionary displacement hand wheel which offers its user the choice of the displacement mode of the measuring carriage, either manual or motor-driven within the same gauge. Manufactured in their entirety in Switzerland, they will guarantee a robust, precise and reliable product. The display unit provides functions that are directly accessible and depicted with symbols easy to understand.


This allows for easy and quick handling even by unqualified personnel. The large 2-line Black Mask display offers an exceptional contrast in all lighting conditions, a unique characteristic on the market, and is equipped with a second probe holder, and air cushion for easy movement around the measuring table.
