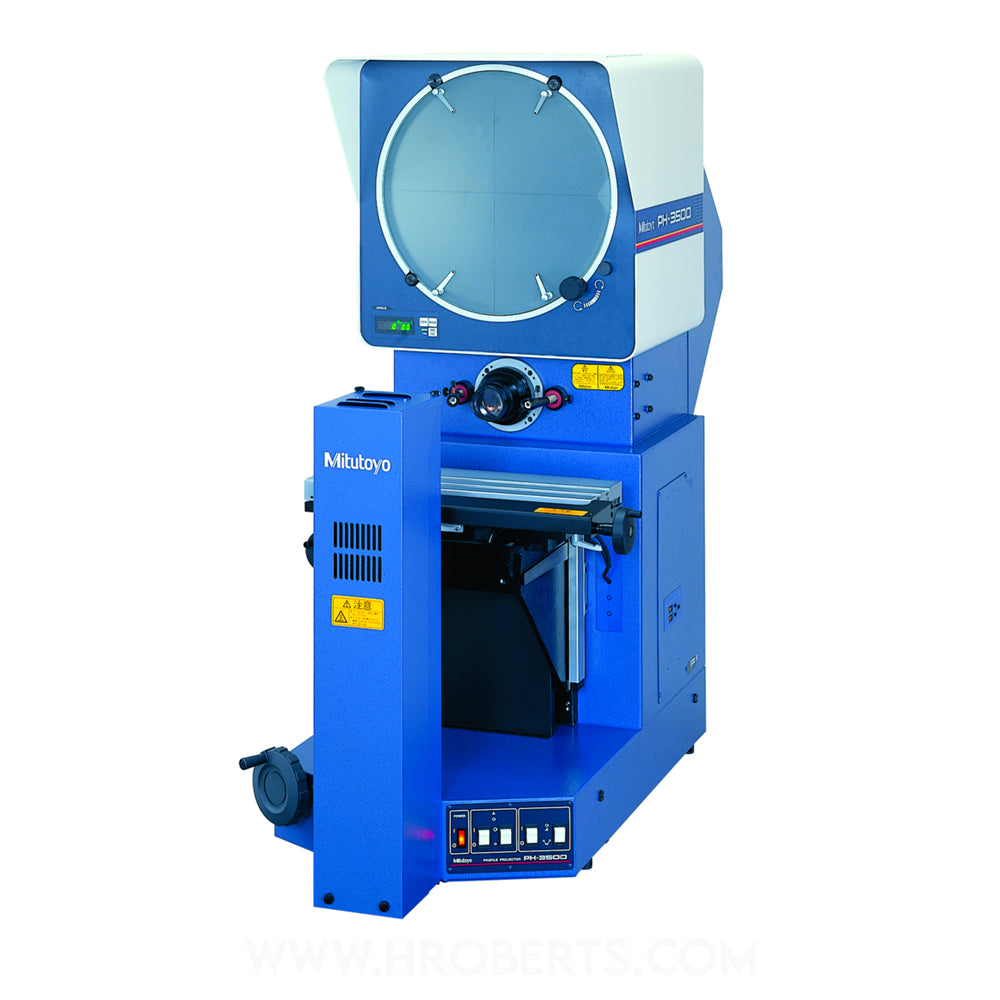

Mitutoyo 172-868E PH-3515F Measuring Projector XY Stage Travel Range 254 x 152mm
SKU:Code: 172-868E
This item is no longer available or has been discontinued.
Our recommended alternative
Profile Projector
Mitutoyo 172-868E PH-3515F Measuring Projector
Regular price £10,611.00Sale price £10,611.00 Regular priceExcl. VAT£11,790.00
Bench-top model based on a horizontal optical system.
Need more information? Ask a question or contact us.
Specification
Specification
- brand Mitutoyo
description
description
Bench-top model based on a horizontal optical system. Suitable for thread pitch measurements – blurred or distorted images will not be produced when workpiece is angled. Erect image on the day-bright screen. 353 mm diameter protractor screen with cross hairs and staggered lines for easy alignment. Digital angle measurement to 1' or 0.01º. Heavy-duty XY stage incorporates linear scales for fast, accurate measurement.
