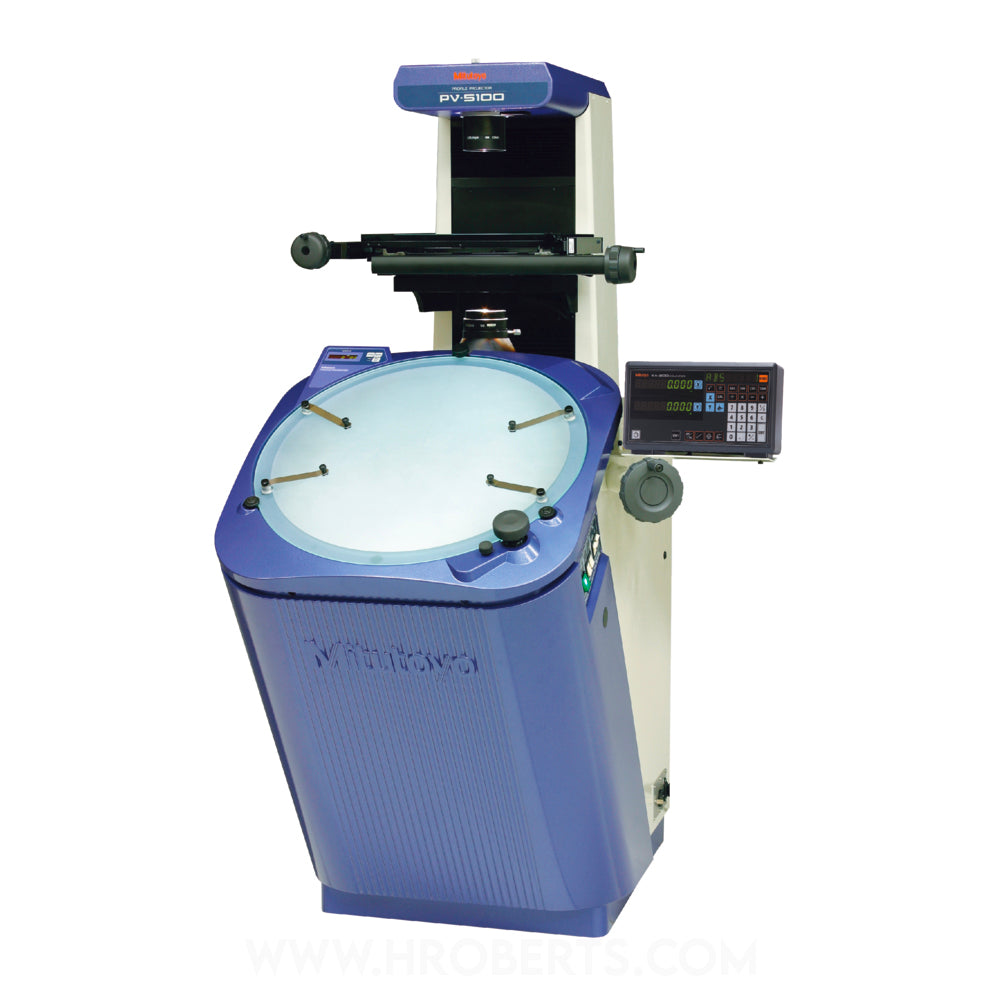

Mitutoyo 304-919E PV-5110 Measuring Projector XY Stage Travel Range 200 x 100mm
SKU:Code: 304-919E
This item is no longer available or has been discontinued.
Floor-standing model using overhead illumination which allows a large, conveniently positioned screen so that projected images can be easily traced or compared with a template.
Need more information? Ask a question or contact us.
Specification
Specification
- brand Mitutoyo
description
description
Floor-standing model using overhead illumination which allows a large, conveniently positioned screen so that projected images can be easily traced or compared with a template. Digital readout protractor screen (including zero-setting, ABS/INC coordinate switching functions) for easy and error-free angle measurement. The optional oblique surface illumination unit (172-422) provides clear and bright images, allowing easy inspection of non-reflective workpieces such as plastic parts or printed materials.
