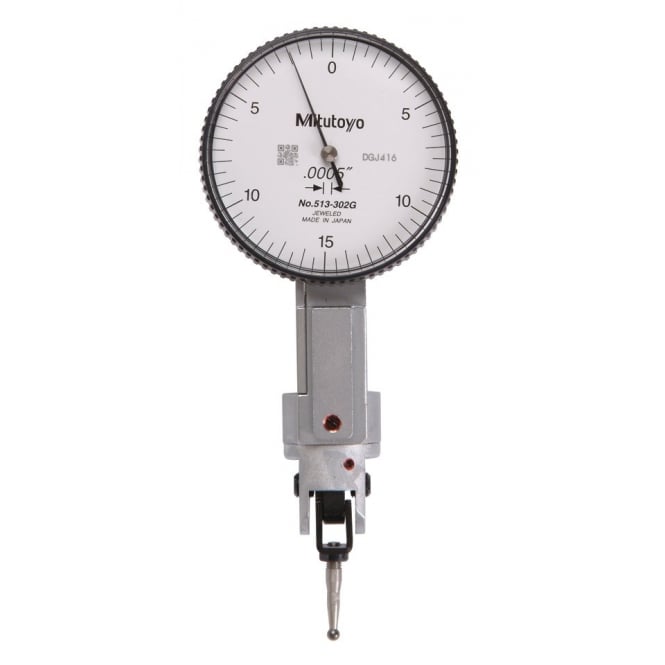

Mitutoyo 513-302GT Lever Dial Indicator Universal Type, Graduation 0.0005", Range 0.03", Scale 0-15-0, Stylus Length 6.5mm, Bezel Diameter 40mm
SKU:Code: 513-302GT
This item is no longer available or has been discontinued.
Our recommended alternative
Dial Test Indicator
Mitutoyo 513-302-10T Dial Test Indicator
Regular price £319.50Sale price £319.50 Regular priceExcl. VAT£426.00
Full Set: Supplied with box, 902805 3/8", 902802 0.157" dia stem, 102824 1mm, 102825 2mm, 102826 3mm dia stylus, 900322 swivel clamp, Spanner 102037 and 900306 holding bar
Need more information? Ask a question or contact us.
Specification
Specification
- type Horizontal Type
- range 0.030"
- display type Non-Digital
- graduations 0.0005"
- bezel dia 40mm
- measuring force 0.3 N or Less
- measuring units Imperial
- scale 0-15-0
- contact point thread M1.4x0.30
- repeatability limit ±0.0003"
- brand Mitutoyo
description
description
Universal application to all directions. (Not only the direction of the contact point, but also the direction of measurement itself can be adjusted 360 degrees without moving the indicator.)
