Mitutoyo

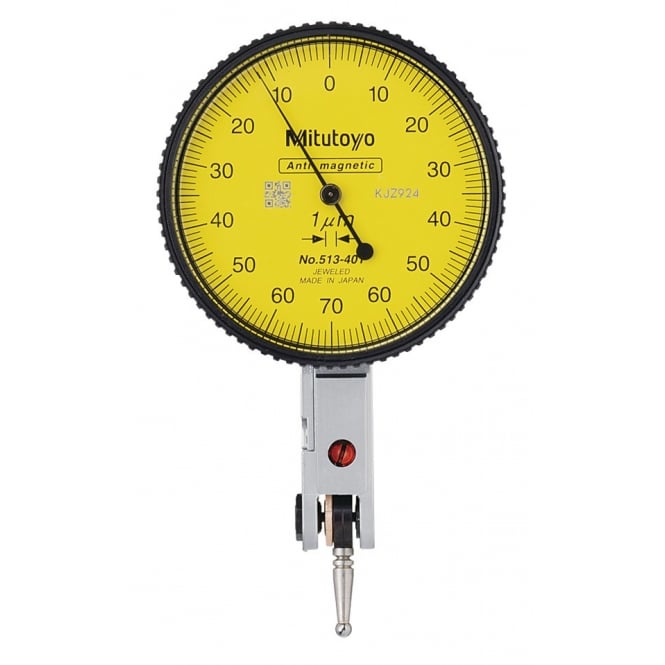

513-401E Lever Dial Indicator Horizontal Type, Graduation 0.001mm, Range 0.14mm, Scale 0-70-0, Stylus Length 11.2mm, Bezel Diameter 40mm

SKU:Code: 513-401E

This item is no longer available or has been discontinued.

Basic Set: Supplied with box, 902804 8mm dia stem and 103010 stylus 2mm dia
View full details
Specification
  • type Horizontal Type
  • range 0.14mm
  • display type Non-Digital
  • graduations 0.001mm
  • accuracy 3 µm
  • bezel dia 40mm
  • measuring force 0.3 N or Less
  • measuring units Metric
  • scale 0-70-0
  • contact point thread M1.7x0.35
description

A Mitutoyo versatile anti-magnetic type lever indicator (or dial test indicator, DTI) suited to alignment operations on machine tools and similar applications. This indicator automatically adapts to the required measuring direction on contact, and the jewelled movement provides lowest friction and stiction for smooth and precise operation. Supplied with a basic set of mounting accessories.
